Specifications
dimension(l*w*h) :
710*480*580
MOQ :
1
weight (kg) :
100
power(w) :
2000
voltage :
220 V
Price :
$1,000
Place of Origin :
Guangdong, China
machine type :
Dual-Target Magnetron Sputtering Coater
Brand Name :
LONROY
warranty :
1 Year
Description
Products Description

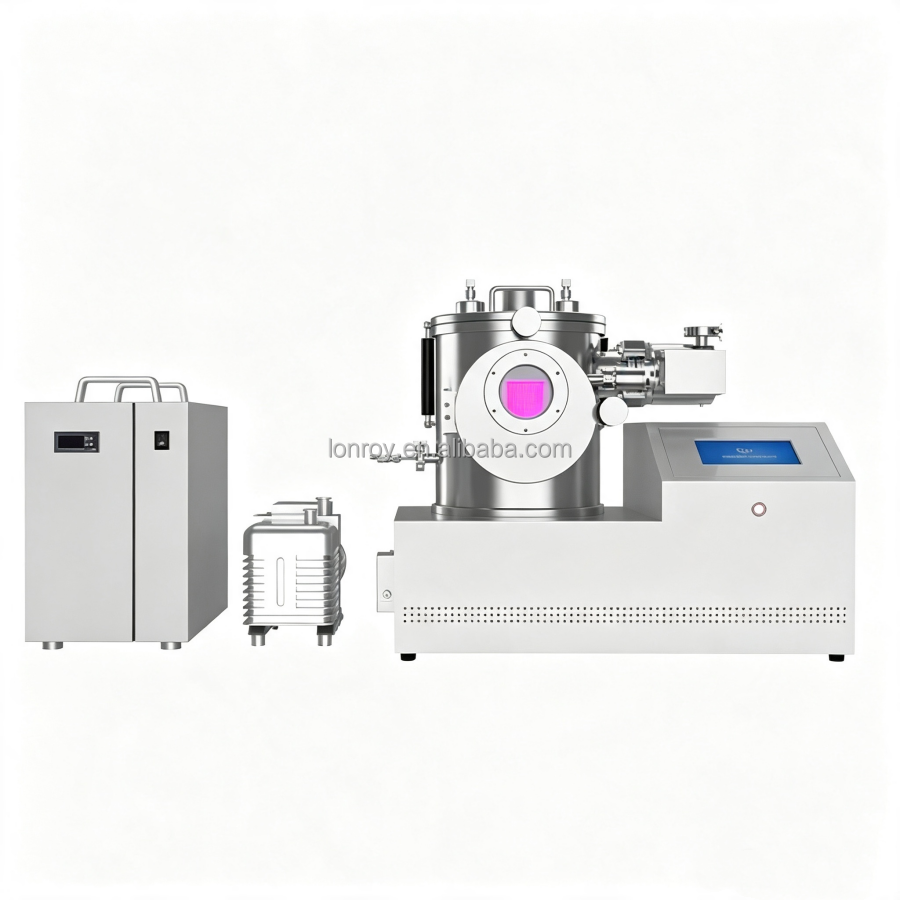

Stainless Steel Chamber Dual-Target Magnetron Sputtering Coater Sputter Coating Tester Magnetic Controlled Deposition System

Brief Introduction This equipment is a dual-target magnetron sputtering coater designed for the deposition of metal thin films. It finds applications in fields such as electronics, optics, and specialized ceramics, and is also suitable for SEM sample preparation in laboratory settings.

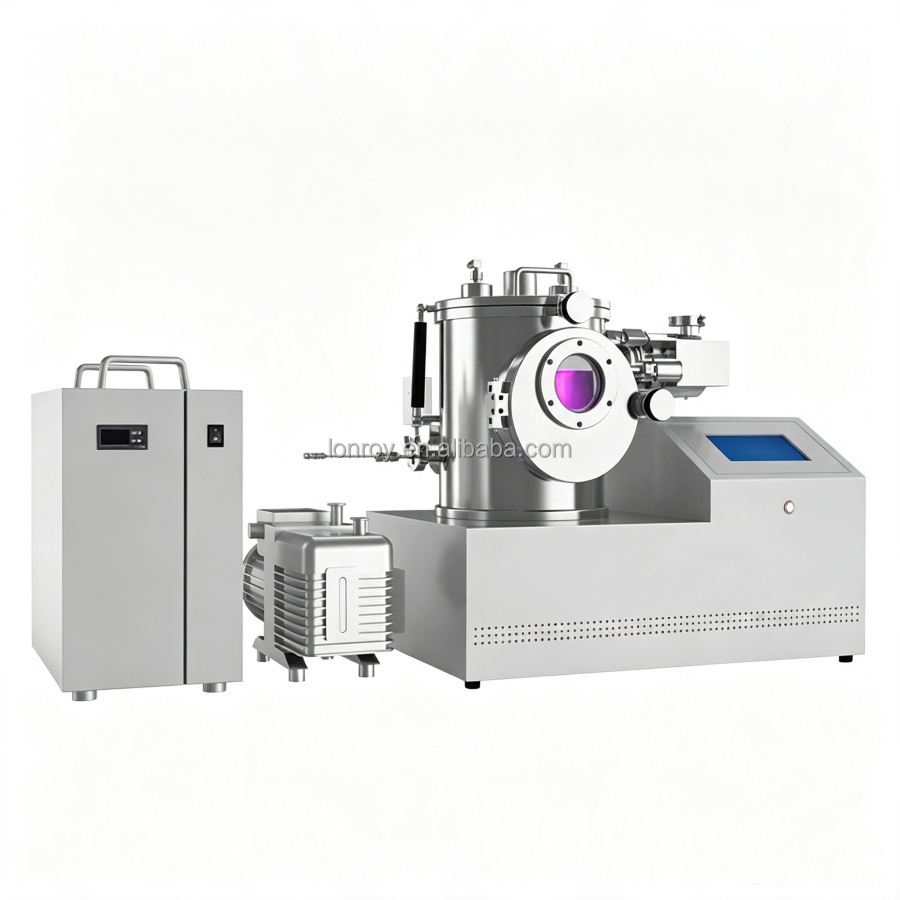

Stainless Steel Chamber Dual-Target Magnetron Sputtering Coater Sputter Coating Tester Magnetic Controlled Deposition System

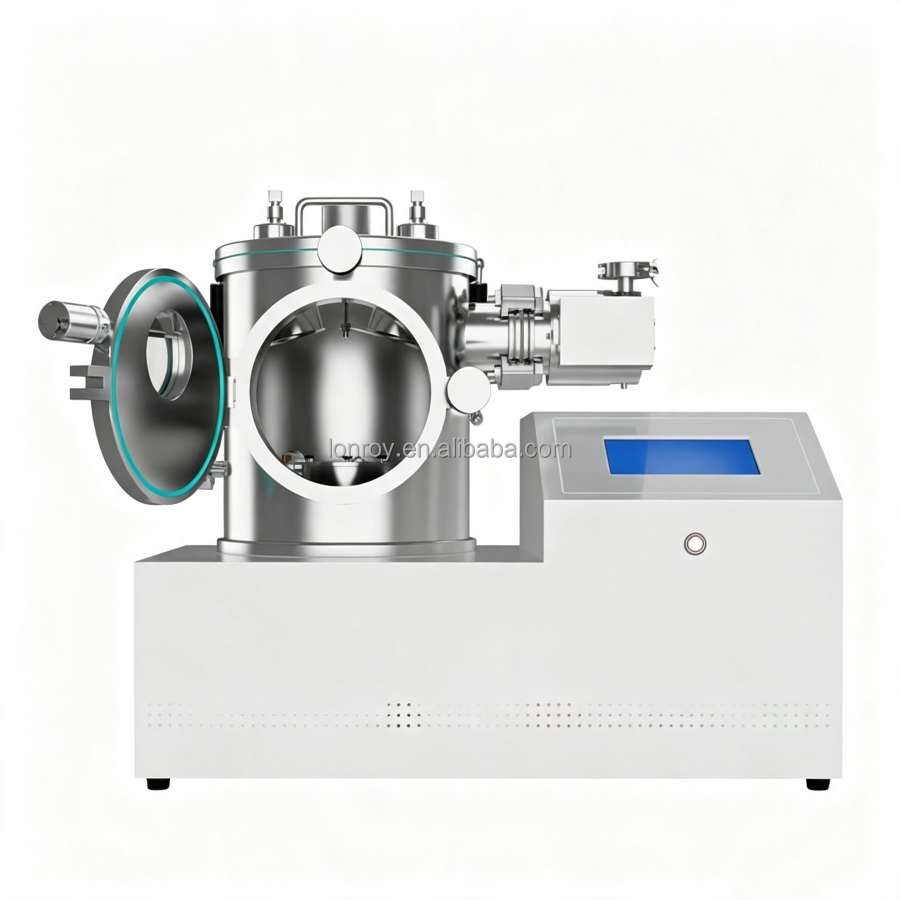

Detailed Introduction This dual-target magnetron sputtering coater is designed for the deposition of metal thin films, serving applications in electronics, optics, and specialized ceramics, as well as laboratory SEM sample preparation. The system features a high-vacuum stainless steel chamber equipped with a quartz viewing window (including a shutter) for easy observation and recording during experiments. The chamber design ensures excellent vacuum performance and a compact footprint, making it ideal for laboratory use. Additionally, the unit is equipped with a rotating, heated sample stage to effectively enhance film uniformity and deposition quality. The system utilizes a modular design with straightforward operational logic and an intuitive interface, ensuring ease of use.
Stainless Steel Chamber Dual-Target Magnetron Sputtering Coater Sputter Coating Tester Magnetic Controlled Deposition System
Applications This device is a dual-target magnetron sputtering coater used for the preparation of metal thin films. It finds applications in electronics, optics, and the fabrication of special ceramics, as well as in laboratory SEM sample preparation.
Stainless Steel Chamber Dual-Target Magnetron Sputtering Coater Sputter Coating Tester Magnetic Controlled Deposition System
Stainless Steel Chamber Dual-Target Magnetron Sputtering Coater Sputter Coating Tester Magnetic Controlled Deposition System
Stainless Steel Chamber Dual-Target Magnetron Sputtering Coater Sputter Coating Tester Magnetic Controlled Deposition System
Stainless Steel Chamber Dual-Target Magnetron Sputtering Coater Sputter Coating Tester Magnetic Controlled Deposition System
Stainless Steel Chamber Dual-Target Magnetron Sputtering Coater Sputter Coating Tester Magnetic Controlled Deposition System
Specification
Technical Specifications
Category
Item
Specification
Product Name
Benchtop Dual-Target Magnetron Sputtering Coater with Stainless Steel Chamber
Model
LR-CK103
Sample Stage
Dimensions
φ100 mm
Adjustable Rotation Speed
≤20 rpm
Magnetron Target Guns
Equipped with two 2-inch magnetron targets; target dimensions: 50.8 mm diameter, ≤3 mm thickness
Vacuum Chamber
Chamber Dimensions
φ273 mm × 280 mm
Observation Window
Front-facing
Chamber Material
304 Stainless Steel
Opening Mechanism
Top lid and front door
Vacuum System
Roughing Pump
Two-stage rotary vane pump
Molecular Pump
High-speed turbomolecular pump
Vacuum Measurement
Compound vacuum gauge
Vacuum Port
ISO63
Exhaust Port
KF16
System Ultimate Vacuum
1.0 × 10⁻⁴ Pa
Power Supply
AC 220V, 50/60 Hz
Pumping Speed
Roughing pump speed: 1.1 L/s
Output Power
DC power supply: 500 W
Other Parameters
Input Voltage
AC 220V, 50 Hz
Total System Power
2 kW
Overall Dimensions
710 × 480 × 580 mm
