Specifications
Place of Origin :
Guangdong, China
Protection Class :
IP57
warranty :
1 Year
Maximum capacity :
1000 kN
Accuracy :
±0.5%
customized support :
OEM, ODM, OBM, Software Reengineering
power :
/
Type :
Testing Machine
Voltage :
220 V, Other
MOQ :
1
Application :
Auto Testing, Lab Testing, Laboratory Testing
Brand Name :
LONROY
Accuracy Class :
High Accuracy
Description

Servo Controlled Manhole Covers Load-bearing Capacity Tester Covers Compression Testing Machine Pressure Testing Equipment

Product Overview

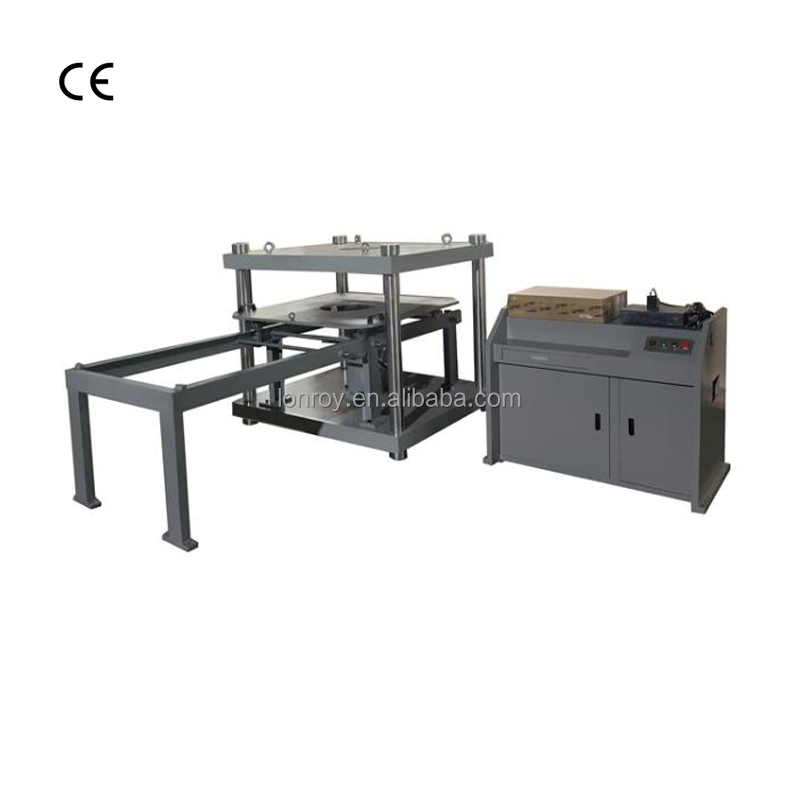

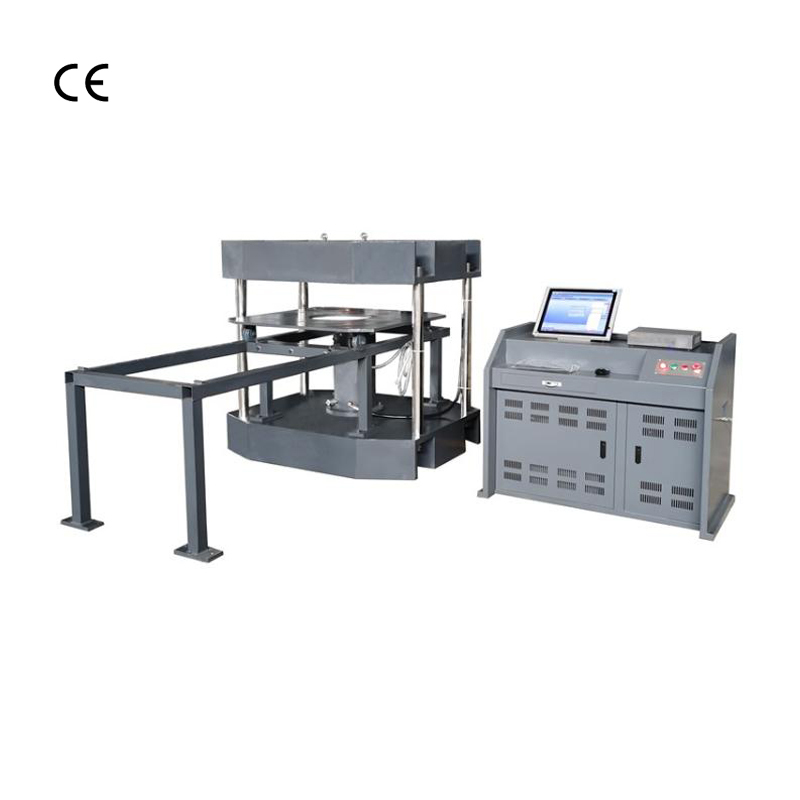

This testing machine is designed to evaluate the load-bearing capacity (specifically residual deformation and test load) of manhole covers made from various materials. It supports closed-loop control modes such as constant-rate loading and constant-rate deformation, and enables the automatic determination of technical performance parameters.

The machine utilizes a hydraulic power source and electro-hydraulic servo control technology, integrated with a computer-based data acquisition and processing system. It comprises four main components: the main testing frame, the hydraulic power source, the measurement and control system, and the testing fixtures. It features real-time display and control of load, time, and test curves, as well as a peak test force hold function. The accuracy of the testing machine exceeds Class 1 standards.

Test Standards

The testing machine and its accessories comply with the requirements of the following standards: GB/T23858-2009, GB/T26537-2011, CJ/T211-2005, CJ/T121-2000, CJ/T3012, CJ/T511-2017, GB/T2611, and GB/T16826.

Servo Controlled Manhole Covers Load-bearing Capacity Tester Covers Compression Testing Machine Pressure Testing Equipment

Technical Parameters

Maximum capacity

1000 kN

Accuracy class

Class 1

Effective measurement range

10%–100% FS

Relative error of deformation indication

±1%

Maximum piston movement speed

120 mm/min

Piston stroke

300 mm

Platen dimensions

Φ356 mm

Oil pump motor power

0.75 kW

Power supply

380 V ± 10 V

Overall dimensions

1400 × 1200 × 1430 mm

Total weight

2600 kg

Servo Controlled Manhole Covers Load-bearing Capacity Tester Covers Compression Testing Machine Pressure Testing EquipmentServo Controlled Manhole Covers Load-bearing Capacity Tester Covers Compression Testing Machine Pressure Testing EquipmentServo Controlled Manhole Covers Load-bearing Capacity Tester Covers Compression Testing Machine Pressure Testing Equipment
