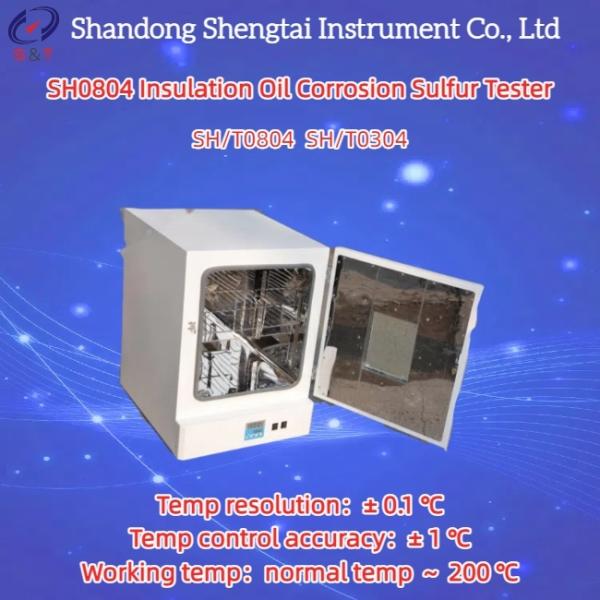

SH0804 Insulation Oil Corrosion Sulfur Tester

The SH0804 electrical insulation oil corrosive sulfur analyzer is designed and manufactured according to the SH/T0804 standard; Test method for detecting corrosive sulfur in mineral insulating oil used in power equipment that affects the operation of electrical equipment.

Performance characteristics

● The surface of the instrument is treated with electrostatic spraying, which is corrosion-resistant and easy to clean

● Mirror stainless steel heating box with transparent observation window for easy operation and circulating drum mode

● Microcomputer temperature control, using PT100 sensor, PID digital display, high temperature control accuracy

● Single dedicated digital timer with time alarm function

Technical Parameter

● Execution standard: SH/T0804 SH/T0304

● Working temperature: normal temperature ～ 200 ℃

● Temperature control accuracy: ± 1 ℃

● Temperature resolution: ± 0.1 ℃

● Timing range: 1 ～ 9999 minutes

● Temperature control method: microcomputer temperature control, using PT100 sensor, PID digital display

● Standard silver test piece: made by cold rolling, 20 × 40 × 0.5mm, purity 99.99

● Standard copper sheet: purity of 99.9%, thickness of 0.125-0.250mm, angle of 60 degrees

● The surface of the instrument is treated with electrostatic spraying, which is corrosion-resistant and easy to clean

● Working power supply: AC220V 50Hz

● Power: 1.5KW

● Instrument size: 450 * 510 * 620mm

● Instrument weight: 17.6kg

● Packaging size: 520 * 620 * 690mm

● Packaging weight: 20kg cardboard box

Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.

Instrument Quality Assurance Certificate

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.

Packaging and Delivery

1. Packaging of goods: standard wooden or cardboard boxes.

2. Internal packaging: Elastic pearl cotton packaging product, hardwood board+strong bandage to fix corners.

Continuous product development may require changes to product specifications and prices without prior notice.
