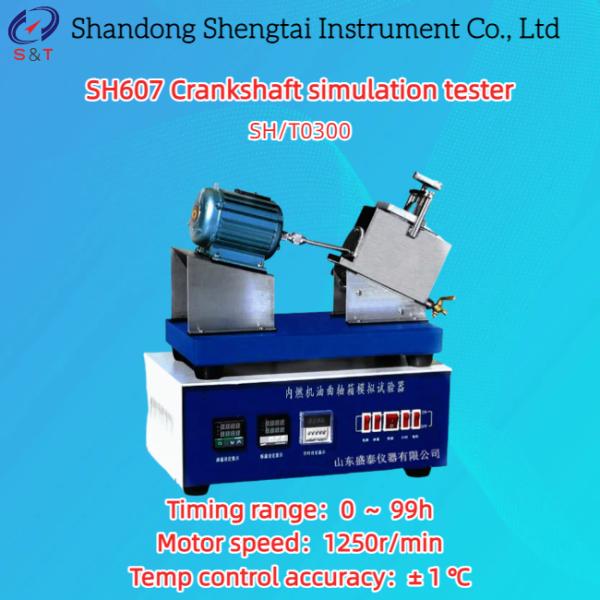

SH607 Crankshaft simulation tester

The SH607 crankshaft simulation tester is designed and manufactured according to the petrochemical industry standard SH/T0300 "Method for Simulating Test of Crankcase". Suitable for evaluating the thermal oxidation stability of additives and internal combustion engine oils containing additives, it is a simulation test method used in scientific research to select composite formulations of detergents, antioxidants, and oil products.

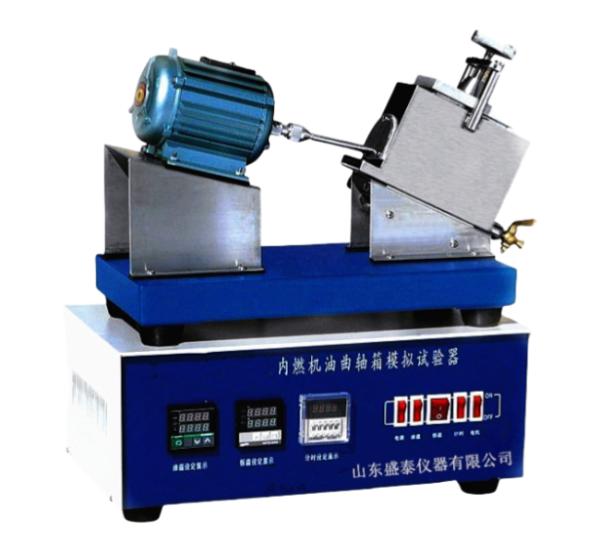

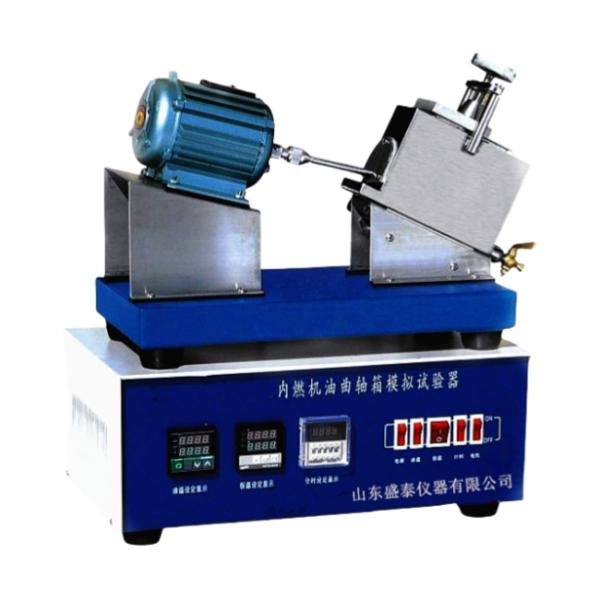

This instrument consists of a control box and a main unit, with an upper and lower structure. The control box is equipped with two digital temperature control meters and two digital timing meters. The digital temperature controller controls the temperature of the fuel tank and the test board separately, and has the characteristics of intuitive display, convenient operation, and high temperature control accuracy; The timer can achieve total work timing and automatic control of motor rotation and stop. The host part is made of stainless steel, which has the characteristics of simple design, beauty, and corrosion resistance

Technical Parameter

● Working power supply: AC220V ± 10% 50Hz

● Input power: ≤ 1000W

● Temp control range: Aluminum plate (room temp ～ 400 ℃)

● Temperature control accuracy: ± 1 ℃

● Timing range: 0 ～ 99h

● Motor speed: 1250r/min

● Motor power: 15W

● Size and weight: 480 * 320 * 380mm

● Weight: 35kg

Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.

Packing list
