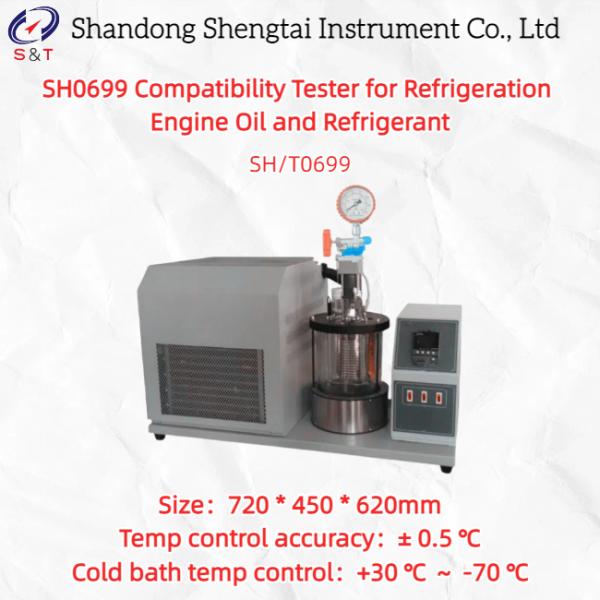

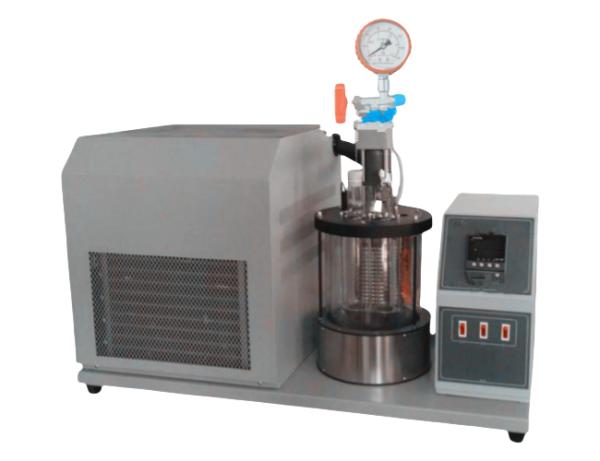

SH0699 Compatibility Tester for Refrigeration Engine Oil and Refrigerant

The SH0699 refrigeration oil and refrigerant compatibility tester is designed and manufactured according to the national petrochemical industry standard SH/T0699 refrigeration oil and refrigerant compatibility, refrigeration oil compatibility, and refrigerant compatibility. Suitable for compatibility between refrigeration oil and refrigerant, compatibility between refrigeration oil, and compatibility with refrigerant

Instrument features: Temperature display using digital tube, imported PT100 temperature sensor, equipped with dedicated glass thermometer; Equipped with a dedicated pressure gauge, vacuum pump for pumping, needle valve adjustment, the vacuum pressure gauge display instrument is equipped with a safety valve to ensure the safe two-phase separation curve of the sample, while ensuring a working pressure of 1.5 MPa. The pressure resistant hose is connected to a transparent test tube to protect the cylinder, making it easy to observe the dedicated refrigerant collection pipeline.

Technical Parameter

● Working power supply: AC220V ± 10% 50Hz

● Working cold bath: double-layer vacuum glass bath

● Cold bath temperature control: +30 ℃ ～ -70 ℃

● Temperature control accuracy: ± 0.5 ℃

● Refrigeration system: imported cascade refrigeration compressor

● Cooling bath container: Dewar flask

● Relative humidity: ≤ 85%

● Power consumption of the whole machine: around 1500W

● Size and weight: 720 * 450 * 620mm

● Weight: 72kg

Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.

Packing list
