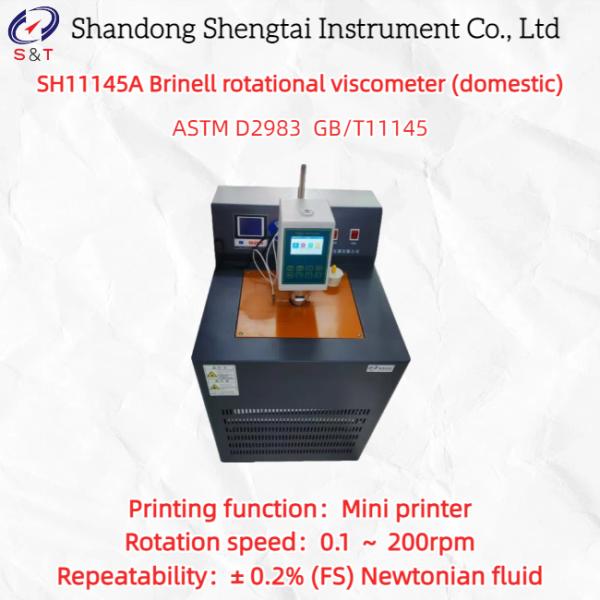

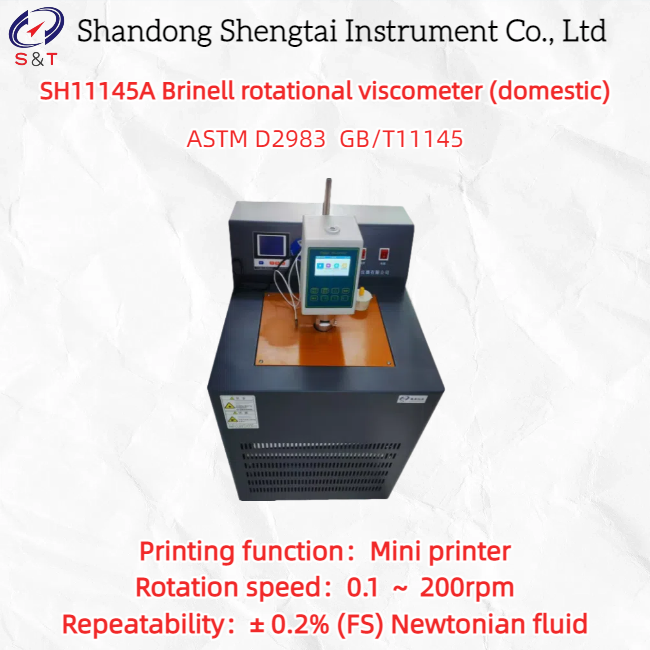

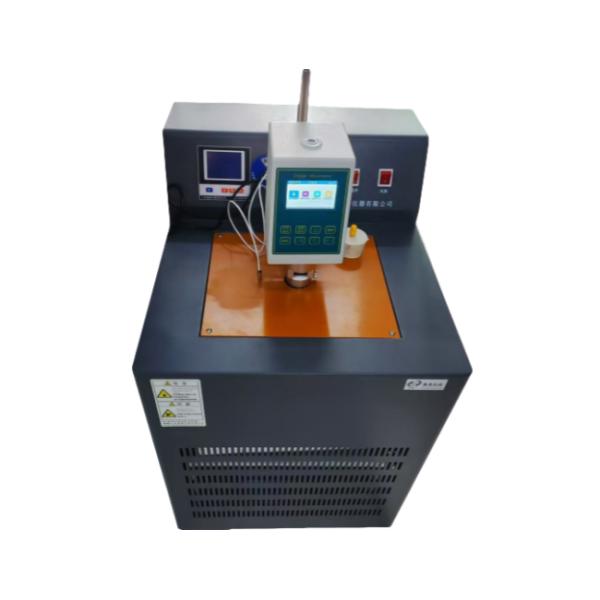

SH11145A Brinell rotational viscometer (domestic)

The SH11145A Low Temperature Brinell Viscometer for Lubricating Oil is designed and manufactured strictly in accordance with GB/T11145-2014 Determination of Low Temperature Viscosity of Lubricants using the Brockfield Viscometer Method. It is suitable for detecting automotive fluid lubricants with a viscosity range of 1 to 6000000mPa. s, such as gear oil, hydraulic transmission oil, industrial and automotive hydraulic oil. The method for determining the shear rate viscosity of automotive fluid lubricants involves placing the sample in a cold bath at the test temperature, connecting a Burgundy viscometer and a spindle, selecting the appropriate rotational speed, and maintaining a constant temperature for 2 to 16 hours before measuring the low-temperature Burgundy viscosity of the sample.

Main technical specifications, parameters, and performance characteristics:

● Applicable standard: ASTM D2983 GB/T11145

● Temperature range: from room temperature to -40 degrees Celsius

● Temperature control method: digital PID temperature controller

● Rotation speed: 0.1-200 rpm

● Rotor configuration: 1-4 rotors (standard) 0 rotors (optional)

● Viscosity range: 1-6 million Mpa. s (cp) 15mpa. s below, it is recommended to use rotor 0 #

● Viscosity temperature curve: The touch screen can display the temperature viscosity curve

● Measurement error: ± 1% (FS) Newtonian fluid

● Repeatability: ± 0.2% (FS) Newtonian fluid

● Screen display: The LCD screen can display viscosity, shear rate, shear stress, rotational speed, temperature, percentage torque, etc

● The rotor number and the maximum measurable viscosity value of the selected rotor at the current speed, etc

● Timing function: Touch screen displays timing function

● Data interface: equipped with RS232 printing interface, can directly connect to computer printing interface

● Printing function: Connect to a micro printer to print experimental data

● Cooling method: Compressor cooling

Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.

Packing list
