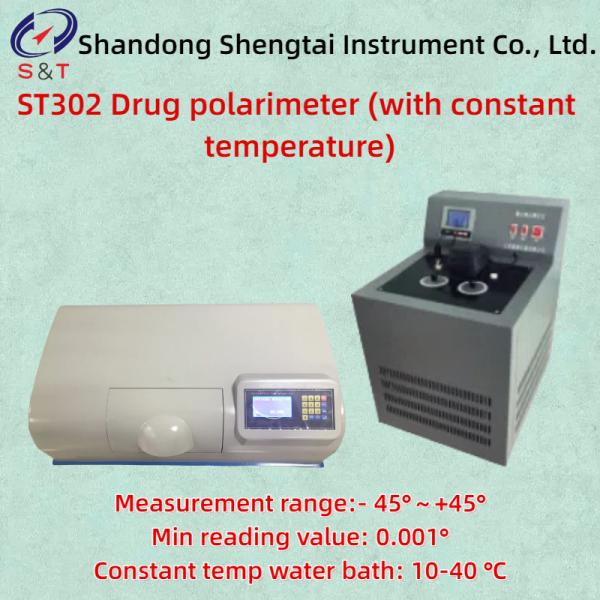

ST302 Drug polarimeter (with constant temperature)

The ST302 drug optical rotation analyzer is designed and manufactured according to the new version 2025 Chinese Pharmacopoeia 0621 optical rotation measurement method, mainly used as a specialized instrument for measuring the optical rotation of drugs.

Unless otherwise specified, the 2025 Chinese Pharmacopoeia 0621 rotational photometry method uses the D-line (589.3nm) of the sodium spectrum to determine energy intensity, with a measuring tube length of 1dm (if other tube lengths are used, conversion should be made) and a measuring temperature of 20 ℃.

Characteristic:

1. Use light-emitting diodes with a lifespan of over 20000 hours as the light source, replacing the previously low lifespan and easily damaged sodium lamps. This greatly eliminates the inconvenience caused by frequent replacement of sodium lamps for users.

2. Adopting photoelectric detection and microcomputer control technology, with a large backlit LCD display, the data is clear and intuitive.

3. Can test optical rotation, specific rotation, concentration, and sugar content

4. Automatic retesting (1-6 times optional), and automatically calculate the average and root mean square.

7. The traditional process of using copper worm gears and counting discs will not result in missing characters during long-term use.

Main technical parameters:

Measurement range:- 45°～+45°

Minimum reading value: 0.001°

Constant temperature water bath: 10-40 ℃

Accuracy: ± (0.01 °+measured value × 0.05%)

Repeatability (maximum deviation): ≤ 0.002°

Equipped with test tube: Constant temperature rotary tube

Constant temperature requirement: equipped with specialized customized constant temperature tube and external circulation device

Temperature control device: Comes with a built-in temperature controller

External dimensions: 600 × 320 × 220mm

Weight: 30kg

Packaging size: 755 × 330 × 370mm

Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.

Packing list

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
