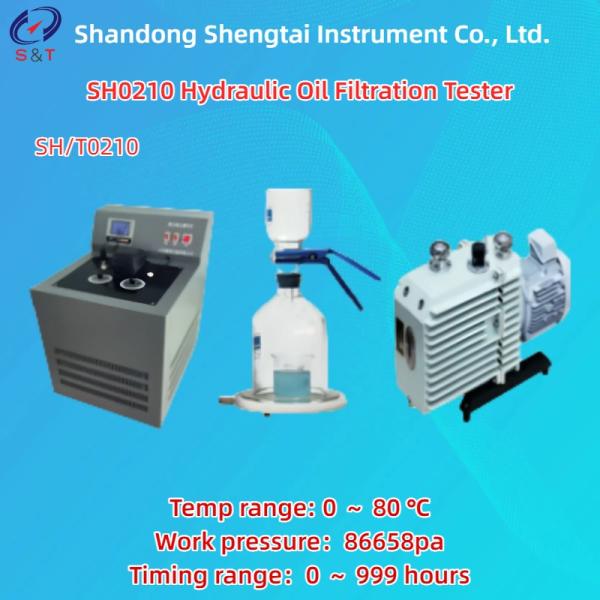

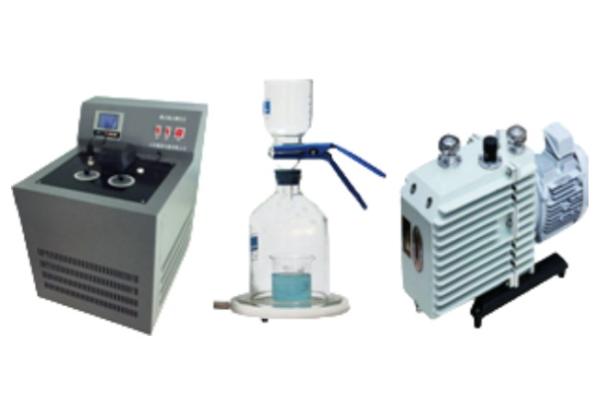

SH0210 Hydraulic Oil Filtration Tester
The SH0210 hydraulic oil filtration tester is valuable in evaluating the filtration performance of hydraulic oil. Due to the poor filtration performance of hydraulic oil in various industrial hydraulic systems and vehicle hydraulic systems, filter blockage is a serious problem. Especially when a small amount of water is mixed into the hydraulic system, the blockage of the hydraulic system filter becomes more severe, causing hydraulic transmission failure, wear and damage to the hydraulic pump and other components.
Main features
● Fully enclosed imported compressor refrigeration ensures the supply of cooling capacity;
● Specialized rotary vane vacuum pump, providing sufficient vacuum degree;
● Glass accessories meet the requirements of SH/T0210 standard;
● Digital display of time, easy to operate;
● Stainless steel constant temperature bath;
● The glass funnel has a scale on it;
● Precision regulator valve regulation, capable of controlling pressure within the range of 86658pa
● Microprocessed thermostat and PID control, digital temperature display, accuracy of 0.1 ℃, Pt100 RTD temperature probe;
● Working temperature range: room temperature ～ 80 ° C; safety measures to prevent overheating or low liquid level
Technical Parameter

● Applicable standard: SH/T0210
● Temperature range: 0 ～ 80 ℃
● Filtration method: vacuum pump
● Work pressure: 86658pa
● Pressure regulation: pressure regulator valve
● Timing method: digital timer
● Timing range: 0 ～ 999 hours
● Working power supply: AC220V
● Cooling method: Compressor cooling
● Heating method: electric heating tube heating
● Temperature control method: digital PID temperature controller
Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.
