High Accuracy Simple Gel Strength Meter Cryometer Travel 300mm Range 200N
High Accuracy Simple Gel Strength Meter Cryometer Travel 300mm Range 200N
High Accuracy Simple Gel Strength Meter Cryometer Travel 300mm Range 200N
High Accuracy Simple Gel Strength Meter Cryometer Travel 300mm Range 200N
Specifications
Brand Name :
Shandong Shengtai Instrument
Model Number :
ST-16B
Place of Origin :
CHINA
MOQ :
1
Payment Terms :
T/T
Supply Ability :
10000 sets/year
Delivery Time :
7-15 work days
Packaging Details :
wooden case
Force measurement unit :
N, g/cm3
Test speed :
0.5-500mm/min can be set arbitrarily
Length unit :
mm
Accuracy :
0.5 level
Range :
200N
Function :
gel strength value or maximum value
Travel :
300mm
Fixture configuration :
cylindrical probe diameter 12.700 ± 0.010mm (for pharmaceutical use)
Power supply :
220V, 50Hz (or 110V, 60Hz)
Description

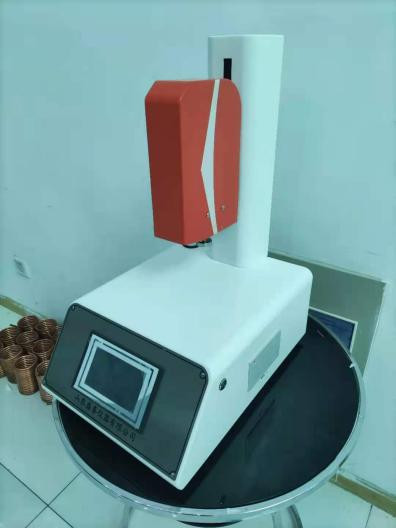

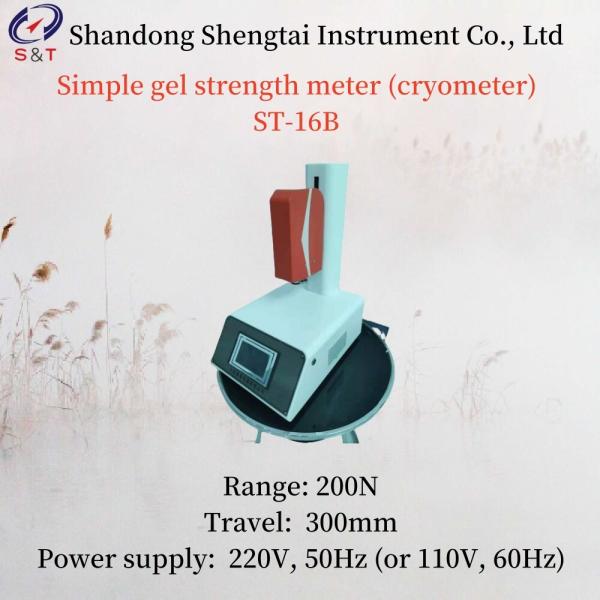

ST-16B Simple gel strength meter (cryometer)

ST-16A gel strength tester can be used to test the strength value of gelatin, carrageenan, agar, agar, super absorbent resin, high molecular hydrogel, butter, cream, fish balls, dairy products, oilfield polymer and other gel or force value under preset conditions.

This instrument is easy to operate, does not require complex training, one click operation, and real-time automatic display of graphs and results.

Technical characteristics

lMicrocomputer control, menu interface, PVC operation panel, and large LCD display.

lIt can perform multiple functional operations such as parameter setting, viewing, etc

lConduct statistical analysis of grouped samples, provide maximum and minimum values

Applicable standards

◆National standardsGB6783

◆Industry standardsQB2354

◆Industry standardsQB/T1995

◆Industry standardsQB/1996

◆Industry standardsQB1997

High Accuracy Simple Gel Strength Meter Cryometer Travel 300mm Range 200N

Technical parameter

Force measurement unit

N,g/cm3

Test speed

0.5-500mm/min can be set arbitrarily

Length unit

mm

Accuracy

0.5 level

Range

200N

Function

gel strength value or maximum value

Travel

300mm

Fixture configuration

cylindrical probe diameter 12.700 ± 0.010mm (for pharmaceutical use)

Power supply

220V,50HZ(or 110V,60HZ)

lForce measurement unit: N, g/cm3

lTest speed: 0.5-500mm/min can be set arbitrarily

lLength unit: mm

lAccuracy: 0.5 level

lRange: 200N

lFunction: gel strength value or maximum value

lTravel: 300mm

lFixture configuration: cylindrical probe diameter 12.700 ± 0.010mm (for pharmaceutical use)

lPower supply: 220V, 50Hz (or 110V, 60Hz)

ST-16B Simple gel strength meter (cryometer)

High Accuracy Simple Gel Strength Meter Cryometer Travel 300mm Range 200N

ST-16A gel strength tester can be used to test the strength value of gelatin, carrageenan, agar, agar, super absorbent resin, high molecular hydrogel, butter, cream, fish balls, dairy products, oilfield polymer and other gel or force value under preset conditions.

This instrument is easy to operate, does not require complex training, one click operation, and real-time automatic display of graphs and results.

Technical characteristics

lMicrocomputer control, menu interface, PVC operation panel, and large LCD display.

lIt can perform multiple functional operations such as parameter setting, viewing, etc

lConduct statistical analysis of grouped samples, provide maximum and minimum values

Applicable standards

◆National standardsGB6783

◆Industry standardsQB2354

◆Industry standardsQB/T1995

◆Industry standardsQB/1996

◆Industry standardsQB1997

Technical parameter

Force measurement unit N,g/cm3
Test speed 0.5-500mm/min can be set arbitrarily
Length unit mm
Accuracy 0.5 level
Range 200N
Function gel strength value or maximum value
Travel 300mm
Fixture configuration cylindrical probe diameter 12.700 ± 0.010mm (for pharmaceutical use)
Power supply 220V,50HZ(or 110V,60HZ)

lForce measurement unit: N, g/cm3

lTest speed: 0.5-500mm/min can be set arbitrarily

lLength unit: mm

lAccuracy: 0.5 level

lRange: 200N

lFunction: gel strength value or maximum value

lTravel: 300mm

lFixture configuration: cylindrical probe diameter 12.700 ± 0.010mm (for pharmaceutical use)

lPower supply: 220V, 50Hz (or 110V, 60Hz)
