Specifications
Brand Name :
Shengtai Instrument
Model Number :
SH0545
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
1 Set
Payment Terms :
T/T
Supply Ability :
100000sets/year
Delivery Time :
7-15work-days
Packaging Details :
wooden case
MODEL :
SH0545
Standard :
SY T 0545-2012
Temp range :
-40℃~ 600℃
Temp resolution :
0.01℃
Temp fluctuation :
±0.01℃
Temperature repeatability :
±0.1℃
Heating rate :
0.1~100℃/min
Cooling rate :
0.1~20℃/min
constant tempe time :
Program setting≤24h
Description

SH0545 crude wax precipitation point tester

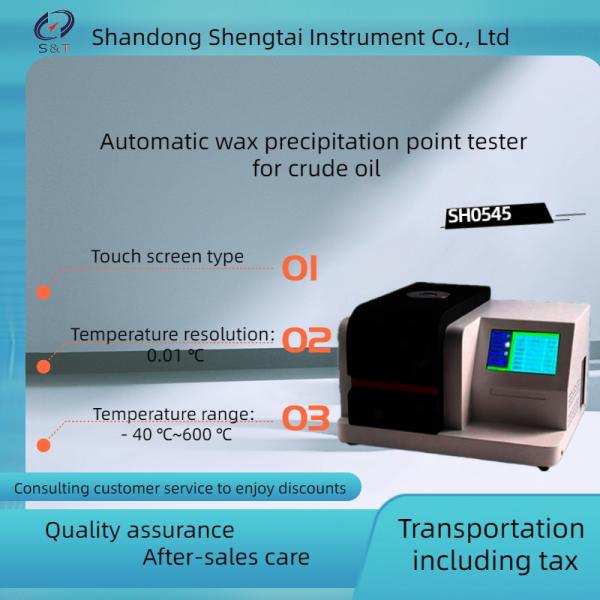

Automatic Touch Screen Crude Oil Wax Precipitation Point Tester SH0545

SH0545 automatic crude oil wax precipitation point detector/meter/tester is touch screen type, can conduct glass transition temperature test, phase transition test, melting and thermal enthalpy value test, product stability, curing, specific heat, oxidation induction period test and other tests

wax precipitation point :The temperature when the wax crystals just begin to precipitate from the crude oil liquid system, and the sample curve begins to deviate from the baseline corresponding to the exothermic peak, expressed in Tc.

The crude oil sample is heated to above the temperature of the precipitation point, and then cooled at a certain speed, the differential heat flow between the sample and the reference at each temperature point is recorded, and the crude oil wax analysis curve is drawn as the vertical coordinate and the temperature as the abscissa

automatic crude oil wax precipitation point tester

Technical performance:

  • Standard: SY T 0545-2012 Thermal characteristics of crude oil wax precipitation
  • Curve scanning: heating scanning, cooling scanning
  • Display method: Adopting a human body sensing touch screen
  • USB communication interface, strong universality, reliable and uninterrupted communication, supporting self recovery connection function
  • New metal furnace structure, better baseline and higher precision. Heating adopts an indirect conduction method, which has high uniformity and stability, reduces pulse radiation, and is superior to traditional heating modes.
  • Display method: 7-inch LCD touch screen display
  • Data interface: standard USB interface

Technical performance parameters:

Name crude oil wax precipitation point detector/meter/tester
Standard SY T 0545-2012
Temp range -40℃~ 600℃
Temp resolution 0.01℃
Temp fluctuation ±0.01℃
Temperature repeatability ±0.1℃
Heating rate 0.1~100℃/min
Cooling rate 0.1~20℃/min
Display mode 7-inch LCD touch screen display
Data interface the standard USB interface
Curve scan heating scanning, cooling scanning
Display mode using the human body sensing type touch screen
constant tempe time Program setting≤24h
Instrument size:480 * 430 * 490mm Weight:35KG
Host packaging size: 640 * 530 * 520mm Weight: 26kg
Refrigerator packaging size: 500 * 420 * 770mm weight 34kg

Packing list

S/N Name Quantity Unit Remarks
1 Host 1 set
2 USB drive 1 piece
3 data line 1 piece
4 Power cord 1 piece
4 Aluminium crucible 100 piece
5 Metal cover 2 piece
6 Pure tin pellet 1 piece
7 10A fuse 5 piece
8 Tweezers 1 piece
9 Silica gel tube 1 piece
10 Instruction 1 copy
11 Warranty and packing list 1 copy

Company Introduction

Shandong Shengtai Instruments Co., Ltd. is specialized in the research and production of experimental testing instruments and industrial testing instruments. It is a professional instrument company integrating instrument research and development, manufacturing, sales and service. Its products are widely used in food, flour, grain and oil, Feed, electricity, petrochemical, industrial oil, aerospace, coal quality and other industries.

For more than 10 years, Shengtai has always been adhering to the "first-class service, customer first" as the purpose, "reasonable price, honesty and trustworthiness" as the business policy. Adhere to technical innovation, with rich knowledge of the technical team and experienced, thoughtful after-sales service team.

Shengtai instrument as one of the most large-scale and competitive enterprises in the industry, with the strength of technology research and development, professional technical knowledge and innovative design concept, in the model improvement, Significant technical breakthrough has been achieved in the development of function expansion and intelligent control system.

OUR service

After-sales service commitment, our company to sell the product after-sales service commitment: warranty period of one year, long-term technical support outside the warranty period. During the warranty period, the seller shall bear the cost of the replacement of the equipment, the freight and maintenance of the instrument; outside the warranty period, the seller shall waive the maintenance fee and charge only the cost of the basic materials and freight charges when the instrument is malfunctioning and the seller shall not charge the maintenance fee during the warranty period.

Automatic Touch Screen Crude Oil Wax Precipitation Point Tester SH0545

Packaging & Delivery

1. Out packing: Standard export wooden case.
2. Inner packing: With careful stretch film wrap product, hard wood board+ strong bandage to fix corners.
3. Checking teams: Specialized staff to inspect and classified your goods.

4.Port Any port of China

Lead Time :

Quantity(Sets) 1 - 1 2 - 5 6 - 10 >10
Est. Time(days) 6 20 30 To be negotiated
