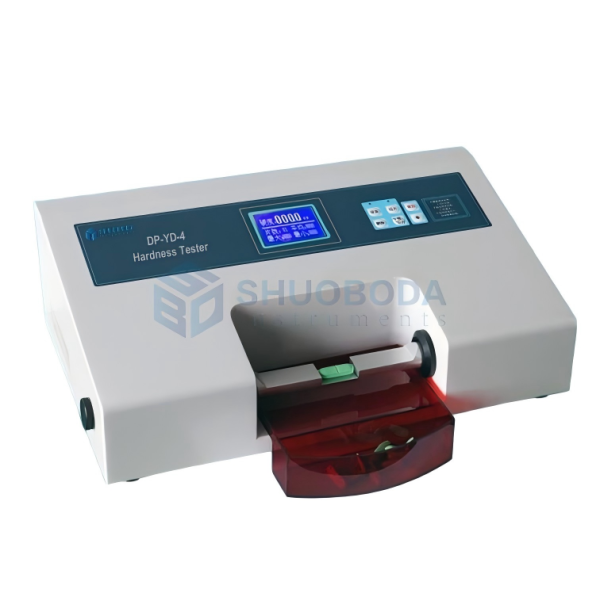

DP-YD-4 intelligent tablet hardness tester

DP-YD-4 Intelligent Tablet Hardness Tester is a drug testing instrument used to measure tablet hardness. Tablets should have appropriate hardness, which is an important indicator that reflects the level of tablet production technology and controls tablet quality. Correctly reflecting and testing tablet hardness has practical guiding significance that cannot be ignored for tablet production and scientific research, ensuring the accuracy of clinical medication, etc.

Applicable standards:

JB/T20104-2007

Main features of DP-YD-4 intelligent tablet hardness tester:

Ÿ Constant-speed automatic tableting ensures measurement accuracy and reproducibility.

Ÿ High-precision pressure sensor.

Ÿ The display uses a high-definition LCD screen with rich and friendly display content.

Ÿ Optional measurement methods: single chip/automatic continuous.

Ÿ Using microcontroller as the core control technology, it is highly intelligent, powerful and easy to use. The system can realize automatic tableting, automatic display, automatic latch, automatic reset, automatic cycle test, automatic linear error correction, and automatic fault diagnosis.

Ÿ Automatically calculate the film ejection stroke and compress the test duty time.

Ÿ One-click conversion of measurement units (Newton-Kilogram).

Ÿ Provide function keys to delete mis operations.

Ÿ Users can conveniently use standard weights to regularly calibrate the measurement accuracy of the instrument.

Main technical indicators of DP-YD-4 intelligent tablet hardness tester:

Ÿ Automatic constant speed tableting, reproducibility and accuracy guaranteed

Ÿ Hardness test range: 15-200N

Ÿ Reading resolution: 0.1N

Ÿ High-precision mechanical sensors

Ÿ Intelligent LCD display, providing real-time multi-information data

Ÿ Optional measurement methods: single chip/automatic continuous

Ÿ Hardness measurement accuracy: reading ±0.5%

Ÿ Tablet test diameter: 2mm-40mm

Ÿ Repeated measurement error: ±1%

Ÿ Number of test pieces per group: ≤100 pieces

Ÿ Unit of measurement: Newton N Kilogram Force Kgf (one key to realize measurement unit conversion)

Ÿ Automatically calculate the film ejection stroke and shorten the duty cycle.

Ÿ Users can use standard weights to calibrate the measurement accuracy of the instrument at any time.

Ÿ Overall dimensions: length*width*height 500*300*170mm
