Specifications
Brand Name :
SHUOBODA
Model Number :
DP-300A
Certification :
ISO/CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C,T/T
Supply Ability :
500 sets/month
Delivery Time :
5~8 working days
Packaging Details :
Plywood packing
No.1 coating pan :
300mm 1Cr18Ni9Ti
No.2 coating pan :
200mm 1Cr18Ni9Ti
No.3 coating pan :
100mm 95 glass
coating pan tilt :
35 ° ~ 45 ° adjustable
coated pan speed :
1 ~ 80rpm adjustable
Power :
220V 50Hz
Description

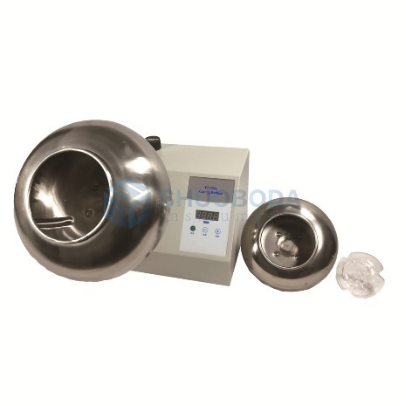

DP-300A Small Drug Tablet Coater (Sugar-coating pan)

DP-300A type of small coating machine is designed for medical institutions, drug development and pharmaceutical company laboratory designed instrument, which can be observed tablets, pills, granules, an outer coating and production process of film-coated capsule particles, get accurate experimental data, it can also be used for small batch production of new drugs, is the necessary equipment of the pharmaceutical industry.

Product Features

Simple operation, high-definition digital tube display, and intuitive reading.

Three types of sugar-coated pans are available to meet more experimental needs.

The tilting angle and speed of the sugar-coated pan are adjustable.

Smooth operation, low energy consumption and high reliability.

Specifications

Host

Model

DP-300A

DP-300A Small Drug Tablet Coater with 300mm 1Cr18Ni9Ti Pan, 35°~45° Adjustable Tilt and 1~80rpm Adjustable Speed

No.1 coating pan

300mm 1Cr18Ni9Ti

No.2 coating pan

200mm 1Cr18Ni9Ti

No.3 coating pan

100mm 95 glass

coating pan tilt

35 ° ~ 45 ° adjustable

coated pan speed

1 ~ 80rpm adjustable

Power

220V 50Hz

coating pot production

Ø300mm≤1000g/time

Ø200mm≤500g/time

Ø100mm≤70g/time

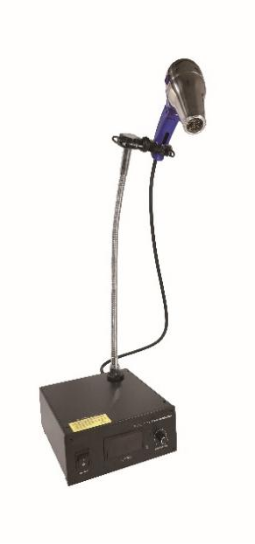

Heating device

Features

Softly rotate the wind and heat evenly to better protect the components;

The temperature rises quickly and reaches the set temperature in a few minutes;

Can adjust the air volume and temperature to a large extent to adapt to

Same drug requirements;

The digital display indicates the temperature and the temperature control is accurate.

DP-300A Small Drug Tablet Coater with 300mm 1Cr18Ni9Ti Pan, 35°~45° Adjustable Tilt and 1~80rpm Adjustable Speed

Power consumption

1200W

Air temperature

10～100°C

Power

AC220V±10%,50Hz

Air compressor

Cylinder(mm)

63.7x11.8 x 2

DP-300A Small Drug Tablet Coater with 300mm 1Cr18Ni9Ti Pan, 35°~45° Adjustable Tilt and 1~80rpm Adjustable Speed

Speed(r.p.m.)

1380

Pressure(Bar)

8kg

Capacity(L/min)

40

Tank(L)

8

Power(W)

580W

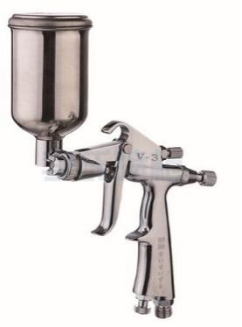

Spray Gun

Features

Easy to spray in all aspects, suitable for spraying small and medium areas, Uniform atomization, fine particles, not suitable for spraying thick, large particle coating.

DP-300A Small Drug Tablet Coater with 300mm 1Cr18Ni9Ti Pan, 35°~45° Adjustable Tilt and 1~80rpm Adjustable Speed

Air consumption

6SCFM

Paint transfer

Gravity

Pressure

43PSI

Inlet port

1/4”

Spray nozzle diameter

0.5mm

Cup capacity

Around 150ml, direction adjustable

Configuration

Simple model: Host, 3 pans

Standard model: Host, 3 pans, 1 Spray Gun, 1 heating devices including hot air gun, 1 air compressors
