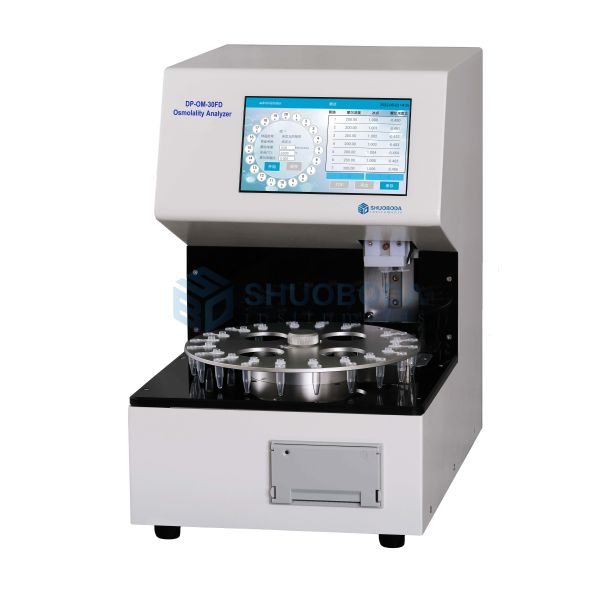

DP-OM-30FD Automatic Touch Screen Medical osmolality meter

Performance features:

Ÿ Android operating system, integrated fashion design, easy to operate.

Ÿ Dual refrigeration system, short pre-cooling time and fast detection speed.

Ÿ The turntable system and the automatic lifting and lowering of the probe enable multi-sample testing and facilitate continuous and grouped testing.

Ÿ The measurement sample size is small and can meet the testing needs of different fields.

Ÿ It can be calibrated at any concentration, perfectly fits the measurement curve, optimizes calculations, and ensures measurement accuracy.

Ÿ The cooling system adopts a heat transfer fluid-free design, eliminating frequent maintenance.

Ÿ It has built-in names of hundreds of injection drugs from the Chinese Pharmacopoeia, making it easy to preset inspection information.

Ÿ It has massive storage to ensure data integrity and can store test data.

Ÿ You can choose the printing format and export the file in the specified format through the USB interface.

Ÿ Barcode scanner can quickly import sample information.

Ÿ It has permission management function to ensure the security of data and operations.

Ÿ It can be connected to a computer or laboratory platform through the RS232 interface to achieve data sharing.

Technical Parameters:

Ÿ Measuring range: 0～3000 mOsmol/kg H2O

Ÿ Sample quantity: 1-20

Ÿ Sample volume: 60µl (50µl～100µl)

Ÿ Test time: < 1.5 minutes (single)

Ÿ Pre-cooling time: ≤ 3 minutes

Ÿ Repeatability: RSD≤±1% (300 mOsmol/kg)

Ÿ Accuracy: ±2 mOsmol/kg (≤ 400 mOsmol/kg); ±1% ( > 400 mOsmol /kg)

Ÿ Resolution: 1 mOsmol/kg

Ÿ Linear: < 1 % of straight line

Ÿ Ambient temperature: 5～35℃

Ÿ Environmental humidity: 5~80%

Ÿ Power supply: AC 220V±10%; 50Hz; <80W

Ÿ Overall dimensions: 280×443×434mm

Ÿ Language: switch between Chinese and English
