DP-CS-2 Tablet Friability Tester
DP-CS-2 Tablet Friability Tester
Specifications
Number of turns of the turntable :
10-990 turns, adjustable (default 100 turns)
Turntable rotation speed :
25 rpm
Turntable speed accuracy :
±1 rpm
Turntable cylinder diameter :
φ286mm
Turntable cylinder depth :
39mm
Sample falling height :
155.5mm
Brand Name :
SHUOBODA
Model Number :
DP-CS-2
Certification :
ISO/CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C,T/T
Supply Ability :
500 sets/month
Delivery Time :
5~8 working days
Packaging Details :
Plywood packing
Description

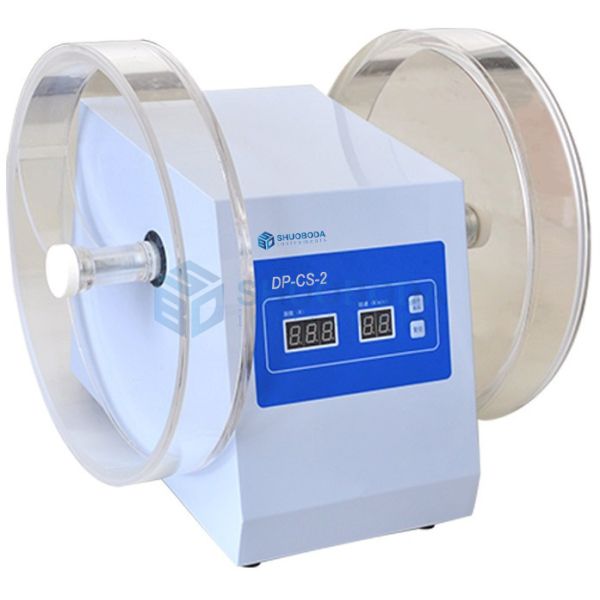

DP-CS-2 Tablet Friability Tester
The DP-CS-2 Tablet Friability Tester is a precision instrument designed for evaluating tablet durability and quality. Friability testing is essential in pharmaceutical manufacturing as it directly impacts tablet performance during production, packaging, and transportation processes.
Instrument Overview
This specialized testing equipment features complete functionality and user-friendly operation, with performance metrics fully compliant with Chinese Pharmacopoeia and United States Pharmacopoeia requirements. During operation, the rotating drum causes tablets to continuously roll, rotate, and slide against baffles, repeatedly falling from the axis to the drum wall or other tablets. This action generates consistent friction, vibration, and impact forces. After the predetermined testing period, samples are examined for damage and precisely weighed to calculate percentage weight loss.
Key Mechanical Advantage: Full mechanical gear transmission system eliminates belts and wear-prone components, ensuring extended service life and reliable performance.
Technical Specifications
Turntable Rotations 10-990 turns, adjustable (default: 100 turns)
Turntable Rotation Speed 25 rpm
Rotation Speed Accuracy ±1 rpm
Turntable Cylinder Diameter φ286mm
Turntable Cylinder Depth 39mm
Sample Falling Height 155.5mm
Power Supply 220V/50Hz/20W
Dimensions 370×300×340mm
Weight 10kg
Product Gallery
DP-CS-2 Tablet Friability Tester DP-CS-2 Tablet Friability Tester DP-CS-2 Tablet Friability Tester
