TS-212 Polymorphic Tritium Sampling Device
TS-212 Polymorphic Tritium Sampling Device
Specifications
Brand Name :
SHUOBODA
Model Number :
TS-212
Certification :
ISO/CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C,T/T
Supply Ability :
100 sets /month
Delivery Time :
5~8 working days
Packaging Details :
Plywood box
Sampling flow :
1-10L/min
Working temperature of semiconductor cold trap :
-20°C ±1°C;
Working temperature of catalytic device :
400°C ±5°C;
Cold trap water intake :
>100 ml;
Description

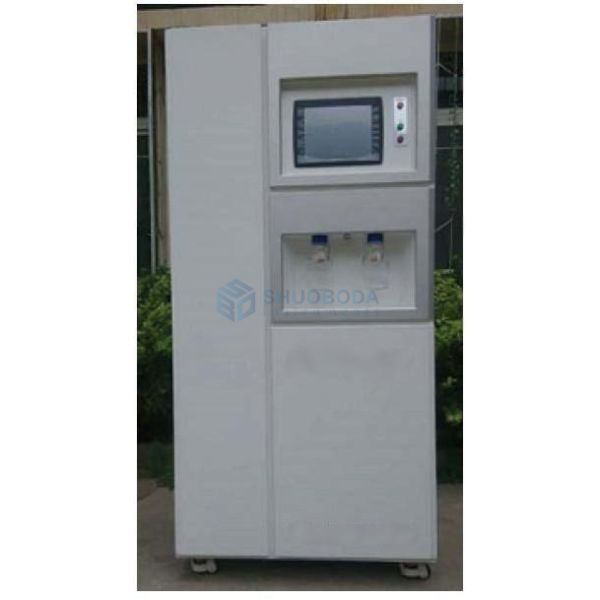

TS-212 Polymorphic Tritium Sampling Device
Product Overview
The TS-212 Polymorphic Tritium Sampling Device enables separate collection of tritiated water (HTO), tritiated hydrogen (HT), and tritiated methane (CH3T) from air samples according to user requirements. This advanced monitoring system is designed for environmental background investigation and tritium concentration monitoring in various nuclear facilities including process pipelines, nuclear power plant exteriors, reactor workshops, and tritium waste treatment workplaces.
Key Features
  • HT and CH3T catalytic oxidation modules ensure complete oxidation of airborne tritium compounds
  • Unique cold trap design maintains smooth sampling gas path operation
  • Remote control and display management capabilities via data transmission and software control
Technical Specifications
Parameter Specification
Sampling Flow Rate 1-10 L/min (adjustable)
Semiconductor Cold Trap Temperature -20°C ±1°C (standard), 0-30°C (common range)
Catalytic Device Temperature 400°C ±5°C
Cold Trap Water Capacity >100 ml
Capture Efficiency ≥95% (HTO), ≥92% (HT, CH3T)
Continuous Sampling Time 0 to 18 hours (user-configurable)
Control Interface LCD display with local and remote operation modes
Alarm System Real-time monitoring with continuous alarm signals for equipment abnormalities
Data Management Database functionality for historical data queries and report generation
