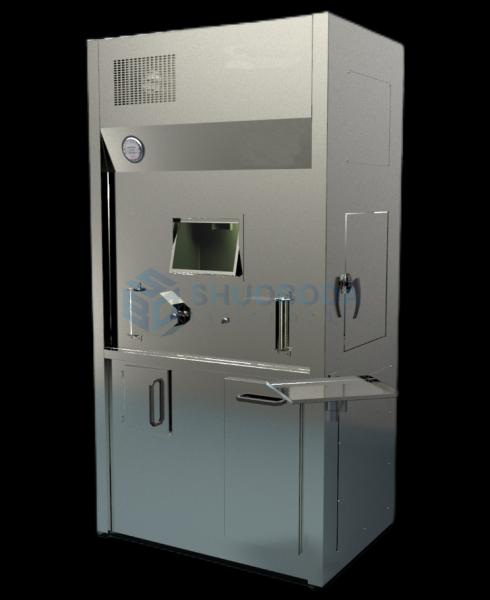

Spetshield Single fume hood for SPECT

Product introduction

The fume hood is equipped with a negative pressure external exhaust air cleaning system, and a fully automatic dispensing device or a manual dispensing protective device can be installed inside, which is especially suitable for SPECT use.

The fume hood consists of three parts:

The control area is located in the upper part and is equipped with an independent full-exhaust air cleaning unit and a high-efficiency air filtration unit. The operation control panel is tilted 15° inward for easy daily use and observation by the operator;

The working area is located in the middle, with a leaded glass window and two hand holes for subassembly operations to enter the working area;

The auxiliary area is located at the lower part and is equipped with an activity meter ionization chamber shielding well and a radioactive material transfer device, which fully meets the functions of SPECT radiopharmaceuticals such as Tc99m in the dispensing process.

Main features

Ø Meets SPECT radionuclide leaching, washing and labeling operations

Ø Work area A (C+A) purification level

Ø 304 stainless steel inside and outside

Ø Automatic transfer of molybdenum and technetium generator

Ø Sunken activity well design

Ø Activity meter ionization chamber height adjustable

Ø Internal high radiation dose warning

Ø Side door radiation dose safety interlock

Ø System control and display are highly integrated

Ø Read activity meter readings in real time

Technical parameters

Ø Model: Spetshield

Ø Front, bottom, door opening side shielding: 20mmPb (or customized)

Ø Other surface shielding: 15mm Pb (or customized)

Ø Hand hole door shield: 20 mm Pb (or customized)

Ø Lead window shielding: 20mmPb (or customized)

Ø 100% air exhaust

Ø Silent: less than 50db

Ø Laminar flow wind speed: 0.25≤v≤0.5m/s

Ø Work area size: 800W*540D*540H

Ø External dimensions: 1030W*850D*2200H

Ø Weight: 1.5t

Ø Power supply: 220V 50Hz10A

Accessories

Ø fan unit

Ø drug delivery system

Ø Syringe delivery system

Ø Intelligent control system

Ø leaded glass window

Ø Activity meter shielded chamber

Ø Lighting lamps, ozone emitter sterilization facilities, power sockets, etc.
