Semi Automatic TLD Reader For TLD Chips
Semi Automatic TLD Reader For TLD Chips
Semi Automatic TLD Reader For TLD Chips
Semi Automatic TLD Reader For TLD Chips
Specifications
Brand Name :
SHUOBODA
Model Number :
DA-3000A
Certification :
CE/ISO
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T,L/C
Supply Ability :
5000 sets/month
Delivery Time :
5~8 working days
Packaging Details :
Plywood packing
measuring ray :
γ, β, X, neutron rays
Detection method :
Automatic continuous reading, 100 TLD chips/hour
Measuring range :
0.1μSv～12Sv; up to 300Sv (sensitized magnesium titanium sheet)
Operation methods :
Equipped with touch screen human-machine interface and application software for simultaneous dual-work operation
Description

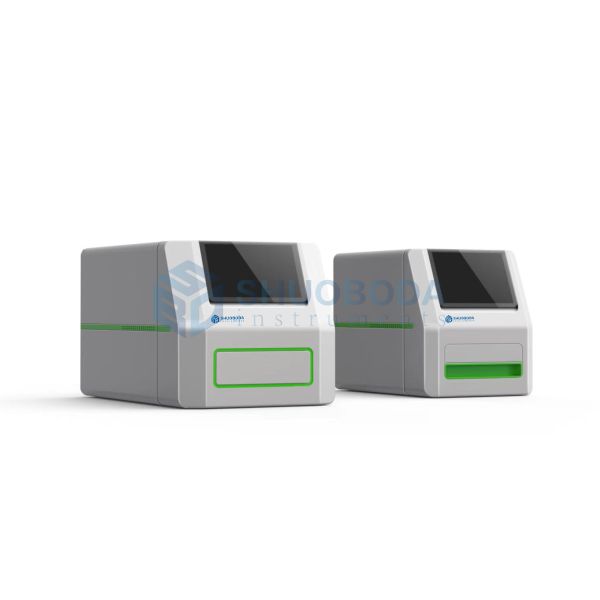

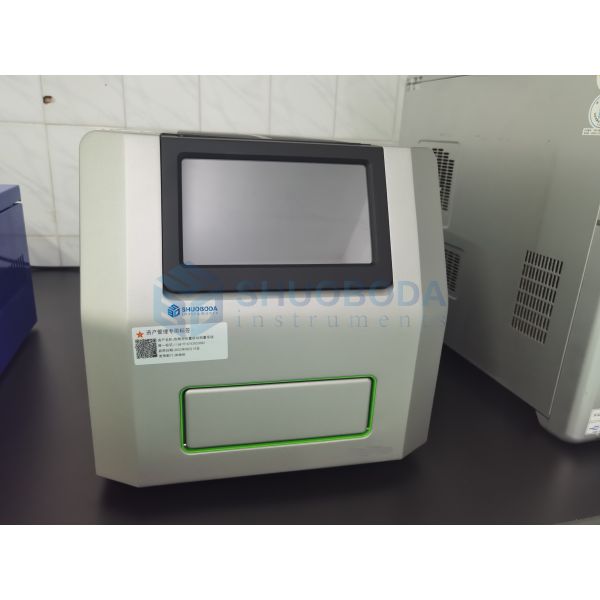

DA-3000A Semi-automatic TLD Reader

Product introduction

DA-3000A Semi-automatic TLD Reader is a highly reliable and cost-effective thermoluminescent reader that can effectively measure the radiation dose absorbed by the thermoluminescent material contained in the dose box.

The reader is integrated with an automatic sample introduction/ejection system, which can automatically read up to 120 dosage elements in one load, supporting multi-batch continuous measurement.

The system software integrates a result database, so operators can easily manage measurement data in various formats and generate measurement reports in specific formats.

Features:

Ø Automatic sample injection, ejection, measurement and data processing, one load can automatically and continuously measure 120 dosage chips and can read 100 chips per hour

Ø Accurate measurement, using wide range, high resolution, high stability, intelligent amplifier, and extended range

Ø Safe, reliable, and stable in operation. The core components, CU, and interface chips are all domestically produced devices, with strong substitutability and good supply guarantee capabilities.

Ø It is simple to operate and has a good human-machine interface for convenient and quick operation. It has built-in diagnostic function, running process display and voice prompt function.

Ø Rich interfaces, with standard S232/USB/RJ45 network interface

Technical parameters

physical parameters

size and weight

345*240*270mm; weight about 25kg

shell material

Sheet metal shell, spray-coated or anodized

Environment

-20℃~60℃, humility 10%~60%

Power supply

220VAC/50Hz

operating parameters

Operation mode

Single sample testing

Detection method

Automatic continuous reading

interactive mode

Photomultiplier tube detection, analog signal amplification processing

maintenance mode

Equipped with touch screen human-machine interface and application software for simultaneous dual-work operation

Adapted dose chips

With self-diagnosis function; modular design facilitates quick replacement on site

measuring ray

γ, β, X, neutron rays

Heating unit parameters

Heating method

Electrode heating, linear temperature rise, maximum temperature 500℃

Get temperature

Room temperature ~500℃ can be set arbitrarily

pre-heat temperature

Room temperature ~500℃ can be set arbitrarily

Heating rate

0℃/s~50℃/s can be set arbitrarily

Temperature control accuracy

±1%

Measurement unit parameters

measurement method

Photomultiplier tube (PMT), analog signal amplification 109 levels

High voltage supply

High voltage 0～1200V adjustable, high voltage stability: ±0.005%

Detection unit cooling

Semiconductor plus controlled refrigeration, the refrigeration temperature can be set

Measuring range

0.1μSv～12Sv; up to 300Sv (sensitized magnesium titanium sheet)

Measurement resolution

Under laboratory conditions, it can reach 0.1μSv after sufficient preheating.

Measurement stability

10 consecutive measurements after sufficient preheating, RSD≤1%

dark current

After preheating, multiple continuous readings RSD≤1%

Reference light

After preheating, multiple continuous readings RSD≤1%
