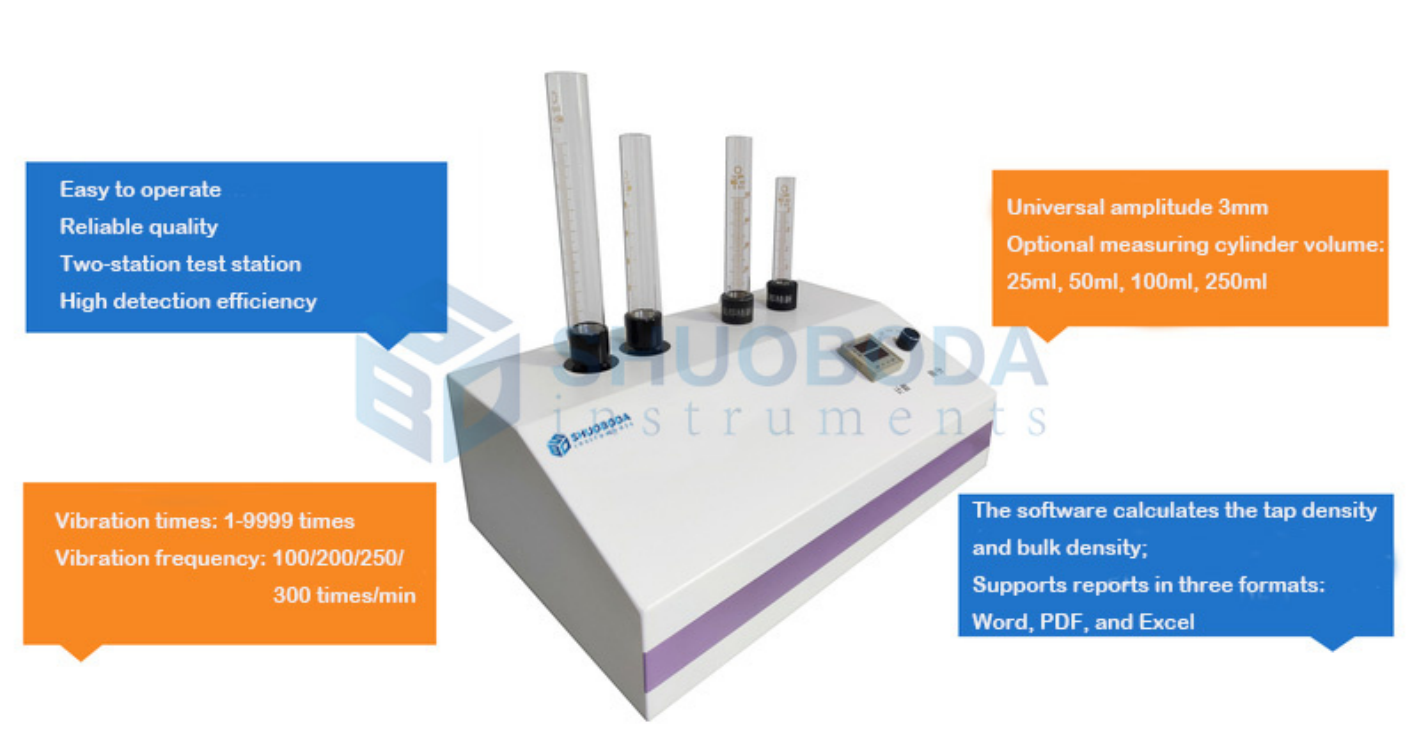

DT-8 Powder Tap Density Tester,Amplitude 3mm

Product Introduction

DT-8 Powder Tap Density Tester is one of the important indicators of powder quality. Tap density measurement refers to putting a certain amount of powder into a container and vibrating it under certain conditions until the volume of the powder in the container no longer decreases. The volume of the powder is read, and then the weight of the powder is divided by the volume to get the density after tapping.

DT-8 Powder Tap Density Tester is a powder tap density tester developed and manufactured in accordance with national standards such as GB/T 5162-2021 and the United States Pharmacopoeia, with independent intellectual property rights. It consists of a precision speed-controlled motor, a stainless steel guide frame, etc., with a firm and reasonable structure, simple operation, and test data managed by a computer. It can test the tap density and bulk density of powders.

Application Field

It is suitable for industrial and agricultural production, scientific research institutions and powder-related industries, such as pharmaceutical powder, metal powder, non-metallic powder, battery materials, abrasives, ceramics, powder coatings, metal powder, food, chemical industry and other industries. It is an ideal instrument for powder tap density testing.

Technical specifications

Advantages of the instrument

1. The vibration frequency can be adjusted as needed: 100 times/min, 200 times/min, 250 times/min, 300 times/min. The operation is simple and convenient. You only need to rotate the switch to set the vibration frequency.

2. The length of the vibration time can be set by the microcomputer timer as needed. It rotates horizontally while vibrating up and down to keep the surface of the powder in the measuring cylinder flat, which effectively improves the measurement accuracy.

3. There are two working positions and two waiting positions. The tap density of two samples can be measured at the same time. During the test, two more samples can be placed on the waiting position to save test time.

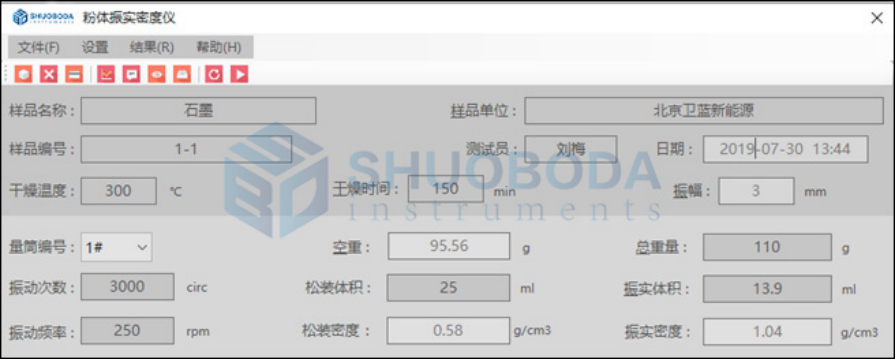

4. The calculation software is randomly equipped to calculate the loose density and tap density of the sample and generate an electronic report, which can be printed and saved.

5. The volume of the measuring cylinder is optional: 10ml, 25ml, 50ml, 100ml, and 250ml and 500ml can be customized.

Test report

R&D Laboratory
