Specifications
Brand Name :
SHUOBODA
Model Number :
BD-D93-109
Certification :
ISO/CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C,T/T
Supply Ability :
500 sets/month
Delivery Time :
5~8 working days
Packaging Details :
Plywood packing
Measuring range :
Room temperature~300°C
Resolution :
0.1°C
Repeatability :
≤2°C
Reproducibility :
≤±4°C
Measured ignition :
Automatic
Lift way :
Automatic tilt
Description

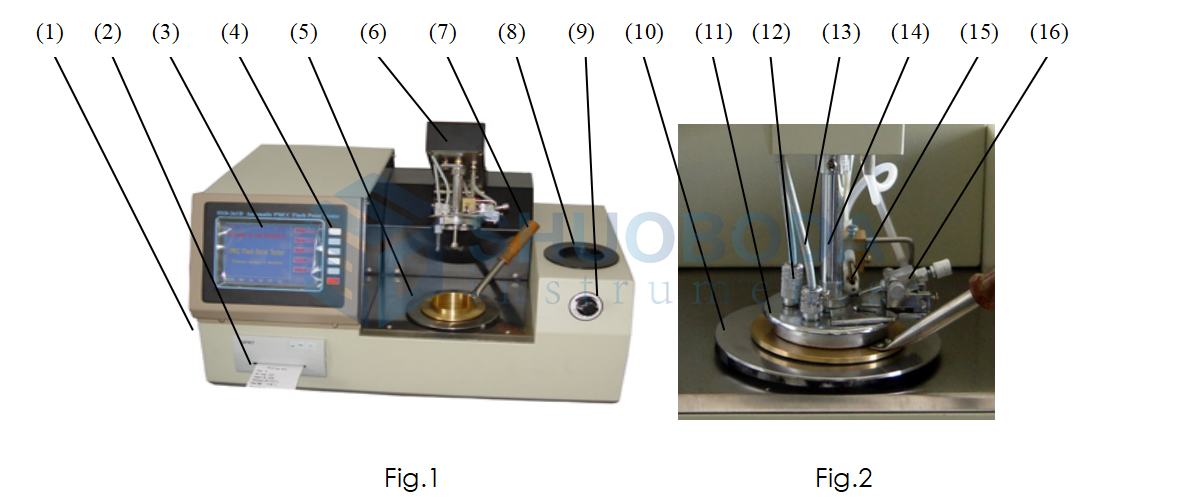

BD-D93-109 Automatic PMCC Flash & Ignition Point Tester

BD-D93-109 Automatic PMCC Flash & Ignition Point Tester is designed and made as per the National Standard of People’s Republic of China GB/T261 “Test Methods for Flash Point of Petroleum Products (Closed Cup Methods)”. It is suitable to determine closed cup flash point of petroleum products, which is described as the lowest temperature at which the mixture of a petroleum product sample vapor and air contacts flame and makes a flash when the sample is heated in a closed cup under the stipulated condition. And refer to ASTM D93.

Main technical characteristics

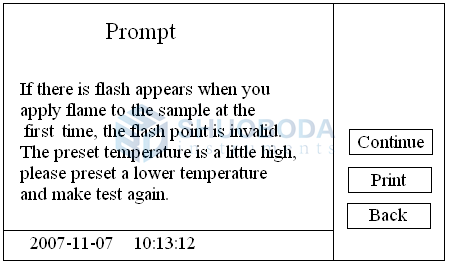

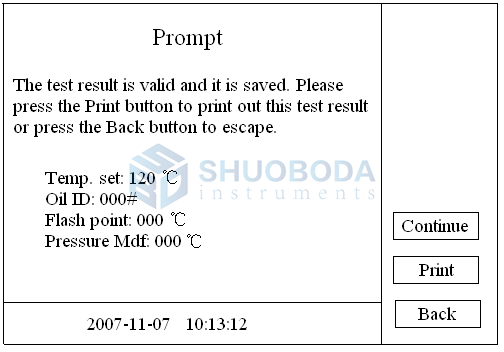

1. It adopts colored LCD, man-machine conversation interface, and blank buttons. It has prompts menu and guide to choose method A or B, preset temperature, sample serial number, barometric pressure, test data and other parameters.

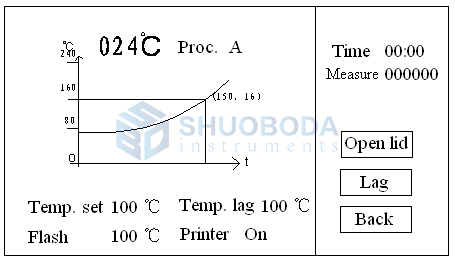

2. It can simulate and show temperature-time curve. It has prompts for wrong operation and prompts to modify test data, test time, and other parameters.

3. It can save test data of 100 groups. It is equipped with RS-323, and 485 computer ports, so it can save more test data when it is connected to a computer. Then you can also modify some parameters.

4. It can calibrate the effect of barometric pressure to the test and calculate the modified value.

5. Differential detection. It can modify system deviation automatically.

6. It can open lid, apply flame, make detection, and print test data automatically. The test arm can be raised up and lowered down automatically.

7. It uses an electron igniter for flame ignition. It has forcible wind cooling function.


BD-D93-109 Automatic PMCC Flash & Ignition Point Tester ASTM D93

BD-D93-109 Automatic PMCC Flash & Ignition Point Tester ASTM D93


Technical parameters:

Model

BD-D93-109

Measuring range

Room temperature~300°C

Resolution

0.1°C

Repeatability

≤2°C

Reproducibility

≤±4°C

Measured ignition

Automatic

Lift way

Automatic tilt

Display mode

Color screen

Detection mode

Automatic

Data output

Print

Ignition mode

Electricity, gas

Experimental cup number

Single cup

Operating environment

10-50°C

Relative humidity

85%

Power supply voltage

AC220V

Power frequency

50Hz±5%

Power rate

≤300W

Packing accessories

No.

Name

Unit

Quantity

1

Main unit

Set

1

2

Oil cup

Piece

1

3

Power supply wire (250V 6A)

Piece

1

4

Printing paper

Roll

1

5

Igniter

Piece

1
