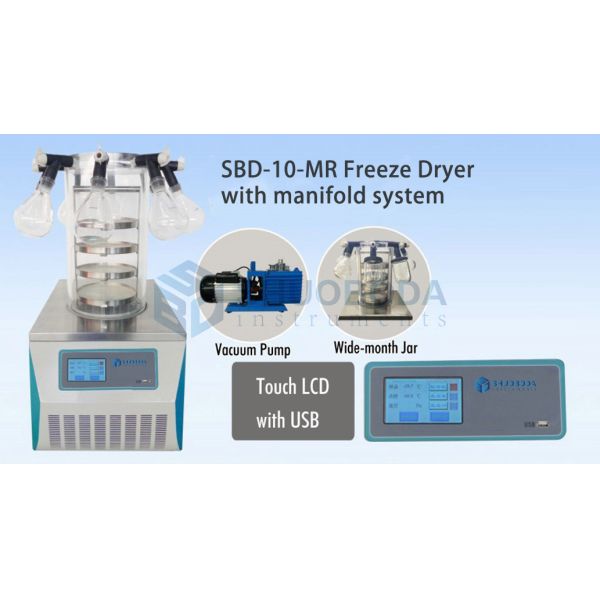

SBD-10 Series Air Cooled Laboratory Freeze Dryers With Manifold System
SBD-10 Series Air Cooled Laboratory Freeze Dryers With Manifold System
SBD-10 Series Air Cooled Laboratory Freeze Dryers With Manifold System
SBD-10 Series Air Cooled Laboratory Freeze Dryers With Manifold System
SBD-10 Series Air Cooled Laboratory Freeze Dryers With Manifold System
SBD-10 Series Air Cooled Laboratory Freeze Dryers With Manifold System
SBD-10 Series Air Cooled Laboratory Freeze Dryers With Manifold System
SBD-10 Series Air Cooled Laboratory Freeze Dryers With Manifold System
SBD-10 Series Air Cooled Laboratory Freeze Dryers With Manifold System
SBD-10 Series Air Cooled Laboratory Freeze Dryers With Manifold System
Specifications
Brand Name :
SHUOBODA
Model Number :
SBD-10 series
Certification :
ISO/CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C,T/T
Supply Ability :
500 sets/month
Delivery Time :
5~8 working days
Packaging Details :
Plywood packing
Dry chamber size :
Ф260×430mm
Total shelf area :
0.12 m2
Shelf size(mm) :
Ф200*4pcs
Shelf space height (mm) :
70
Shelf number :
4 pcs
Trays number :
4 pcs
Description

SBD-10 series Laboratory Freeze Dryers

SBD-10 Series Air Cooled Laboratory Freeze Dryers With Manifold System

Description

Vacuum freezing dryer is widely used in the medical, pharmaceutical, biological, chemical and food and other fields, SBD series is suitable for laboratory use or low-volume production to meet the requirements of most laboratories conventional lyophilization.

Features

  • Microprocessor control & LCD touch display which can display drying curve, vacuum, condenser temp., run time, ambient temperature.
  • Pre-freezing function for samples.
  • Large refrigerating capacity and slight noise of DANFOSS(SECOP) compressor with CFC-FREE refrigerant.
  • 304 stainless steel of condenser, table-top, racks & shelves to ensure corrosion-resistant and easy to clean; shelves height adjustable.
  • Transparent drying chamber is safe and easy to observe;
  • Novel design, small size and easy operation;
  • For water based samples, the -55°C condenser is the perfect choice with effective cost. For samples containing solvents or with low eutectic points,
  • the -80 C dual cascade refrigeration condenser provides maximum performance (optional).
  • For labs that needs quick turn-around, electric heating defrost is optional.
  • Nitrogen inflation valve is available.
  • It includes the following types: Normal type, Top-press type, multi-manifold T type and multi-manifold Top-press type to meet the various requirements.
  • CE/ISO 9001 13485 14001 certificated.

Specifications of SBD-10 Laboratory Freeze Dryers

ModelSBD-10-RSBD-10-MRSBD-10-TPSBD-10-MTPSBD-10-MT
Dry chamber size (D*H)Ф260×430mmФ260×465mmФ260×490mmФ260×540mm/
Total shelf area0.12 m20.12 m20.08m20.08m2/
Shelf size(mm)Ф200*4pcsФ200*4pcsФ180 * 3pcsФ180 * 3pcs/
Shelf space height (mm)70707070/
Shelf number4 pcs4 pcs3 pcs3 pcs/
Trays number4 pcs4 pcs3 pcs3 pcs/
Vials load capacityФ12mm920 Pcs920 Pcs560 Pcs560 Pcs24 ports 430×480mm (H*L)
Ф16mm480 Pcs480 Pcs285 Pcs285 Pcs
Ф22mm260 Pcs260 Pcs165 Pcs165 Pcs
Sample load capacity1.2L1.2L0.8L0.8L/
Flask/8 pcs/8 pcs/
Dry rackIncludedIncludedIncludedIncluded/
Cold trap rackIncludedIncludedIncludedIncludedIncluded
Condenser Temp.<-55°C (-80°C or even lower is optional)
Cold trap size.Ф215 * 140 mm (Depth * Height), 5 liters
Ice remove capacity3~4kg/24hours
Cold typeAir-cooled
Defrost typeNatural (Electric is optional)
Ultimate Vacuum<5 Pa (empty)
Vacuum pumpIncluded
Pump rate2L/S
Install Power970W
Voltage220v/50Hz or 110v/60Hz
Dimensions460*625* (370+430)(mm)
Weight100 kg110kg105kg120kg65kg

Specifications of vacuum pump

Model2XZ-0.52XZ-12XZ-2C2XZ-4C2XZ-6C2XZ-8C2XZ-15C
Pumping Speed: L/S0.51246815
Ult.
Vacuum
Pa		Without gas ballast≤6×10-2
With gas ballast≤6.5≤1.33
Speed: r/min(50HZ)1400
Power Required: Kw0.180.250.370.550.751.11.5
Diameter of inlet port: mm16162525404040
Temp. rise of pump oil: °C≯40≯45≯45≯65≯70
Oil capacity: L0.600.700.101.22.03.04.0
Overall Dimensions: mm447
168
260		469
168
260		514
168
282		514
168
282		565
200
342		650
240
430		770
240
430
Weight: kg16172022406075

Standard Configuration

  • Stainless steel condenser with opening, stainless steel operation tops, seamless welding with round corner which is anti-corrosion and easy to clean
  • Stainless steel shelf & rack, 4 or 6 pcs shelves optional, shelf removable and spacing height adjustable
  • Stainless steel pre-cooling rack with metal cover
  • Integrally molded glass dried barrel adopted special plastic will not break
  • Used SECOP (DANFOSS) quality compressor, high performance condenser fan, LCD touch display, history data can be stored, searched and exported to computer.
ModelRTPMRMTPMT
DescriptionNormal typeStopper deviceStopper + flasksFlasks systemMulti-ports manifold
Freeze Dryer●●●●●
Glass barrel●●●●
Vacuum pump●●●●●
Stoppering device
●
●
Manifold Ports

8 ports (28/ 32mm), each 2 in
1000ml, 500ml, 250ml, 100ml		12 or 24 ports

Optional items

Item No.Item NameItem No.Item Name
SBD1001-80°C CondenserSBD100910001000ml flask
SBD1002Defrost deviceSBD1010Eutectic point test device
SBD1003Refrigerant R404a, R502, R23 and etcSBD1011Vacuum regular nozzle valve
SBD1004Oil mist filterSBD1012Vacuum regulating(control) electromagnetic valve
SBD1005Shelves heating & Program segment control Can stored 16 programs, each program can be set up 36segments, correct program data in computing, memorize the drying curveSBD1013Wide-mouth flasks(jar)
SBD10066pcs shelves instead of 4 pcsSBD1014Change to SS316 condenser & shelves
SBD1007Leybold vacuum pumpSBD1015Capacitance type vacuum gauge
SBD1008Anti-back oil deviceSBD1016Backfill filter
SBD1009100100ml flaskSBD1017Add pressure gauge on the machine
SBD1009250250ml flask

SBD1009500500ml flask

Note: 1. SBD1010 & SBD1011 is depends on SBD1005

Laboratory Freeze drying samples

SBD-10 Series Air Cooled Laboratory Freeze Dryers With Manifold System

Laboratory Freeze Dryer gallery

SBD-10 Series Air Cooled Laboratory Freeze Dryers With Manifold System

SBD-10 Series Air Cooled Laboratory Freeze Dryers With Manifold System


Laboratory Freeze Dryer Packing

SBD-10 Series Air Cooled Laboratory Freeze Dryers With Manifold System
