DP-RC-3 Automation Drug Tablet Dissolution Tester Instruments
DP-RC-3 Automation Drug Tablet Dissolution Tester Instruments
Specifications
Brand Name :
SHUOBODA
Model Number :
DP-RC-3
Certification :
ISO/CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C,T/T
Supply Ability :
500 sets/month
Delivery Time :
5~8working days
Packaging Details :
Plywood packing
Temperature control range :
20~40°C
Speed control range :
20~200RPM
Speed control accuracy :
±2RPM
Numbers timing control segment :
6
Timing control range :
0~999min
Timing control accuracy :
±0.5min
Description

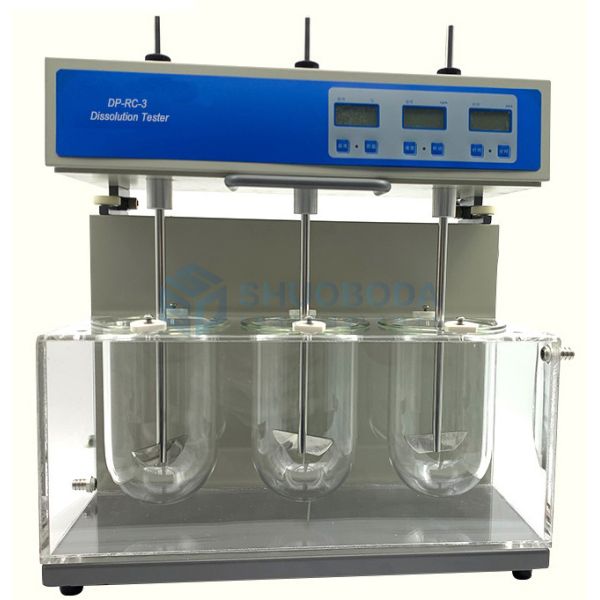

DP-RC-3 Drug Tablet Dissolution Tester

Application:

Dissolution Tester DP-RC-3 consisted of the cabinet, control systems, electrical systems, water bath system, transmission system, sensors, paddle lever member, basket parts and other components, adopted the single-chip microcomputer control system to control precision components for centralized control; high degree automation, high precision control, high sensitivity, small error, low noise, easy to operate.

DP-RC-3 series of instruments are used for detecting velocity and extent of pharmic dissolution from tablet, capsule etc in prescriptive menstruum.

Applicable standards:

National standard (Chinese codex) /2010

Corporate standard (Dissolution tester) Q/12XQ0187-2010

Features:

It has three vessels and three poles arranged on one line.

The head part of the instrument can be artificially turned over smoothly and flexibly.

The basket units and paddle units are made of imported stainless steel (SUS316L).

The magnetism-pumped circular water current can heat the system evenly, and the bath liquid can achieve an equal temperature.

A MPU is used in dissolution tester to automatically control the temperature, rotational speed and time, and the parameters can be preset at any time.

It can be operated conveniently by keystroke. The measurement result is displayed by LED. The preset and real data can be displayed alternately in time.

Automation: auto-test, auto-diagnose, auto-alarm.


Technical parameters:

Specification

Temperature control range

20~40°C

Temperature control accuracy

±0.3°C

Speed control range

20~200RPM

Speed control accuracy

±2RPM

Numbers timing control segment

6

Timing control range

0~999min

Timing control accuracy

±0.5min

Radial rotation err of remiform parts

±0.5mm

Radial rotation err of basket parts

±1.0mm

Homocentric err of rotation axes

±2.0mm

Electric heater power

1000W

Continuous working hour

>24hours

Electric source

220V/50Hz

Power

1200W

Size

553248cm

Weight

50KG

Environment requirement

Usage temperature

+18°C~+28°C

Store temperature

-10°C~+50°C

Humidity

20%~80%

Power supply

Rage of input power supply

220V±10%V AC 50Hz

Max input power

1200W

Remarks

Power supply by international high quality single-phase AC power socket with three jacks, and reliable earthing is guaranteed.

Products Gallery

DP-RC-3 Automation Drug Tablet Dissolution Tester Instruments

DP-RC-3 Automation Drug Tablet Dissolution Tester Instruments

DP-RC-3 Automation Drug Tablet Dissolution Tester Instruments
