Synchronous Thermal Analyzer

Product introduction

Synchronous thermal analysis combines TGA (Thermogravimetric Analysis) with DTA (Differential Thermal Analysis) or DSC (Differential Scanning Calorimetry), in which we can get the information of TG and DTA or DSC in synchrony using the same sample during the same operation.

APPLICATION

Widely used in research and development, process optimization and quality monitoring in various fields such as plastics, rubber, coatings, pharmaceuticals, catalysts, inorganic materials, metal materials and composite materials

Measure and research the following characteristics of the materials

DSC: Melting and crystallization, phase change, reaction temperature and heat, heat of combustion and specific heat capacity, etc.

TG:Thermal stability, decomposition, REDOX, adsorption and adsorption, free water and gesso content, ingredients proportion computation, etc.

Features

Structural advantages

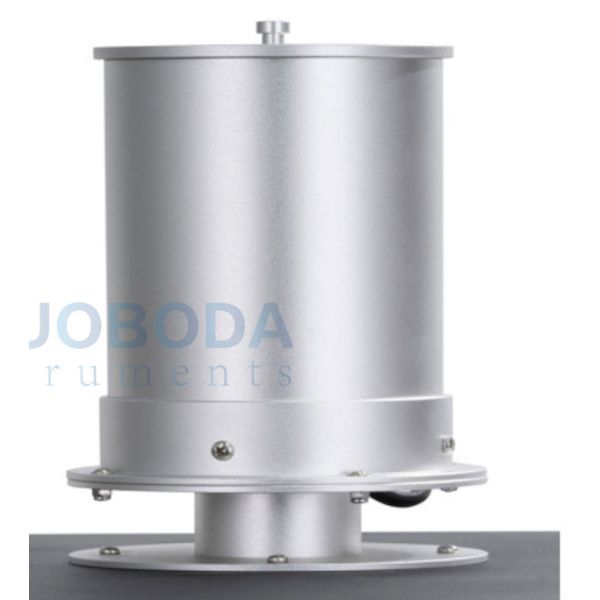

The furnace body is heated by double-row winding of precious metal nickel-chromium alloy wire, which reduces interference and is more resistant to high temperatures.

The tray sensor is made of precious metal nickel-chromium alloy, which has the advantages of high temperature resistance, oxidation resistance, and corrosion resistance.

The power supply, circulating heat dissipation part is separated from the host, reducing the influence of heat and vibration on the micro-thermal balance.

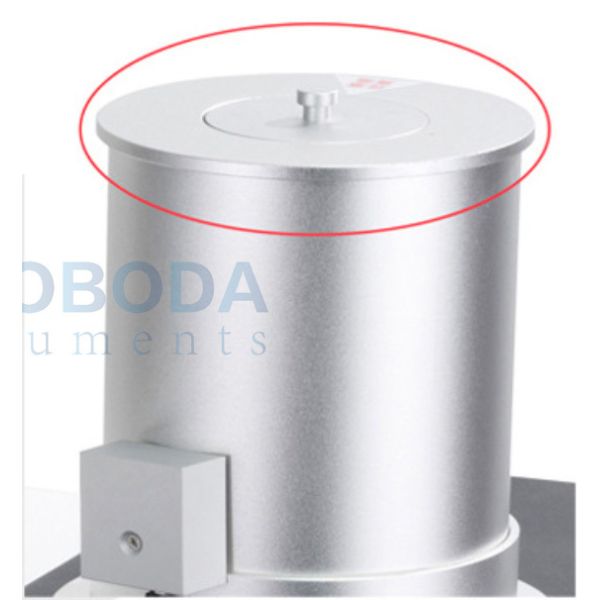

It adopts an open-top structure, which is convenient to operate. It is difficult to move the furnace body up to place the sample, and it is easy to cause damage to the sample rod.

The host adopts heat insulation device to isolate the heat influence of the heating furnace body on the chassis and the micro-thermal balance.

The furnace body can be replaced according to customer requirements

Controller and software advantages

Using imported 32bit ARM processor Cortex-M3 core, sampling speed, processing speed is faster.

24bit four-channel sampling AD collects DSC signal, TG signal and temperature T signal.

The power supply and water circulation part are individually controlled by 8bit single-chip microcomputer to separate the host and the cooling part without interfering with each other, but the two are closely connected, and the cooling part is controlled by the host.

The USB two-way communication is adopted between the software and the instrument to fully realize remote operation. The parameter setting of the instrument and the operation and stop of the instrument can be carried out through the computer software.

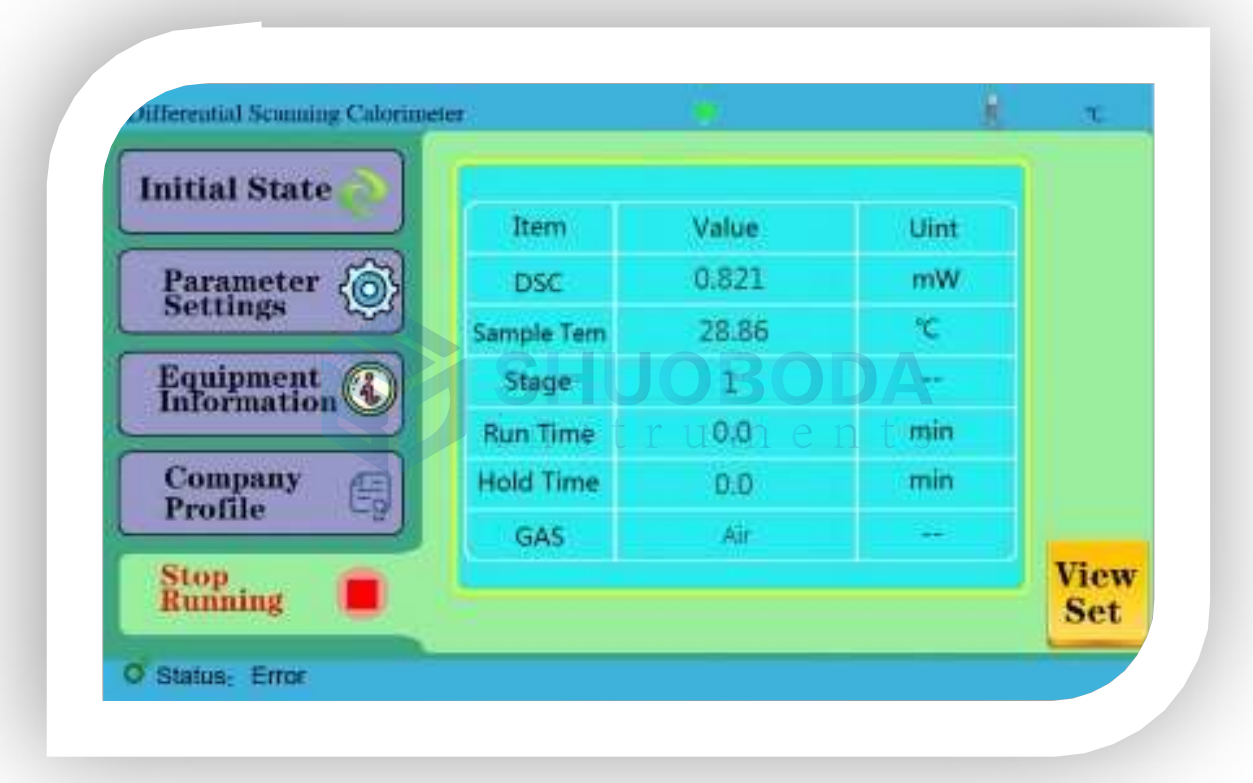

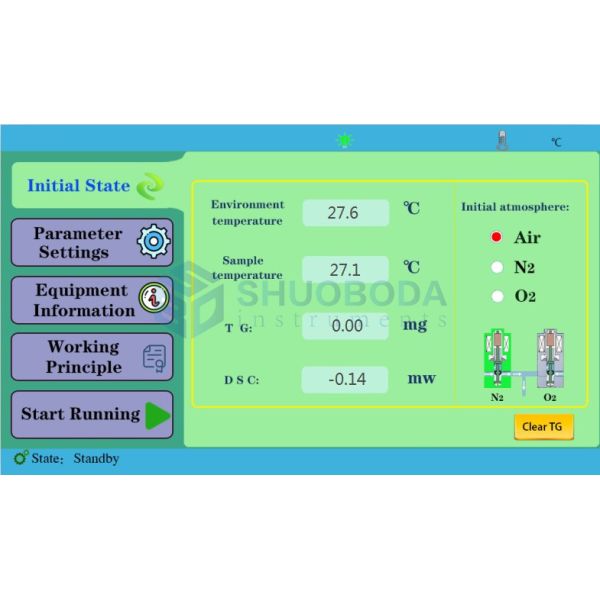

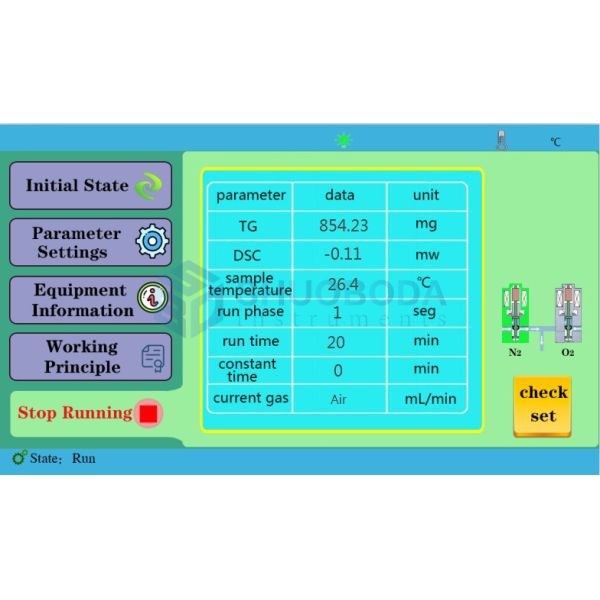

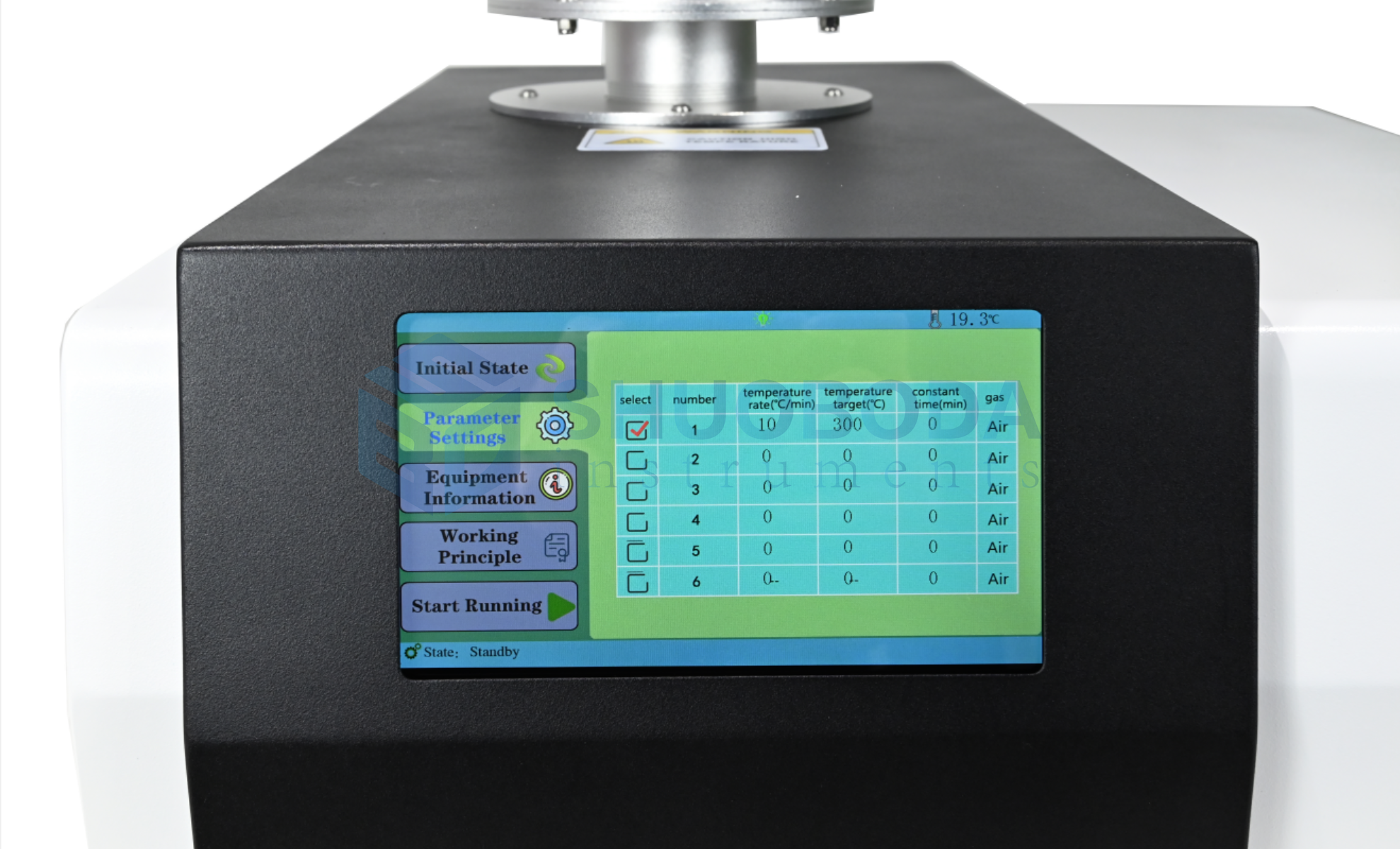

7-inch full color 24bit touch screen, better man-machine interface. TG calibration can be achieved on the touch screen

Interface

Technical parameters

Packing list
