Nuclear Power Plants Radiation Monitoring System At Sanitary Entrances And Exits
Nuclear Power Plants Radiation Monitoring System At Sanitary Entrances And Exits
Specifications
Brand Name :
SHUOBODA
Model Number :
G390-S
Certification :
ISO/CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C,T/T
Supply Ability :
500 sets/month
Delivery Time :
5~8 working days
Packaging Details :
Plywood box
Measurementtype :
Surface contamination detection
Sensitivity :
High sensitivity to low-level contamination
Calibration :
Automatic and manual calibration options
Datastorage :
Internal memory with data logging capability
Detectionmethod :
Alpha and beta radiation measurement
Productname :
Surface Contamination Monitor
Description

Nuclear Power Plants Training Simulation System for Radiation Monitoring at Sanitary Entrances and Exits

Product Description

Nuclear Power Plants Training Simulation System for Radiation Monitoring at Sanitary Entrances and Exits is independently designed manufactured by SHUOBODA and as a set of detection training simulation system for staff of the entrance and exit of nuclear power plant or nuclear facilities site. The system is a comprehensive simulation from several aspects such as appearance, hardware and software functions to restore the real scene on site. Through the actual operation of the simulation equipment, the participants can strengthen their knowledge of the sanitary entrance and exit equipment of the control area understand the flow of entry and exit of the control area, and improve the radiation protection training effect.

Functional features

Simulation of control area access flow.

Simulation measurement process of gate C1, correction of occupancy errors and post-alarm handling.

Simulation measurement process of gate C2, correction of occupancy errors and post-alarm handling.

Simulation measurement process of the CPO and post-alarm handling.

Simulating the use of the turn-on device of the personal dosimeter.

Simulation measurement process of the EPD and post-alarm handling.

Correctly judgement of the waiting posture of trainees for inspection and correct the wrong posture through voice prompts.

Tablet remote alarm.

Computers with tutorial video are equipped at the entrance of Gate C2.

Exterior dimensions and alarm sound are identical to the rea machine.

The software interface and measurement process are identical to the real machine on site.

Technical specifications

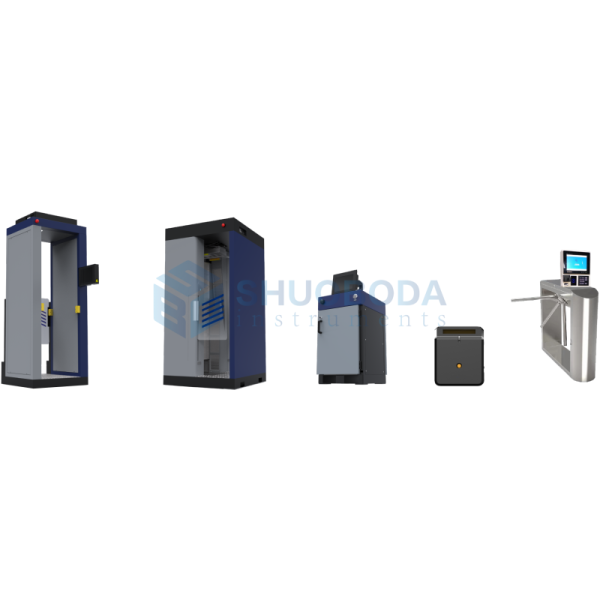

Model number

Product abbreviations

Display screens

Specification size

G390-S

Gate C1

12.1"

2190Hx940Wx603D(mm)

AB333-S

Gate C2

Main screen 12.1"secondary screen12.1"

2350Hx1000Wx1200D(mm)

G337-S

CPO

5.6

700Hx700Wx1000D(mm)

G316-R

Personal Dose Readout

Display screens

276Hx261Wx80D(mm)

B3S

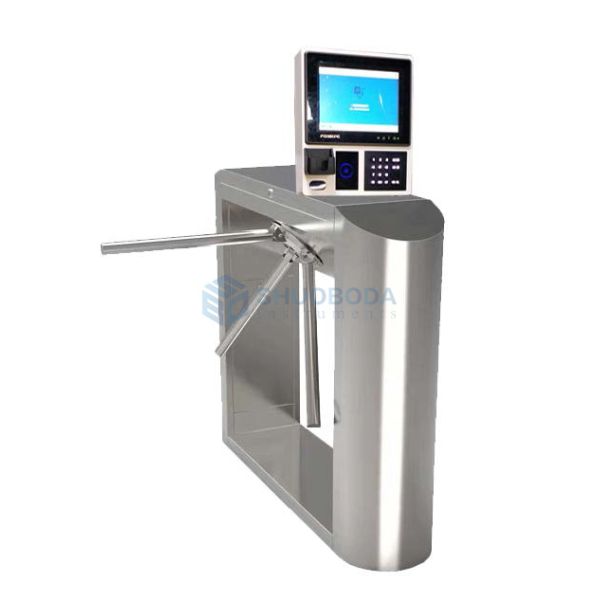

Triangular roller gates

420Hx240Wx1000D(mm) Length of gate lever 500mm

G316-S

Personal dosimeter simulator

87Hx62Wx30D(mm)
