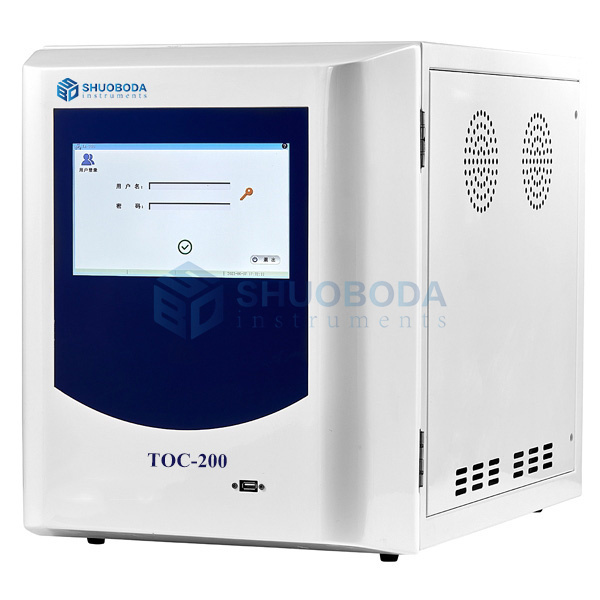

TOC-200 PC Control Lab Test Instrument Large Range Total Organic Carbon Analyzer
TOC-200 PC Control Lab Test Instrument Large Range Total Organic Carbon Analyzer
TOC-200 PC Control Lab Test Instrument Large Range Total Organic Carbon Analyzer
TOC-200 PC Control Lab Test Instrument Large Range Total Organic Carbon Analyzer
TOC-200 PC Control Lab Test Instrument Large Range Total Organic Carbon Analyzer
TOC-200 PC Control Lab Test Instrument Large Range Total Organic Carbon Analyzer
Specifications
Brand Name :
SHUOBODA
Model Number :
TOC-200
Certification :
ISO/CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C,T/T
Supply Ability :
500 sets/month
Delivery Time :
5~8 working days
Packaging Details :
Plywood packing
Detector :
NDIR
Parameters :
TC,TIC,TOC,NPOC
Digestion Mode :
High Temperature Combustion
Operation Mode :
PC Control
Application :
Liquid Sample
Measurement Range :
0~30000mg/l (more than 1000 mg/l Dilution required)
Detection Limit :
50μg/l
Repeatability :
3%
Description

TOC-200 Large Range Total Organic Carbon Analyzer

Application

Widely used in drinking water, industrial water, sewage, wastewater and monitoring of rivers, lakes and oceans, surface water etc.

Main Features

  • Signal management system with our own patent law which has great advantages of online setting, real-time monitoring, self-testing and flow speed control, ensuring high performance and safe operation.
  • Low current system design also ensures operation safety.
  • Different temperature setting for various samples ensures complete sample digestion so as to get more accurate measuring data.
  • Adjust cooling module power according to sampling volume which improves drying performance to ensure dry gas into the detector.
  • Automatic leak check system to avoid operation mistakes and improve instrument performance, so as to ensure operation safety and instrument's safety.
  • Flow rate controlling system to avoid any effect caused by flow rate fluctuation which ensures accurate data.
  • TOC detector with 24 bits data solution extends monitoring range.
  • Controlling system with 32bin processing technology greatly improves performance

TOC-200 PC Control Lab Test Instrument Large Range Total Organic Carbon Analyzer TOC-200 PC Control Lab Test Instrument Large Range Total Organic Carbon Analyzer

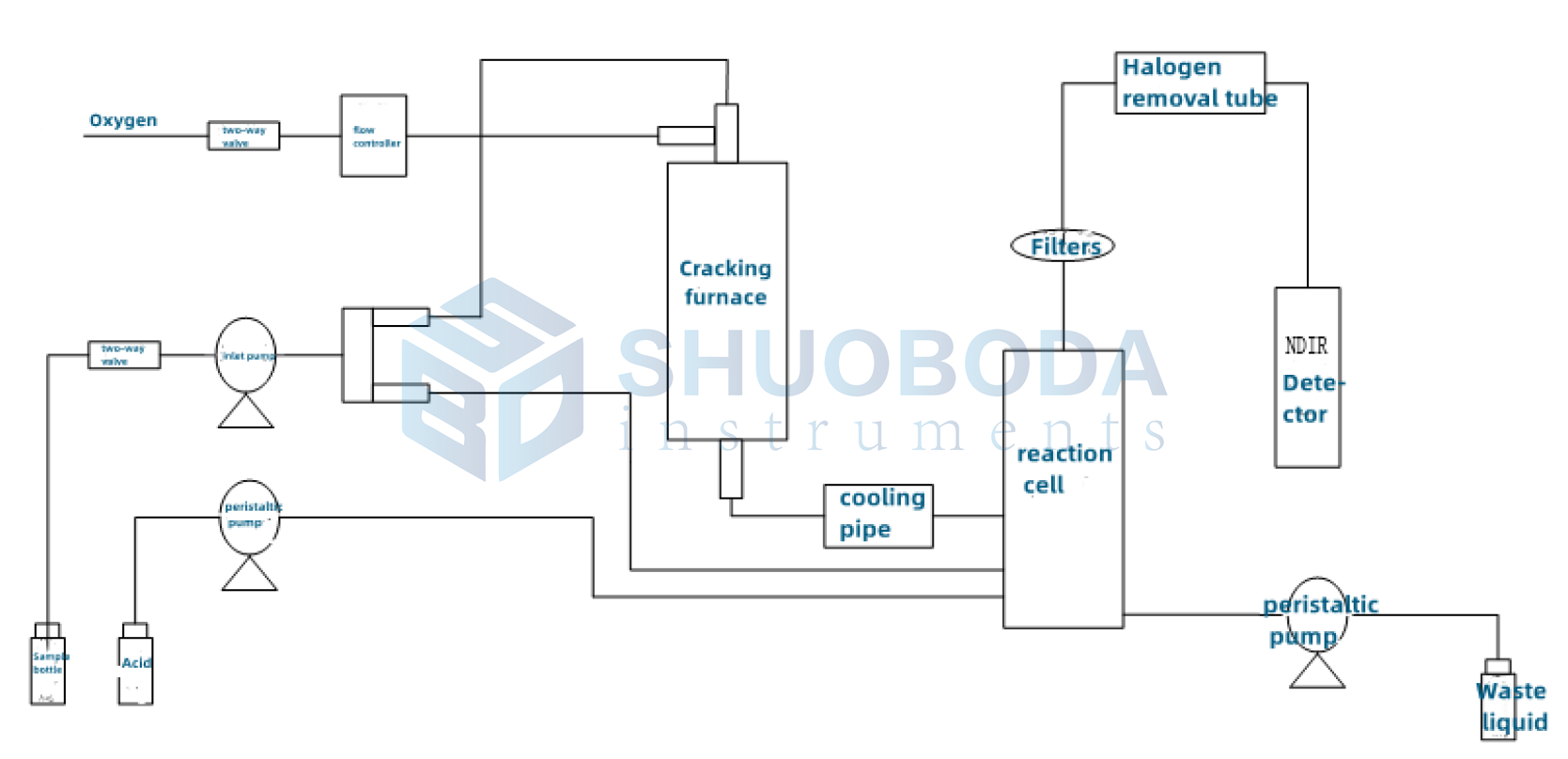

Schematic Diagram of Instrument System

TOC-200 PC Control Lab Test Instrument Large Range Total Organic Carbon Analyzer

Specifications

Model

TOC-200

Detector

NDIR

Parameters

TC,TIC,TOC,NPOC

Digestion Mode

High Temperature Combustion

Operation Mode

PC Control

Application

Liquid Sample

Gas Requirement

0xygen, Nitrogen ≥99.995%

Measurement Range

0~30000mg/l (more than 1000 mg/l Dilution required)

Detection Limit

50μg/l

Repeatability

3%

Maximum Salinity

85g/l

Power

100 - 240 VAC

Data storage

150000 sample test record, 1 million audit trails and quickly query, can create 1000 user names

Data export

PDF test report

Dimensions (mm)

655*455*510

Weight

20kg

Packing List

No.

Subject

Unit

Quantity

1

TOC Analyzer

kit

1

2

Cracking furnace

Kit

1

3

Cerium oxide catalyst

Bag

1

4

Quartz plate

Pack

1

5

Quartz wool

Pack

1

6

Halogen complement

Bottle

1

7

Sample pad

Piece

2

8

Filter membrane

Piece

2

9

0-ring

Pcs

6

10

Combustion tube

pes

2

11

Condenser Coil

Pcs

1

12

Sample bottle

Pc

1

13

Acid bottle

Pc

1

14

Waste bottle

Pc

1

15

Teflon joint (6 to 3)

Kit

1

16

Stainless elbow (8 to 8)

Kit

1

17

Screw (M5)

Pcs

2

18

Connecting pipe (3.2*1.6mm)

Meter

8

19

Oxygen decompression device

Set

1

20

Power cord

Pc

1

21

Touch pen

Pc

1

22

Manual

Pc

1

23

Qualified Certificate

Pc

1

24

Warranty Card

Pc

1

25

Aftersales Commitment Letter

Pc

1

Optional

No.

Subject

Unit

Quantity

1

20 place auto samplers

kit

1

2

72 place auto samplers

Kit

1
