CBT350S Laboratory Carbon Black Content Test Apparatus For 4 Samples
CBT350S Laboratory Carbon Black Content Test Apparatus For 4 Samples
CBT350S Laboratory Carbon Black Content Test Apparatus For 4 Samples
CBT350S Laboratory Carbon Black Content Test Apparatus For 4 Samples
CBT350S Laboratory Carbon Black Content Test Apparatus For 4 Samples
CBT350S Laboratory Carbon Black Content Test Apparatus For 4 Samples
Specifications
Brand Name :
SHUOBODA
Model Number :
CBT350S
Certification :
ISO/CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C,T/T
Supply Ability :
500 sets/month
Delivery Time :
5~8 working days
Packaging Details :
Plywood box
Display :
7-inch capacitive touch screen
Quartz tube size :
φ44×600±5mm
Furnace size :
Φ45×300±5mm
Heating element :
high temperature alloy wire
Length of heating zone :
300mm
Working temperature :
RT~1200°C
Description

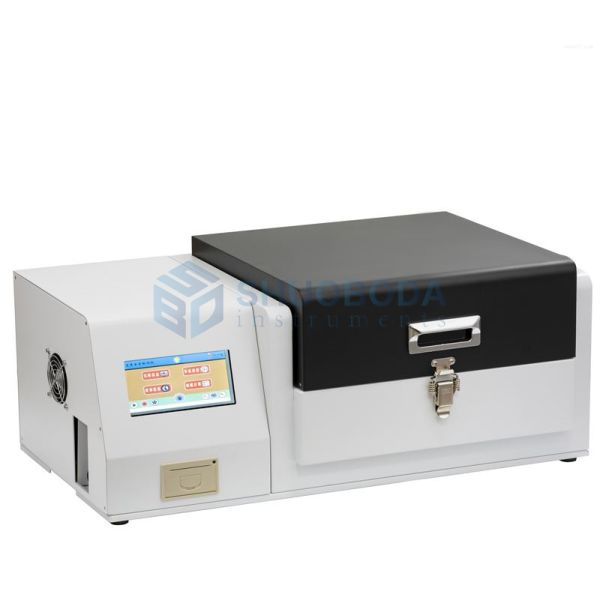

CBT350S Carbon Black Content Tester

Introduction

CBT350S carbon black content detector is a new testing instrument launched by Shuoboda. It adopts an open-top design, which is convenient for placing samples. It can measure 4 samples at a time and calculate carbon black content and ash content with one click.

Features

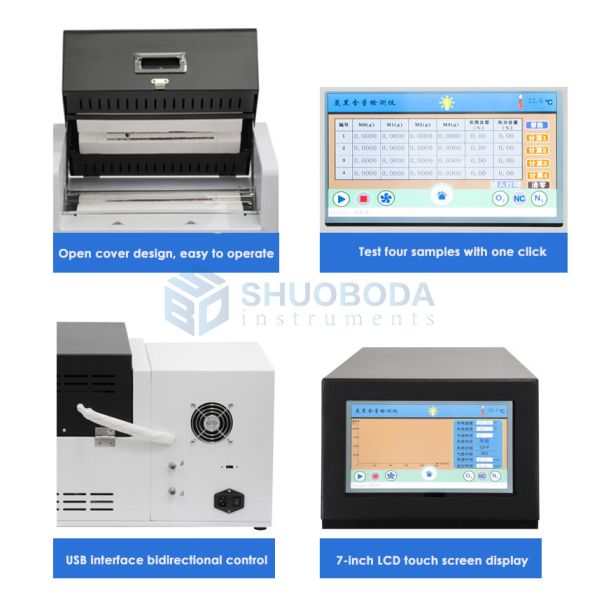

The instrument adopts an open-cover design, making it convenient and quick to test samples.

7-inch LCD touch screen display, extremely friendly operation interface, can be started with one button operation.

can measure 4 samples at a time, improving experimental efficiency and saving working time.

The instrument can set any group of different heating time periods, and can have different heating temperatures, heating rates, and constant temperature times.

One-click calculation function can quickly calculate carbon black and ash content.

Technical Parameter

Model

CBT350s

Display mode

7-inch capacitive touch screen

Quartz tube size

φ44×600±5mm

Furnace size

Φ45×300±5mm

Heating element

high temperature alloy wire

Length of heating zone

300mm

Working temperature

room temperature~1200°C

Temperature control method

Intelligent programmable control, section program can be set.

Power supply

AC220V/50HZ/60HZ

Sensor sensitivity

0.1°C

Pneumatic control

two channels, automatic program switching

Cooling method

rapid cooling (≤20min, 900°C to room temperature)

Number of test samples

Test 4 samples at a time

Data calculation

Built-in calculation function, one-click calculation; can automatically calculate carbon black content and ash content

Exhaust gas collection device

Filtering device (optional).

Customized rail-type sample rack

convenient for taking and placing samples.

Open cover type

Rapid cooling, reducing test cooling time

Product Details

CBT350S Laboratory Carbon Black Content Test Apparatus For 4 Samples
