Plastic Rockwell Hardness Test Equipment 70-100HRE XHRD-150 Motor Driven
Plastic Rockwell Hardness Test Equipment 70-100HRE XHRD-150 Motor Driven
Specifications
Brand Name :
SAMYON
Model Number :
XHRD-150
Certification :
ISO
Place of Origin :
CN
MOQ :
1set
Price :
Can be negotiated
Payment Terms :
Western Union, MoneyGram, , T/T, D/P, D/A
Supply Ability :
100sets per week
Delivery Time :
3-5days
Packaging Details :
Wooden case
Name :
Plastic Rockwell Hardness tester
Standard :
ISO 2039-2:1987
Test force :
588.4, 980.7, 1471N
Measuring range :
70-100HRE
Depth of throat :
135mm
Max sample height :
150mm
Description

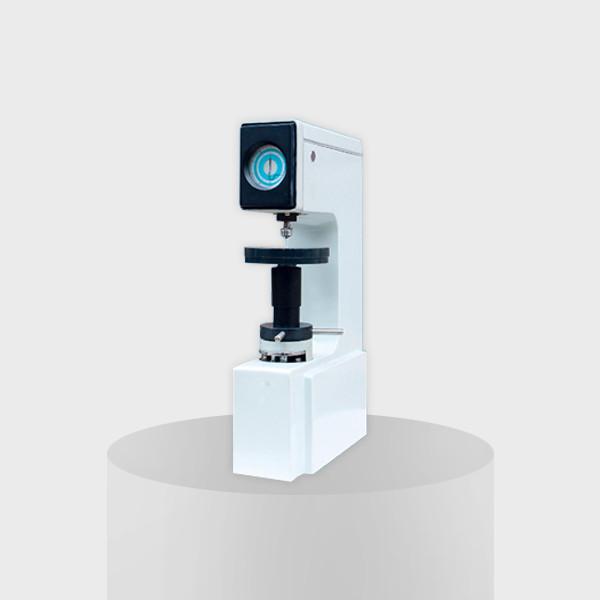

Model XHRD-150 Motor-Driven Plastic Rockwell Hardness Tester For Testing Rockwell Hardness Of Plastic

Model Xhrd-150 Motor-Driven Plastic Rockwell Hardness Tester

Application:

It is used to determine the Rockwell hardness of plastic, composite materials, all kinds of friction materials, soft metals and non-metal soft materials.

Standard:

ISO 2039-2:1987 Plastics — Determination of hardness — Part 2: Rockwell hardness

GB 9342-88 Plastics – Determination of hardness by the ball indentation method-Rockwell hardness

JB/T 7409-94 Technical specification for Plastics Rockwell hardness testing machines.

Parameters:

Item Name Details
1 Test force 588.4, 980.7, 1471N (60, 100, 150kg)
2 Measuring range 70-100HRE, 50-115HRL, 50-115HRM, 50-115HRR
3 Depth of throat 135mm
4 Max. height of test piece 150mm
5 Min. scale value 0.5HR
6 Power supply 220V AC or 110V AC, 50 or 60Hz
7 Dimensions 505 x 250 x 700mm
8 Weight approx. 70kg

Features:

1. Precision conforms to the Standards of JB/T 7409

2. Frictionless loading shaft, high precision testing force

3. Automatic testing process, no human operating error

Standard accessories

Large flat anvil: 1 pc.

Small flat anvil: 1 pc.

V-notch anvil: 1 pc.

Steel ball penetrator: 1/8", 1/4", 1/2", 1 pc. each

Plastic Rockwell standardized block: 4 pcs.
