UP-8010 Pneumatic Clamp Digital Fabric Water Permeability Tester with 0.5% Accuracy and 100cm2 Sample Chuck Area
UP-8010 Pneumatic Clamp Digital Fabric Water Permeability Tester with 0.5% Accuracy and 100cm2 Sample Chuck Area
UP-8010 Pneumatic Clamp Digital Fabric Water Permeability Tester with 0.5% Accuracy and 100cm2 Sample Chuck Area
UP-8010 Pneumatic Clamp Digital Fabric Water Permeability Tester with 0.5% Accuracy and 100cm2 Sample Chuck Area
UP-8010 Pneumatic Clamp Digital Fabric Water Permeability Tester with 0.5% Accuracy and 100cm2 Sample Chuck Area
UP-8010 Pneumatic Clamp Digital Fabric Water Permeability Tester with 0.5% Accuracy and 100cm2 Sample Chuck Area
UP-8010 Pneumatic Clamp Digital Fabric Water Permeability Tester with 0.5% Accuracy and 100cm2 Sample Chuck Area
UP-8010 Pneumatic Clamp Digital Fabric Water Permeability Tester with 0.5% Accuracy and 100cm2 Sample Chuck Area
Specifications
Certification :
CE, ISO
MOQ :
1
Price :
Negotiable
Brand Name :
YOUBI
Model Number :
UP-8010
Place of Origin :
CHINA
Payment Terms :
D/P,T/T,Western Union
Supply Ability :
200 Unit/Month
Delivery Time :
5-15 work days
Packaging Details :
Professional Export Wooden Box Packaging
Model NO. :
UP-8010
Measuring Range :
1kpa~300kpa
Accuracy :
0.5%
Resolution :
0.01
Sample Chuck Area :
100cm2
Water Tank Capacity :
1000ml
Specification :
Refer to the actual size specifications
Production Capacity :
200 Unit/Month
Description

UP-8010 Pneumatic Clamp Digital Fabric Water Permeability Tester for Compact Fabrics

Product Description:

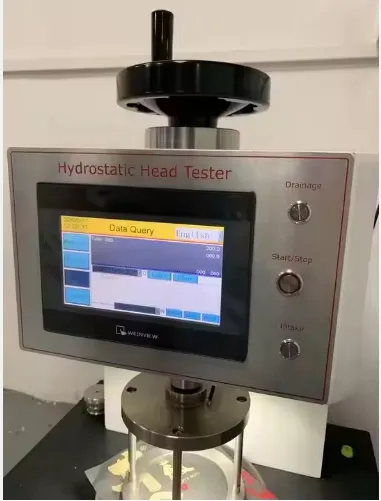

The hydrostatic head tester accurately and quickly determines the resistance of fabrics (coated, uncoated, and non-woven) to water penetration under pressure, while firmly clamping them in a test bench in a standard area through dynamic and static testing methods

Applicable standards:
GB/T 4744-2013 textile water-repellent performance testing and evacuation hydrostatic pressure method;ISO-811,AATCC127,FZ/T 01004

Technical Parameters:

1.Sample clamping method: manual;

2.Measuring range: 0~300kPa (30mH2O)/0~100kPa (10mH2O)/0~50kPa (5mH2O) range optional;

3.Resolution 0.01kPa (1mmH2O);

4.Measurement accuracy: ≤±0.5% F•S;

5.Test times: ≤99 times, optional delete function;

6.Test methods: pressurization method, constant pressure method and other test methods;

7.Constant pressure method holding time: 0~99999.9S; Timing accuracy: ±0.1S;

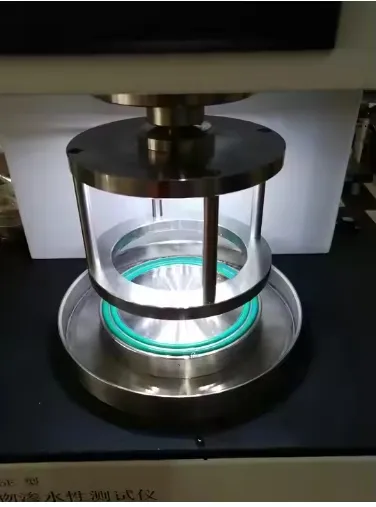

8.Sample clamp area: 100cm²;

9.Total test time timing range: 0~999999.9, timing accuracy: ±0.1S;

10.Pressurization speed: 0.5~50kPa/min (50~5000mmH2O/min) digitally set arbitrarily;

11.Power supply: AC220V, 50Hz, 250W;

12.Dimensions: 470×410×60mm;

13.Weight: about 25kg;


UP-8010 Pneumatic Clamp Digital Fabric Water Permeability Tester with 0.5% Accuracy and 100cm2 Sample Chuck Area
UP-8010 Pneumatic Clamp Digital Fabric Water Permeability Tester with 0.5% Accuracy and 100cm2 Sample Chuck Area
UP-8010 Pneumatic Clamp Digital Fabric Water Permeability Tester with 0.5% Accuracy and 100cm2 Sample Chuck Area
UP-8010 Pneumatic Clamp Digital Fabric Water Permeability Tester with 0.5% Accuracy and 100cm2 Sample Chuck Area
UP-8010 Pneumatic Clamp Digital Fabric Water Permeability Tester with 0.5% Accuracy and 100cm2 Sample Chuck Area
Our service:
During the whole business process, we offer a Consultative Selling services.
1)Customer inquiry process:
Discussing testing requirements and technical details, suggested suitable products to customer to confirm.
Then quote the most suitable price according to customer requirements.

2)Specifications customize process:
Drawing related drawings to confirm with customer for customized requirements. Offer reference photos to show the appearance of the product. Then, confirm the final solution and confirm the final price with the customer.

3)Production and delivery process:
We will produce the machines according to confirmed PO requirements. Offering photos to show the production process.
After finishing production, offer photos to the customer to confirm again with the machine. Then do your own factory calibration or third-party calibration(as per customer requirements). Check and test all the details and then arrange packing.
Delivering the products is confirmed shipping time and informed the customer.

4)Installation and after-sale service:
Defines installing those products in the field and providing after-sales support.

FAQ:
1. Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?
Yes, we are the one of professional manufacturers of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment... in China. Every machine purchased from our factory has 12 month warranty after shipment. Generally, we offer 12 months for FREE maintenance. while considering sea transportation, we can extend 2 months for our customers.
Moreover, If your machine doesn't work, you can send us an e-mail or call us we will try our best to find the problem through our conversation or by video chat if necessary. Once we have confirmed the problem, the solution will be offered within 24 to 48 hours.
2. What about the delivery term?
For our standard machine which means normal machines, If we have stock in the warehouse, is 3-7 working days;
If there is no stock, normally, the delivery time is 15-20 working days after payment is received;
If you are in urgent need, we will make a special arrangement for you.
3. Do you accept customization services? Can I have my logo on the machine?
Yes, of course. We can not only offer standard machines but also customized machines according to your requirements. And we can also put your logo on the machine which means we offer OEM and ODM service.
4. How can I install and use the machine?
Once you have ordered the testing machines from us, we will send you the operation manual or video in English version through Email.
Most of our machine is shipped with a whole part, which means it is already installed, you just need to connect the power cable and start to use it. And if it's necessary, we can also assist you to install your machine on-site.
