Satra TM 21 EN 19956 Footwear Testing Equipment 60blows/min Heel Fatigue Tester
Satra TM 21 EN 19956 Footwear Testing Equipment 60blows/min Heel Fatigue Tester
Satra TM 21 EN 19956 Footwear Testing Equipment 60blows/min Heel Fatigue Tester
Satra TM 21 EN 19956 Footwear Testing Equipment 60blows/min Heel Fatigue Tester
Specifications
MOQ :
1 Unit
Price :
Negotiable
Place of Origin :
CHINA
Certification :
CE,ISO
Packaging Details :
Professional export packing
Delivery Time :
5-10work days
Payment Terms :
D/P,T/T,Western Union,Paypal,Money Gram
Supply Ability :
30 Unit/month
Brand Name :
YOUBI
Model Number :
UP-4025
Product name :
Footwear Testing Equipment
Model NO. :
UP-4025
Impact frequency :
60blows/min
Impact angle :
90degree
Impact energy :
0.68J 0.02J
Service Support :
OEM ODM
Language :
Chinese and English
Applications :
Shoe Heel
Specification :
Refer to the actual size specifications
Description

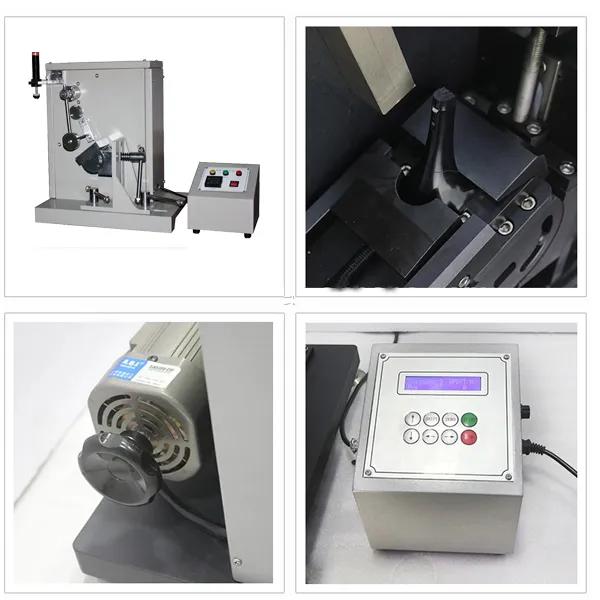

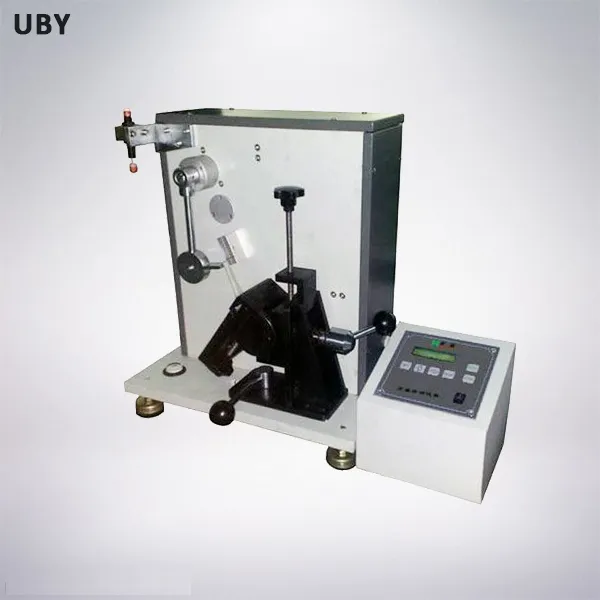

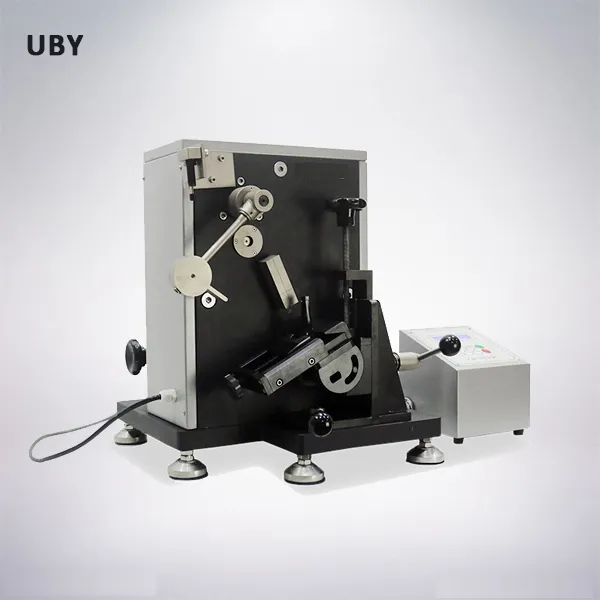

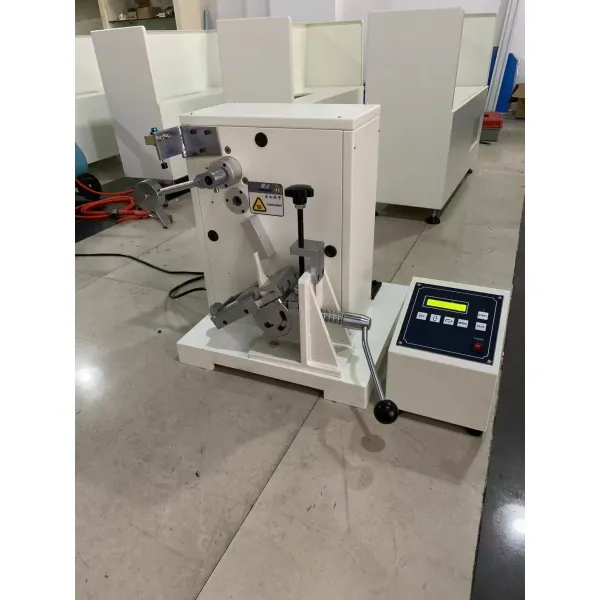

SATRA TM 21 EN 19956 Durable Footwear Testing Equipment Heel Fatigue Tester

Application:
The tester is used to determine the resistance of medium and high heels of ladies' shoes under repeated small impacts to the heel tip . A heel is subjected to blows, each of specified energy, delivered by a pendulum once a second. Testing continues until failure of the heel takes place or until satisfactory fatigue resistance is obvious.

Standard:
BS-5131 4.9, ISO 19956, QB/T2864, SATRA TM21

Key Specification:


Model

UP-4025

Impact energy

0.68J 0.02J

Impact frequency

60blows/min

Impact angle

90degree

Pendulum

57 1 mm, Thickness 20 1 mm

Pendulum shaft

12.5 1 mm

Striker head ( L×W×T)

35 ×20×6mm

Striker head corner radius

R3mm

Pendulum Moment

0.68N.m

Counter

LCD digital display 0 - 999999 ( adjustable)

Satra TM 21 EN 19956 Footwear Testing Equipment 60blows/min Heel Fatigue Tester
Satra TM 21 EN 19956 Footwear Testing Equipment 60blows/min Heel Fatigue Tester
Satra TM 21 EN 19956 Footwear Testing Equipment 60blows/min Heel Fatigue Tester
Satra TM 21 EN 19956 Footwear Testing Equipment 60blows/min Heel Fatigue Tester

Our service:
During the whole business process, we offer a Consultative Selling services.
1)Customer inquiry process:
Discussing testing requirements and technical details, suggested suitable products to customer to confirm.
Then quote the most suitable price according to customer requirements.

2)Specifications customize process:
Drawing related drawings to confirm with customer for customized requirements. Offer reference photos to show the appearance of the product. Then, confirm the final solution and confirm the final price with the customer.

3)Production and delivery process:
We will produce the machines according to confirmed PO requirements. Offering photos to show the production process.
After finishing production, offer photos to the customer to confirm again with the machine. Then do your own factory calibration or third-party calibration(as per customer requirements). Check and test all the details and then arrange packing.
Delivering the products is confirmed shipping time and informed the customer.

4)Installation and after-sale service:
Defines installing those products in the field and providing after-sales support.

FAQ:
1. Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?
Yes, we are the one of professional manufacturers of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment... in China. Every machine purchased from our factory has 12 month warranty after shipment. Generally, we offer 12 months for FREE maintenance. while considering sea transportation, we can extend 2 months for our customers.
Moreover, If your machine doesn't work, you can send us an e-mail or call us we will try our best to find the problem through our conversation or by video chat if necessary. Once we have confirmed the problem, the solution will be offered within 24 to 48 hours.
2. What about the delivery term?
For our standard machine which means normal machines, If we have stock in the warehouse, is 3-7 working days;
If there is no stock, normally, the delivery time is 15-20 working days after payment is received;
If you are in urgent need, we will make a special arrangement for you.
3. Do you accept customization services? Can I have my logo on the machine?
Yes, of course. We can not only offer standard machines but also customized machines according to your requirements. And we can also put your logo on the machine which means we offer OEM and ODM service.
4. How can I install and use the machine?
Once you have ordered the testing machines from us, we will send you the operation manual or video in English version through Email.
Most of our machine is shipped with a whole part, which means it is already installed, you just need to connect the power cable and start to use it. And if it's necessary, we can also assist you to install your machine on-site.
