UP-4034 Reliable Shoe Sole Flex Tester Machine 140 Times/Min For Leather / Footwear
UP-4034 Reliable Shoe Sole Flex Tester Machine 140 Times/Min For Leather / Footwear
UP-4034 Reliable Shoe Sole Flex Tester Machine 140 Times/Min For Leather / Footwear
UP-4034 Reliable Shoe Sole Flex Tester Machine 140 Times/Min For Leather / Footwear
Specifications
MOQ :
1 Unit
Price :
Negotiable
Place of Origin :
CHINA
Certification :
CE,ISO
Packaging Details :
Professional export packing
Delivery Time :
5-10work days
Payment Terms :
D/P,T/T,Western Union,Paypal,Money Gram
Supply Ability :
30 Unit/month
Brand Name :
YOUBI
Model Number :
UP-4034
Product name :
Flex Tester Machine
Model NO. :
UP-4034
Diameter of mandrel :
30mm
Bending speed :
125-150cpm
Bending angle :
90±2
Service Support :
OEM ODM
Language :
Chinese and English
Applications :
Leather,Shoes
Specification :
Refer to the actual size specifications
Description
Reliable Shoe Sole Flex Tester Bend Speed 140 Times Per Minute
Product Introduction

Footwear Sole Flexing Resistant Test Machine is used to measure the flexing resistance of shoe soles under continuous movement. Before test, plunge some holes at the maximum bending position, and mount specimen at both grips, one fixed, one movable. Specimen runs flexing owing to the movement of machine. After a certain test cycles, remove the specimen and check its difference of incision length.

Key Features
  • Plunge holes at maximum bending position and mount specimen at both grips
  • One fixed grip and one movable grip configuration
  • Specimen flexing through machine movement
  • Measure incision length difference after specified test cycles
Technical Specifications
Parameter Specification
Vertical fixture width 25 mm
Vertical fixture weight 0.28~0.34 kg
Two vertical fixture distance 6.35 mm
Reciprocating stroke 75 mm
Reciprocating frequency 30 cpm
Specimen closed angle 60°
Specimen opening angle 30°
Counter 6-digital
Motor 1/4 HP
Model UP-4034
Bending angle 90±2°
Bending speed 125-150 cpm
Diameter of mandrel 30 mm
Width of grips 144 mm
Display method 6 digital LCD display
Dimensions 95x42x55 cm
Weight 126 kg
Compliance Standards
International Standards Additional Standards
ISO 20344 8.4.2 GB/T 20991 8.4.2 (section)
ISO 17707 ISO 17694
SATRA TM161

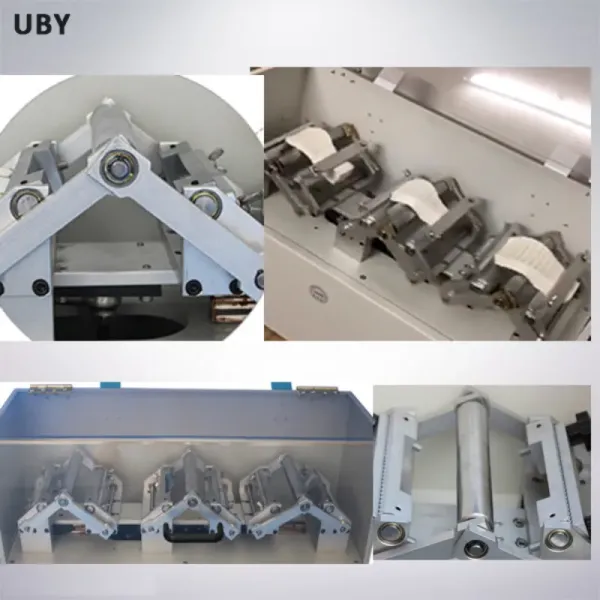

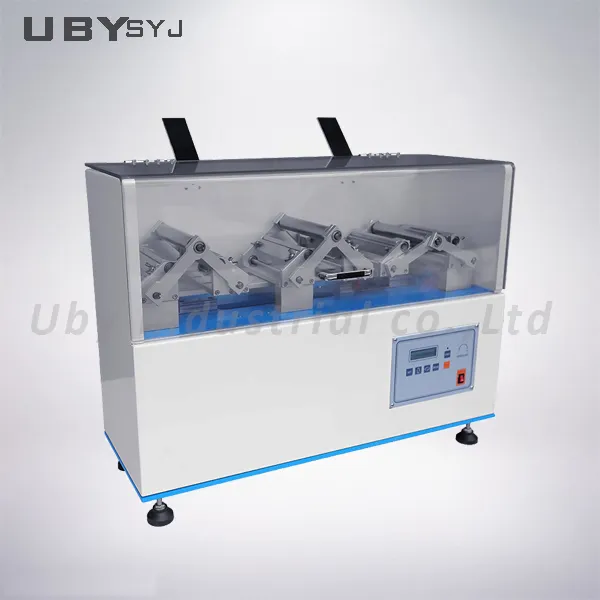

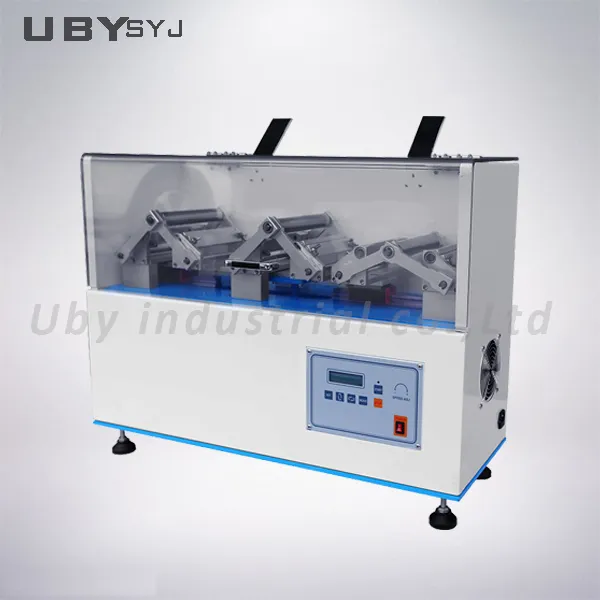

Product Images
UP-4034 Reliable Shoe Sole Flex Tester Machine 140 Times/Min For Leather / Footwear UP-4034 Reliable Shoe Sole Flex Tester Machine 140 Times/Min For Leather / Footwear UP-4034 Reliable Shoe Sole Flex Tester Machine 140 Times/Min For Leather / Footwear UP-4034 Reliable Shoe Sole Flex Tester Machine 140 Times/Min For Leather / Footwear UP-4034 Reliable Shoe Sole Flex Tester Machine 140 Times/Min For Leather / Footwear
Our Service Process
  • Customer Inquiry: Discuss testing requirements, suggest suitable products, and provide quotes
  • Specifications Customization: Create drawings and reference photos for customized requirements
  • Production and Delivery: Manufacture according to confirmed requirements with progress updates
  • Installation and After-Sales: Provide installation support and comprehensive after-sales service
Frequently Asked Questions
Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?

Yes, we are one of the professional manufacturers of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment in China. Every machine purchased from our factory has 12 month warranty after shipment. We offer 12 months for FREE maintenance, extended to 14 months considering sea transportation. If your machine doesn't work, contact us via email or phone for troubleshooting assistance with solutions provided within 24 to 48 hours.

What about the delivery term?

Standard machines in stock: 3-7 working days; No stock: 15-20 working days after payment; Urgent requirements receive special arrangement.

Do you accept customization services? Can I have my logo on the machine?

Yes, we offer both standard and customized machines according to your requirements, including OEM and ODM services with your logo.

How can I install and use the machine?

We provide English operation manuals and videos via email. Most machines are shipped fully assembled - simply connect the power cable and start using. On-site installation assistance is available when necessary.
