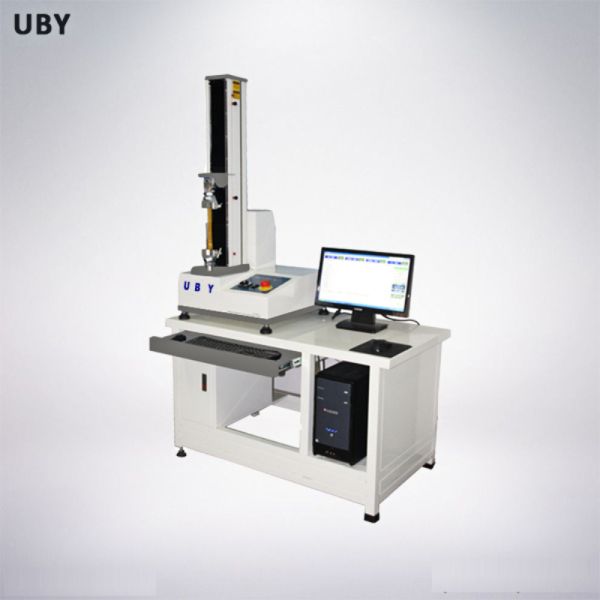

UP-2003 Robust Shear Test Machine High Speed 4 Point Bending Test Machine
UP-2003 Robust Shear Test Machine High Speed 4 Point Bending Test Machine
UP-2003 Robust Shear Test Machine High Speed 4 Point Bending Test Machine
UP-2003 Robust Shear Test Machine High Speed 4 Point Bending Test Machine
Specifications
MOQ :
1 Unit
Price :
$299~$4999
Brand Name :
YOUBI
Model Number :
UP-2003
Certification :
CE,ISO
Place of Origin :
CHINA
Payment Terms :
T/T,D/P,Western Union,Paypal,Money Gram
Supply Ability :
30 Unit/month
Delivery Time :
5-15 work days
Packaging Details :
Professional Export Wooden Box Packaging
Product name :
Shear Test Machine
Load Resolution :
1/50000
Load Accuracy :
±0.25%
Stroke (Exclude The Grips) :
650mm, 800mm (Optional)
Effective Width :
400mm, 600mm (Optional)
Test Speed :
0.001~300mm/Min
Maxcapacity :
20-100000kN
Accuracy Grade :
0.5
Description

up-2003 Robust Shear Test Machine Four Point High-Speed Bending Test Machine


Four-Point High-Speed Bending Test Machine is specifically designed to simulate the bending resistance of materials or structural components under high-speed impact or transient loading. Its core lies in a high-speed actuator (typically servo-hydraulic or electromechanical) that applies a concentrated dynamic load to the center of the specimen at extremely high velocities. The specimen is placed between two fixed lower support rollers and two movable upper loading rollers, creating a "four-point bending" stress state. This configuration ensures the specimen's pure bending section experiences a constant bending moment, allowing for precise measurement of its bending strength, modulus, energy absorption, and failure modes under high-speed conditions.

Applications:
Performance evaluation of automotive crash beams, lightweight materials (e.g., composites, high-strength steel), bumpers, electronic device housings, and packaging materials under high-speed impact.


Specification:

Design Standards ASTM D628,ASTM D638,ASTM D412,GB16491-2008,HGT 3844-2008 QBT 11130-1991,GB 13022-1991,HGT 3849-2008,GB 6349-1986 GB/T 1040.2-2006 2411,ISO 4587,ISO/TS 11405,ASTM E4,BS 1610,DIN 51221,ISO 7500,EN 10002
Model UP-2003A UP-2003B
Range of speed 0.5-1000mm/min 50-500mm/min
Motor Japan Panasonic Servo Motor AC Motor
Capacity choice 5,10,20,50,100,200,500,1000,2000,5000KG optional
Resolution 1/250,000 1/150,000
Effective testing space 400mm MAX
Accuracy ±0.5%
Operation method Windows XP,Win7 operation,computer control
Accessories computer, printer, system operation manual

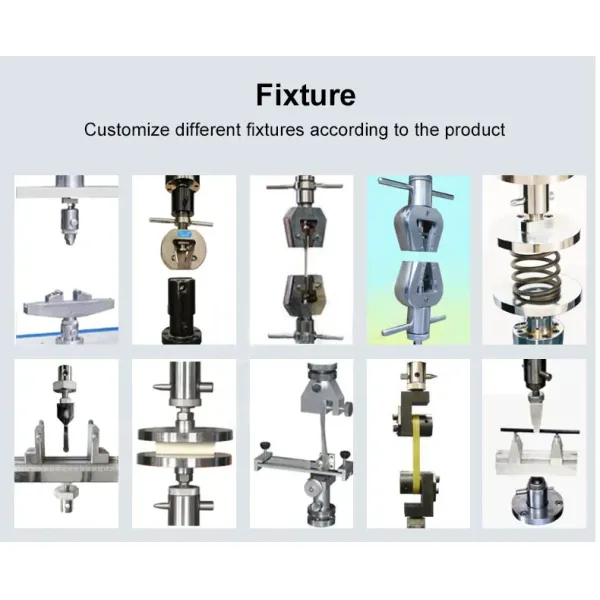

Optional accessories customized clamps by appointed, force sensors, , printer, and operation manual
Weight 400KG
Dimention (W×D×H)80×50×150CM
Power 1PH, AC220V, 50/60Hz
Stroke protection Upper and lower protection, prevent over preset
Force protection system setting
Emergency stop device Handling emergencies

UP-2003 Robust Shear Test Machine High Speed 4 Point Bending Test Machine
UP-2003 Robust Shear Test Machine High Speed 4 Point Bending Test Machine
UP-2003 Robust Shear Test Machine High Speed 4 Point Bending Test Machine
Our service:
During the whole business process, we offer a Consultative Selling services.
1)Customer inquiry process:
Discussing testing requirements and technical details, suggested suitable products to customer to confirm.
Then quote the most suitable price according to customer requirements.

2)Specifications customize process:
Drawing related drawings to confirm with customer for customized requirements. Offer reference photos to show the appearance of the product. Then, confirm the final solution and confirm the final price with the customer.

3)Production and delivery process:
We will produce the machines according to confirmed PO requirements. Offering photos to show the production process.
After finishing production, offer photos to the customer to confirm again with the machine. Then do your own factory calibration or third-party calibration(as per customer requirements). Check and test all the details and then arrange packing.
Delivering the products is confirmed shipping time and informed the customer.

4)Installation and after-sale service:
Defines installing those products in the field and providing after-sales support.

FAQ:
1. Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?
Yes, we are the one of professional manufacturers of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment... in China. Every machine purchased from our factory has 12 month warranty after shipment. Generally, we offer 12 months for FREE maintenance. while considering sea transportation, we can extend 2 months for our customers.
Moreover, If your machine doesn't work, you can send us an e-mail or call us we will try our best to find the problem through our conversation or by video chat if necessary. Once we have confirmed the problem, the solution will be offered within 24 to 48 hours.
2. What about the delivery term?
For our standard machine which means normal machines, If we have stock in the warehouse, is 3-7 working days;
If there is no stock, normally, the delivery time is 15-20 working days after payment is received;
If you are in urgent need, we will make a special arrangement for you.
3. Do you accept customization services? Can I have my logo on the machine?
Yes, of course. We can not only offer standard machines but also customized machines according to your requirements. And we can also put your logo on the machine which means we offer OEM and ODM service.
4. How can I install and use the machine?
Once you have ordered the testing machines from us, we will send you the operation manual or video in English version through Email.
Most of our machine is shipped with a whole part, which means it is already installed, you just need to connect the power cable and start to use it. And if it's necessary, we can also assist you to install your machine on-site.
