SUS304 Stainless Steel Accelerated Aging Testing Chamber With Solar Simulation System
SUS304 Stainless Steel Accelerated Aging Testing Chamber With Solar Simulation System
SUS304 Stainless Steel Accelerated Aging Testing Chamber With Solar Simulation System
SUS304 Stainless Steel Accelerated Aging Testing Chamber With Solar Simulation System
Specifications
Certification :
CE,ISO
MOQ :
1 Unit
Price :
Negotiable
Place of Origin :
CHINA
Brand Name :
YOUBI
Payment Terms :
T/T,D/P,Western Union,Paypal,Money Gram
Packaging Details :
Professional Export Wooden Box Packaging
Supply Ability :
30 Unit/month
Model Number :
UP-6200
Delivery Time :
5-15 work days
Product name :
Accelerated Aging Testing Chamber
Model NO. :
UP-6200
UV Lamp :
8 PCS
UVA :
340 Lamps
UVB :
313 Lamps
Himidity Range :
95% R.H
Materials :
SUS#304 Stainless Steel
Warranty :
1 Year
Custom Service :
OEM,ODM
Size Service :
Support Customer Customization
Description

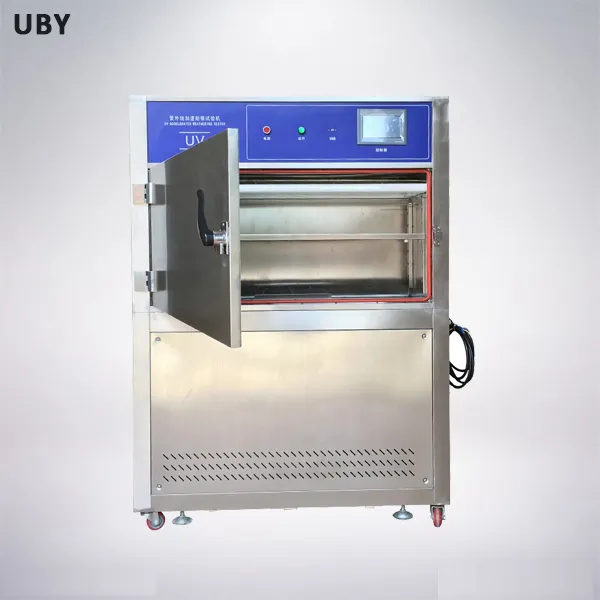

UVB & UVA 340 Lamp Paint Accelerated Aging Testing Chamber Solar Simulation System

Uses: Widely used in paint,coating,plastic &rubber material,printing & packing,adhesive,car&motorcycle,cosmetic,metal,electron,electroplate industry,etc.

Standard: ASTM G153, ASTM G154, ASTM D4329, ASTM D4799, ASTM 4587, SAE J2020, ISO4892.

Characteristic:
1. Accelerated Weathering Tester chamber box use numerical control machine processes to shape,the appearance is attractive and beautiful,case cover is bothway flip-cover type, operation is easy.
2. Chamber inside and outside material is imported super #SUS stainless steel,increasing the chamber apperance texture and cleanliness.
3. Heating way is inner tank water channel to heat,heating is quickly and the temperature distribution is uniform.
4. Drainage system uses vortex-flow type and U type sediment device to drainage which is easy to clean.
5. QUV design fit with user-friendly,easy operation, safe and reliable.
6. djustable speciman setting up thickness,easy installing.
7. The upward rotating door do not hinder user operation.
8. Unique condesation device only needs tap water to meet demands.
9. Water heater is under of container,longtime life and convenient maintainance.
10. Water level is controlled out of QUV,easy monitoring.
11. Wheel makes moving easy.
12. Computer programming easy and convenient.
13. Irradation calibrator extends longtime life.
14. English and chinese manual.

Technical parameters:

Model UP-6200
Working chamber size(CM) 45×117×50
Outside size(CM) 70×135×145
Rate of power 4.0(KW)
Tube number UV Lamp 8, each side 4
Performance
index		 Temperature Range RT+10ºC~70ºC
Humidity Range ≥95%R.H
Tube Distance 35mm
Distance between sample and tube 50mm
Supporting sample plate quantity Length 300mm×Width75mm,About 20 pcs
Ultraviolet wavelength 290nm~400nm UV-A340,UV-B313,UV-C351
Tube rate of power 40W

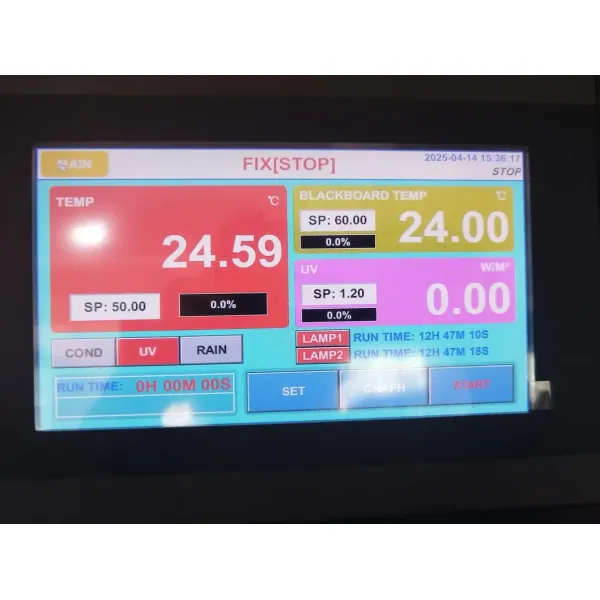

Control system Temperature controller Imported LED,digital P.I.D + S.S.R. Microcomputer integration controller
Time controller Imported programmable time integration controller
Illumination heating system All autonomous system,nichrome heating.
Condensation Humidity System Stainless steel surface evaporative humidifier
Blackboard temperature Thermometal blackboard thermometer
water supply system Humidification water supply uses automatic controlling
Exposure Way Moisture condensation exposure and illumination radiation exposure
Safety protection leakage,short circuit,over-temperature,hydropenia,overcurrent protection


SUS304 Stainless Steel Accelerated Aging Testing Chamber With Solar Simulation System
SUS304 Stainless Steel Accelerated Aging Testing Chamber With Solar Simulation System
SUS304 Stainless Steel Accelerated Aging Testing Chamber With Solar Simulation System

Our service:
During the whole business process, we offer a Consultative Selling services.
1)Customer inquiry process:
Discussing testing requirements and technical details, suggested suitable products to customer to confirm.
Then quote the most suitable price according to customer requirements.

2)Specifications customize process:
Drawing related drawings to confirm with customer for customized requirements. Offer reference photos to show the appearance of the product. Then, confirm the final solution and confirm the final price with the customer.

3)Production and delivery process:
We will produce the machines according to confirmed PO requirements. Offering photos to show the production process.
After finishing production, offer photos to the customer to confirm again with the machine. Then do your own factory calibration or third-party calibration(as per customer requirements). Check and test all the details and then arrange packing.
Delivering the products is confirmed shipping time and informed the customer.

4)Installation and after-sale service:
Defines installing those products in the field and providing after-sales support.

FAQ:
1. Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?
Yes, we are the one of professional manufacturers of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment... in China. Every machine purchased from our factory has 12 month warranty after shipment. Generally, we offer 12 months for FREE maintenance. while considering sea transportation, we can extend 2 months for our customers.
Moreover, If your machine doesn't work, you can send us an e-mail or call us we will try our best to find the problem through our conversation or by video chat if necessary. Once we have confirmed the problem, the solution will be offered within 24 to 48 hours.
2. What about the delivery term?
For our standard machine which means normal machines, If we have stock in the warehouse, is 3-7 working days;
If there is no stock, normally, the delivery time is 15-20 working days after payment is received;
If you are in urgent need, we will make a special arrangement for you.
3. Do you accept customization services? Can I have my logo on the machine?
Yes, of course. We can not only offer standard machines but also customized machines according to your requirements. And we can also put your logo on the machine which means we offer OEM and ODM service.
4. How can I install and use the machine?
Once you have ordered the testing machines from us, we will send you the operation manual or video in English version through Email.
Most of our machine is shipped with a whole part, which means it is already installed, you just need to connect the power cable and start to use it. And if it's necessary, we can also assist you to install your machine on-site.
