Computer Control Plastic Pallet Strength Compression Tester with Digital Display and Max Capacity 20-100000kN for Packaging Testing
Computer Control Plastic Pallet Strength Compression Tester with Digital Display and Max Capacity 20-100000kN for Packaging Testing
Computer Control Plastic Pallet Strength Compression Tester with Digital Display and Max Capacity 20-100000kN for Packaging Testing
Computer Control Plastic Pallet Strength Compression Tester with Digital Display and Max Capacity 20-100000kN for Packaging Testing
Computer Control Plastic Pallet Strength Compression Tester with Digital Display and Max Capacity 20-100000kN for Packaging Testing
Computer Control Plastic Pallet Strength Compression Tester with Digital Display and Max Capacity 20-100000kN for Packaging Testing
Specifications
Place of Origin :
CHINA
Max Diameter of Workpiece :
500 or Above
MOQ :
1
Packaging Details :
Professional export wooden box packaging
Weight :
100-500Kg
Model Number :
UP-6035
Load Way :
Electronic Load
Loading Method :
Static Load
Transport Package :
Professional Export Wooden Carton Packaging
Model NO. :
UP-6035
Specification :
about 1CBM
Payment Terms :
D/P,T/T,Western Union
Production Capacity :
100 Unit/Month
Accuracy Grade :
0.5
Mass Scope of Workpiece :
<900kg
Certification :
CE,ISO
Power Source :
AC110-220V
Control :
Computer Control
Origin :
China
Brand Name :
YOUBI
Supply Ability :
20 Unit/month
Type :
Universal Testing Machine
Trademark :
None
Maxcapacity :
20-100000kN
Price :
Negotiable
Delivery Time :
5-15 work days
Delivery Terms :
CIF, DDP, DDU, FedEx, DHL, Fob
Additional Service :
Support Customer Customization.
Display :
Digital
Oil Cylinder Position :
Under
Description
UP-6035 Plastic Pallet Strength Compression Tester for Testing Performance of Robust and Durable
Product Overview

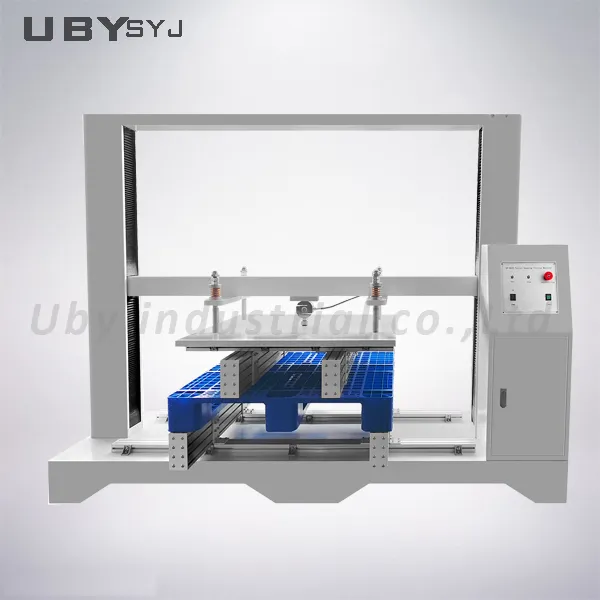

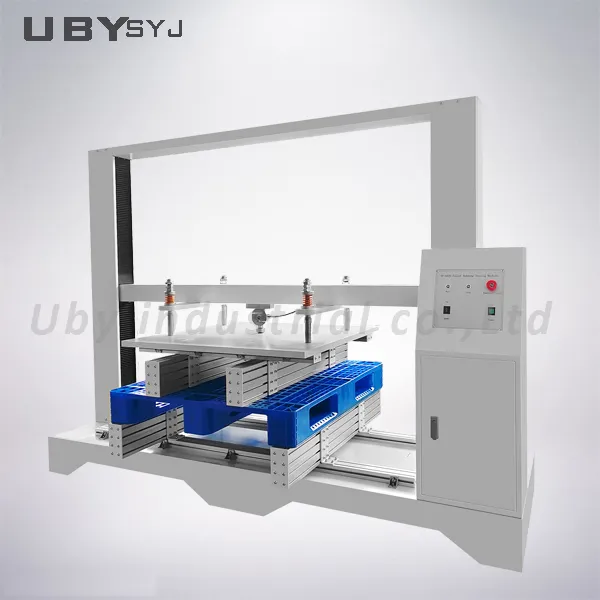

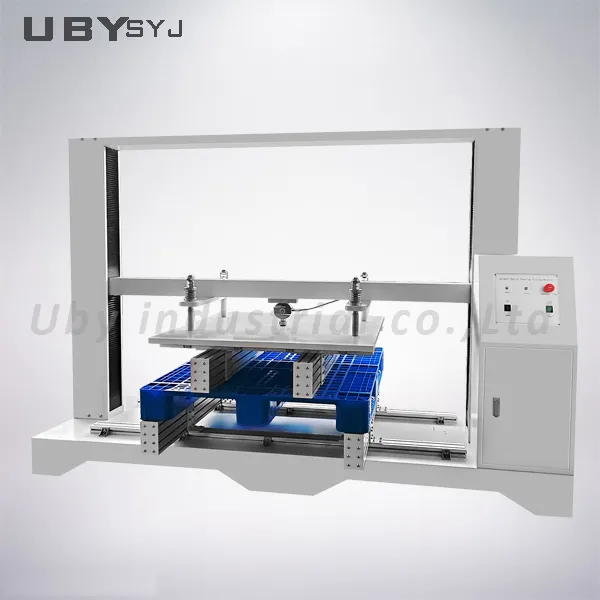

The Plastic Pallet Strength Compression Tester is a professional testing machine designed to evaluate the compressive performance of various packaging containers including plastic pallets, cardboard boxes, and industrial containers.

Applications
  • Pressure resistance, deformation, and stacking tests for corrugated cardboard boxes and honeycomb board boxes
  • Compression testing of plastic drums (edible oil, mineral water), paper drums, paper boxes, and paper cans
  • IBC drum compression testing and plastic pallet strength evaluation
Test Standards
  • GB/T 4857.4 - Pressure test method for packing and transporting packing parts
  • GB/T 4857.3 - Test method for the static load stacking of packaging transportation packaging
  • ISO 2872 - Packaging - Complete and fully loaded transport package - Pressure test
  • ISO 2874 - Packaging - Complete and full packing package - Stacking test by pressure tester
  • QB/T 1048 - Cardboard and compressive strength tester
Technical Specifications
Parameter Specification
Accuracy ±1%
Measurement Range (50~10000)N
Measurement Size (600*800*800)mm (other dimensions can be customized)
Resolution 0.1N
Error of Deformation ±1mm
Pressure Plate Parallelism Less than 1mm
Test Speed (10±3) mm/min (stack: 5±1mm/min)
Return Speed 100mm/min
Unit Interchange N/Lbf/KGF interchange
Man-machine Interface 3.5in liquid crystal display with curve showing change process
Printer Module type thermal printer
Working Conditions Temperature (20±10°C), Humidity <85%
Appearance Size 1050*800*1280mm
Product Images
Computer Control Plastic Pallet Strength Compression Tester with Digital Display and Max Capacity 20-100000kN for Packaging Testing Computer Control Plastic Pallet Strength Compression Tester with Digital Display and Max Capacity 20-100000kN for Packaging Testing Computer Control Plastic Pallet Strength Compression Tester with Digital Display and Max Capacity 20-100000kN for Packaging Testing Computer Control Plastic Pallet Strength Compression Tester with Digital Display and Max Capacity 20-100000kN for Packaging Testing Computer Control Plastic Pallet Strength Compression Tester with Digital Display and Max Capacity 20-100000kN for Packaging Testing Computer Control Plastic Pallet Strength Compression Tester with Digital Display and Max Capacity 20-100000kN for Packaging Testing Computer Control Plastic Pallet Strength Compression Tester with Digital Display and Max Capacity 20-100000kN for Packaging Testing Computer Control Plastic Pallet Strength Compression Tester with Digital Display and Max Capacity 20-100000kN for Packaging Testing Computer Control Plastic Pallet Strength Compression Tester with Digital Display and Max Capacity 20-100000kN for Packaging Testing Computer Control Plastic Pallet Strength Compression Tester with Digital Display and Max Capacity 20-100000kN for Packaging Testing Computer Control Plastic Pallet Strength Compression Tester with Digital Display and Max Capacity 20-100000kN for Packaging Testing
Our Service Process
  • Customer Inquiry: Discuss testing requirements and technical details, suggest suitable products, and provide competitive pricing
  • Customization: Create detailed drawings for custom requirements, provide reference photos, and confirm final solutions
  • Production & Delivery: Manufacture according to confirmed specifications, provide production updates, conduct calibration, and ensure timely delivery
  • Installation & Support: Provide field installation and comprehensive after-sales support
Frequently Asked Questions
Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?
Yes, we are professional manufacturers of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment in China. Every machine purchased from our factory has a 12-month warranty after shipment, with free maintenance during this period. We extend an additional 2 months consideration for sea transportation. If your machine requires service, contact us via email or phone. We will diagnose the issue through conversation or video chat and provide solutions within 24-48 hours.
What about the delivery term?
For standard machines in stock: 3-7 working days. For non-stock items: 15-20 working days after payment confirmation. We accommodate urgent requirements with special arrangements.
Do you accept customization services? Can I have my logo on the machine?
Yes, we offer both standard and customized machines according to your specific requirements. We provide OEM and ODM services, including placing your logo on the equipment.
How can I install and use the machine?
We provide English operation manuals and videos via email. Most machines are shipped fully assembled - simply connect the power cable to begin operation. When necessary, we offer on-site installation assistance.
