Specifications
Place of Origin :
CHINA
Payment Terms :
D/P,T/T,Western Union,paypal
Resolution :
1/250,000
Brand Name :
YOUBI
Supply Ability :
Professional Export Wooden Carton Packaging
Model NO. :
UP-2000
Model Number :
UP-2000
Loading Precision :
Under 0.5% of Full Loading Cell
MOQ :
1
Price :
Negotiable
Type :
Universal Testing Machine
Maximum Test Stroke :
700mm, Include Griper's Length
Delivery Time :
5-10 work days
Additional Service :
Support Customer Customization.
Packaging Details :
30 Unit/Month
Certification :
CE,ISO
Measurement unit switching :
Kgf, gf, N, kN, Ibf
Accuracy :
±1.0%
Maxcapacity :
2,5,10,20,50,100kgf any one option
Power Source :
AC110-220V
Description
UP-2000 Robust and Durable Peel Strength Tester
Professional peel strength tester designed to measure the force required for adhesive materials to peel off from substrate surfaces at a precise 90-degree vertical angle.
Product Overview
The UP-2000 Peel Strength Tester is driven by a servo motor system that moves fixtures vertically at constant speeds, gradually peeling samples and substrates at a strict 90° angle. High-precision force sensors collect real-time peel force data while the control system records force displacement curves and automatically calculates key parameters including average peel force, maximum/minimum peel force, and peel strength.
The core advantage ensures strictly vertical peeling angles, eliminating lateral additional forces that could compromise test results, thereby guaranteeing data accuracy and repeatability.
Compliance Standards
ASTM D3330, ASTM F88, ASTM D2861, ASTM B571, GB/T 2790, GB/T 2791, GB/T 2792 and more.
Technical Specifications
Model UP-2000
Sensor Capacity 2, 5, 10, 20, 50, 100kgf (any one option)
Measurement and Control Software Windows Professional Software
Measurement Accuracy ±0.5%
Force Resolution 1/500,000
Effective Range of Measurement 0.5~100% F.S
Deformation Display Accuracy ±0.5%
Test Speed 0.1~1000mm/min (free set)
Max Test Stroke Max 650mm (Extended 1000mm, customized), not includes gripper
Effective Test Space Dia 120mm
Unit Switch Multiple measurement units including international units
Stop Method Upper and lower limit safety setting, emergency stop button, program strength and elongation setting, test piece failure
Special Function Holding, holding and fatigue testing capabilities
Standard Configuration 180° peel fixture 1 set, 3 pieces peel steel plates (50*150mm), PT-6020 manual rolling wheel 1 piece, software and RS232 data line 1 set, equipment power supply 1 set, CD operating instructions 1 copy, product warranty card 1 copy
Separately Purchase Configuration 90° peel fixture, loop tack fixture, business computer, color printer, various test fixtures
Machine Size Approximately 57×47×120cm (W×D×H)
Machine Weight Approximately 70kg
Motor AC Servo Motor
Control Method Double Display Double Control (Touch Screen)
Electric Power 1PH, AC220V, 50Hz, 10A or specified

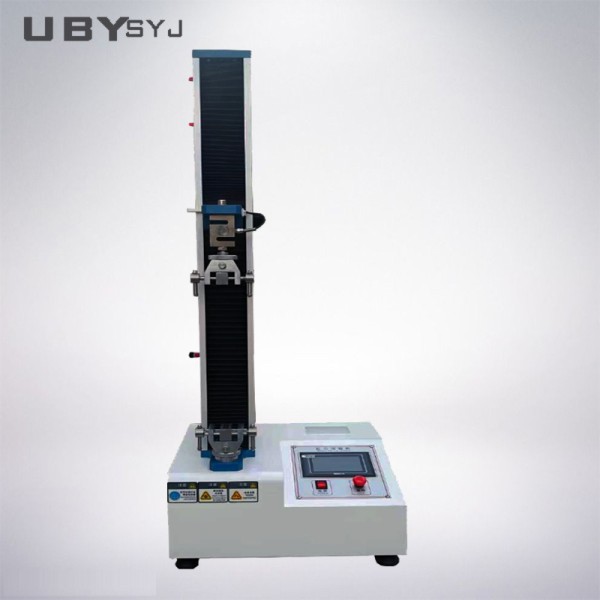

Product Images
UP-2000 Peel Strength Tester with ±0.5% Accuracy, Stable Clamping System, and Servo Motor Driven for Consistent Results UP-2000 Peel Strength Tester with ±0.5% Accuracy, Stable Clamping System, and Servo Motor Driven for Consistent Results UP-2000 Peel Strength Tester with ±0.5% Accuracy, Stable Clamping System, and Servo Motor Driven for Consistent Results
Our Service Commitment
We provide comprehensive Consultative Selling services throughout the entire business process:
  • Customer Inquiry: Discuss testing requirements and technical details, suggest suitable products, and provide competitive pricing
  • Customization Process: Create detailed drawings for customized requirements, provide reference photos, and confirm final solutions
  • Production & Delivery: Manufacture according to confirmed requirements, provide production updates, conduct calibration, and ensure timely delivery
  • Installation & Support: Provide field installation and comprehensive after-sales support
Frequently Asked Questions
Are you a manufacturer? Do you offer after-sales service? What is the warranty?
Yes, we are professional manufacturers of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment. Every machine includes a 12-month warranty after shipment with free maintenance. Considering sea transportation, we extend this to 14 months for international customers. If your machine requires service, contact us via email or phone for prompt troubleshooting and solutions within 24-48 hours.
What is the delivery timeframe?
Standard machines in stock: 3-7 working days. Custom orders: 15-20 working days after payment. Urgent requirements receive special priority arrangements.
Do you accept customization services and branding?
Yes, we offer both standard and customized machines according to your specifications, including OEM and ODM services with your logo.
How do I install and operate the machine?
We provide comprehensive English operation manuals and videos. Most machines ship fully assembled - simply connect power and begin testing. On-site installation assistance is available when necessary.
