Fully-Automatic Footwear Flex Fatigue Testing Equipment with 0~90° Adjustable Flexing Angle and 100 ± 5 cpm Test Speed
Fully-Automatic Footwear Flex Fatigue Testing Equipment with 0~90° Adjustable Flexing Angle and 100 ± 5 cpm Test Speed
Fully-Automatic Footwear Flex Fatigue Testing Equipment with 0~90° Adjustable Flexing Angle and 100 ± 5 cpm Test Speed
Fully-Automatic Footwear Flex Fatigue Testing Equipment with 0~90° Adjustable Flexing Angle and 100 ± 5 cpm Test Speed
Fully-Automatic Footwear Flex Fatigue Testing Equipment with 0~90° Adjustable Flexing Angle and 100 ± 5 cpm Test Speed
Fully-Automatic Footwear Flex Fatigue Testing Equipment with 0~90° Adjustable Flexing Angle and 100 ± 5 cpm Test Speed
Specifications
Delivery Time :
5-10 work days
Flexing Angle :
0~90° Adjustable
Brand Name :
YOUBI
Model NO. :
UP-4036
Model Number :
UP-4036
Service Support :
OEM ODM
Payment Terms :
D/A,D/P,T/T
Specification :
Refer to the actual size specifications
MOQ :
1
Price :
Negotiable
Supply Ability :
20 Unit/Month
HS Code :
9024800000
Packaging Details :
Professional export packaging
Test Speed :
100 ± 5 cpm
Certification :
CE,ISO
Language :
Chinese and English
Place of Origin :
CHINA
Applications :
Shoes
Description
Fully-Automatic Footwear Flex Fatigue Testing Equipment For Shoe Lab UP-6036
Product Overview
The Footwear Flex Fatigue Testing Equipment is specialized for testing sports shoes, casual shoes, work shoes, and other footwear. After extended periods of operation at specified frequencies and bending angles, this equipment assesses folding properties and evaluates cracking degrees. Featuring rational design and attractive appearance, the machine offers easy specimen clamping and removal. The shaft is constructed from special carbon steel for enhanced durability.
The transmission system utilizes a gap-free design with toothed belts, minimizing wear and noise while ensuring precise and stable speed control. Combined with vibration-dampening tripod construction, this equipment delivers robust performance with low maintenance requirements and simple operation. An acrylic safety shield protects operators during testing, complying with SATRA TM92 technical standards.
Technical Specifications
Specification Value
Specimen Capacity 2 pairs (4 pieces)
Flexing Angle 0-90° Adjustable
Test Speed 100 ± 5 cpm
Counter LCD display, 0-99,999,99 (8 digits)
Dimensions (W×D×H) 77 × 50 × 60 cm
Weight (Approx.) 157 kg
Power Requirements AC 220V, 50Hz, 3A (Specified by user)

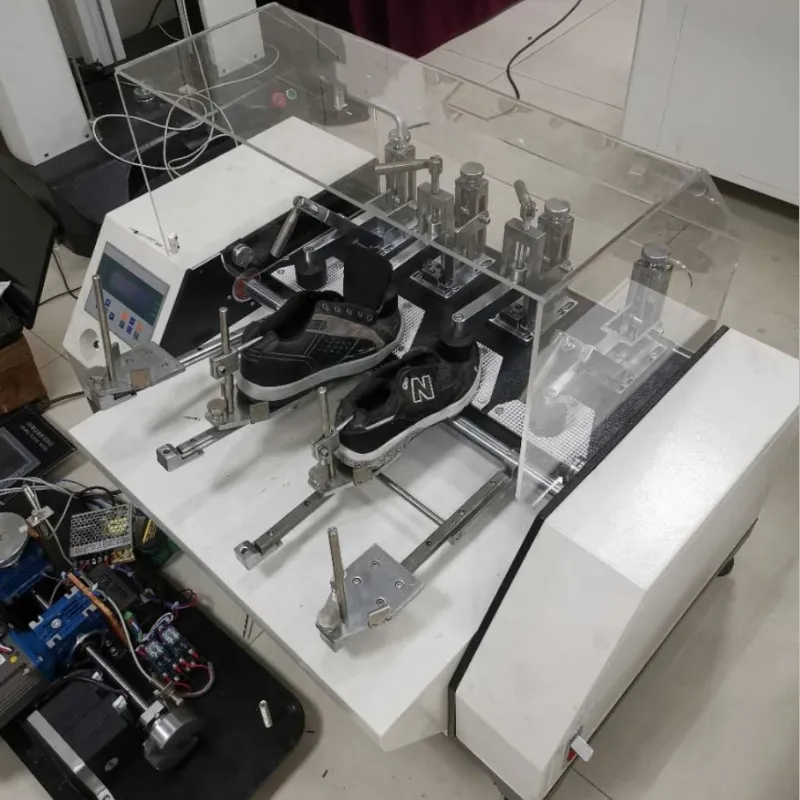

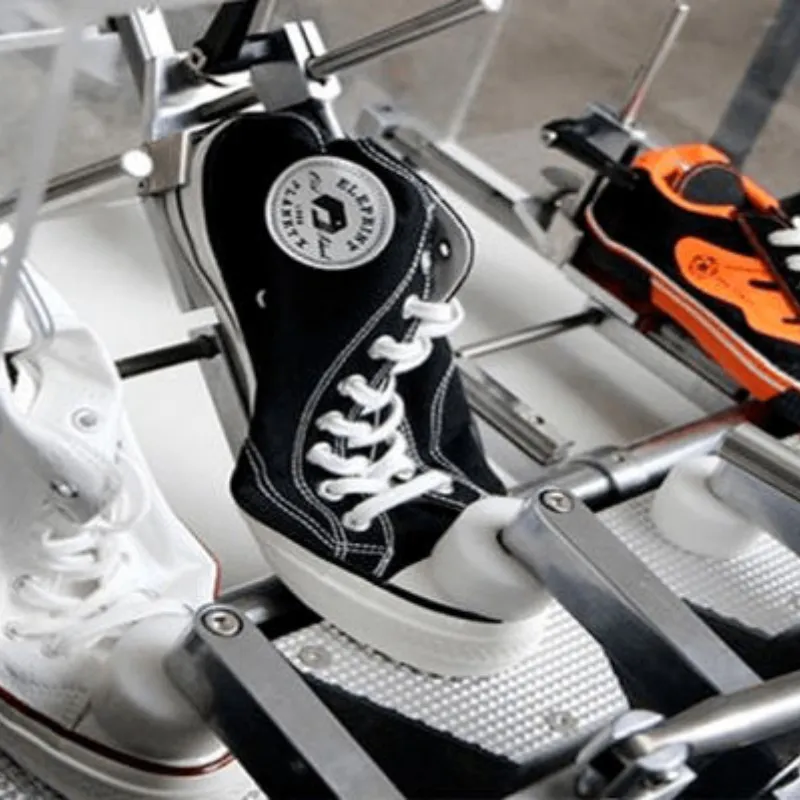

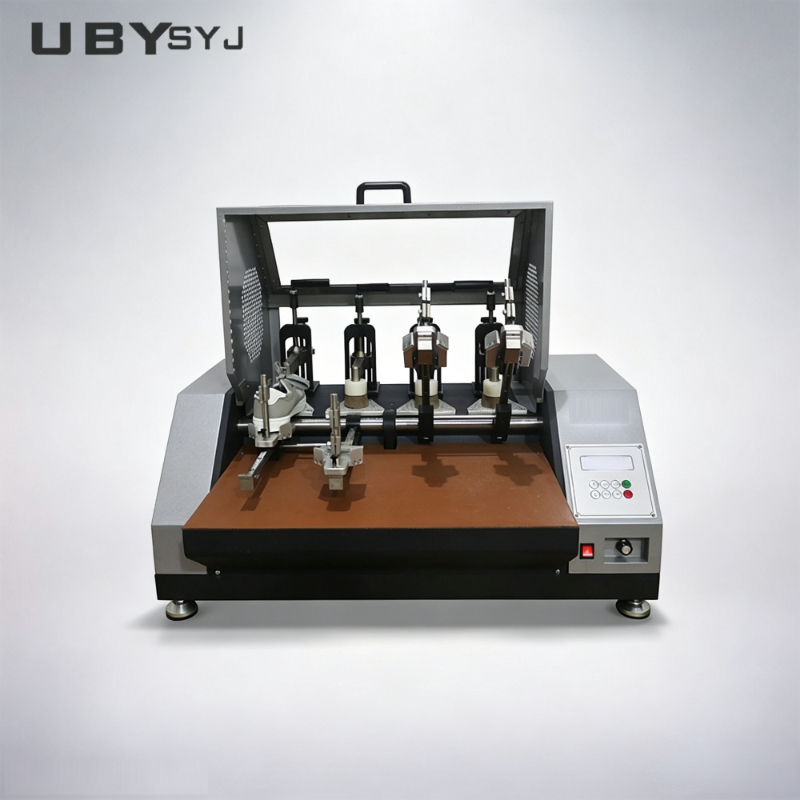

Product Images
Fully-Automatic Footwear Flex Fatigue Testing Equipment with 0~90° Adjustable Flexing Angle and 100 ± 5 cpm Test Speed Fully-Automatic Footwear Flex Fatigue Testing Equipment with 0~90° Adjustable Flexing Angle and 100 ± 5 cpm Test Speed Fully-Automatic Footwear Flex Fatigue Testing Equipment with 0~90° Adjustable Flexing Angle and 100 ± 5 cpm Test Speed
Our Service Process
  • Customer Inquiry: Discuss testing requirements and technical details, suggest suitable products, and provide competitive pricing
  • Customization Process: Create technical drawings for custom requirements, provide reference photos, and finalize solutions
  • Production & Delivery: Manufacture according to confirmed specifications, provide production updates, conduct calibration, and ensure timely delivery
  • Installation & Support: Provide field installation services and comprehensive after-sales support
Frequently Asked Questions
Are you a Manufacturer? Do you offer after-sales service? How can I request service? What is the warranty?
Yes, we are professional manufacturers of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment. All machines include a 12-month warranty after shipment, with 12 months of free maintenance. Considering sea transportation, we extend this to 14 months for international customers. If your equipment requires service, contact us via email or phone. We will diagnose issues through communication or video chat and provide solutions within 24-48 hours.
What is the delivery timeframe?
Standard machines in stock: 3-7 working days. Custom orders: 15-20 working days after payment confirmation. We accommodate urgent requests with special arrangements.
Do you accept customization services? Can I have my logo on the machine?
Yes, we offer both standard and customized machines according to your requirements. We provide OEM and ODM services, including adding your logo to equipment.
How do I install and operate the machine?
We provide English operation manuals and instructional videos via email upon order confirmation. Most machines ship fully assembled - simply connect power and begin operation. When necessary, we offer on-site installation assistance.
