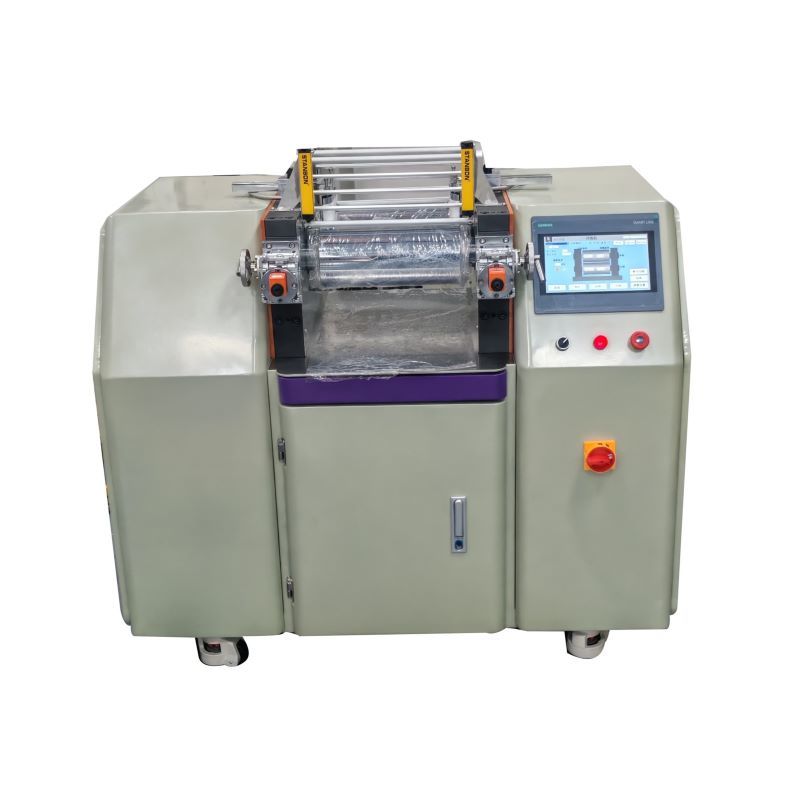

RKC Lab Two Roll Mill Machine 500G~1000G For Engineering Plastics Dispersing
RKC Lab Two Roll Mill Machine 500G~1000G For Engineering Plastics Dispersing
Specifications
Model Number :
CF-160
Roller Dimensions :
ф<160MM>×L350MM
Price :
$10000~$25000
Drum Rotation Speed :
0-30R/MIN
Delivery Time :
60~180 days
Weight :
500KG
Payment Terms :
D/A,L/C,D/P,T/T,Western Union
Main Motor :
8KW
Certification :
CE,ISO 9001
Roller Spacing :
0.1-10MM
Packaging Details :
wooden box package
Size :
1100×550×1200MM
Place of Origin :
Guangdong,China
Temperature Controller :
RKC（Japen）
Brand Name :
CFine
Mixing Capacity :
About 500G~1000G
Description
Custom 6-inch Two Roll Mill For Rubber
Product Overview

CFine Factory Custom Rubber Two Roll Mill for Mixing

This laboratory-scale two-roll mill is engineered for blending and dispersing engineering plastics, pigment masterbatches, silicone rubbers, and other polymer materials. Both rollers come with mirror-chrome plating and are equipped with electric heating and water cooling systems to maintain even temperature across the surface. The gap width between the rollers can be adjusted as needed, and multi-directional safety guards are installed to ensure stable, reliable, and secure operation.

Product Superiority
  • Two rollers made of mirror high carbon steel with hardness HRC55-62
  • Taiwan Fotek temperature controller for stable quality performance
  • Customized high-quality heating tubes with extended lifespan
  • Roller gap design prevents material from entering heating tubes
Key Configurations
Gearmotor

CPG brand featuring compact size, lightweight, low noise, high protection level, and strong overload capacity

PLC

Full series equipped with Programmable Logic Controller for program control

Swivel Joint

Spark-free operation, no aging, stable temperature display

Temperature Controller

Original imported RKC digital temperature controller

Shilin Contactor

Extended lifespan and strong adaptability

Technical Specifications

Custom configurations available upon request.

Model CF-120 CF-160 CF-200 CF-230 Remarks
Diameter of Barrel (MM) 120 160 200 230 Length of barrel can be customized
Length of Barrel (MM) 350 350 520 620
Batch Feeding 500g~800g 800g~1500g 1500g~2600g 3000g~5000g
Electrical Heating (KW) 0.75 1.5 3.75 3.75
Water Cooling (KW) 3.75 5.5 7.5 11
Weight (KG) 400 600 850 1100
Available Styles

Multiple styles available for selection with custom support

RKC Lab Two Roll Mill Machine 500G~1000G For Engineering Plastics Dispersing RKC Lab Two Roll Mill Machine 500G~1000G For Engineering Plastics Dispersing RKC Lab Two Roll Mill Machine 500G~1000G For Engineering Plastics Dispersing
After Sales Service
Standard Warranty

12 months or 2,000 operating hours (whichever comes first)

Global Support

24/7 technical assistance and spare parts supply

Training

On-site or remote operation/maintenance training

Company Profile
RKC Lab Two Roll Mill Machine 500G~1000G For Engineering Plastics Dispersing

Guangdong CFine Technology Co., Ltd. is a manufacturer specializing in designing, R&D, manufacturing, selling, and maintaining plastic, rubber, and powder metallurgy mixing and granulating equipment. Our professional R&D team meets special customer requirements for custom machinery. With strong technical capabilities, advanced equipment, and a well-trained manufacturing team combined with modern management and swift after-sales service, our machines are sold worldwide and have established long-term, stable cooperative relationships.

Quality first, service uppermost is our guideline. Honesty, integrity, innovation, and contribution are our principles. CFine is becoming the most professional and influential manufacturer in this industry, with the CFine brand growing in popularity both in China and internationally.

Why Choose CFine?
RKC Lab Two Roll Mill Machine 500G~1000G For Engineering Plastics Dispersing
Company Strength

15 Years OEM&ODM Experience, 11.16 Million Registered, 10000m³ Plant Area

Certificates of Honor

32 Patent Certificates, Team of Five Designers, Independent Laboratory

Professional Team

1 to 1 Professional Guidance, 24-Hour Customer Service, 1 Year Warranty

Production Workshop

15 Years as Source Factory, 30 Days On-Time Delivery, 100-Strong Production Team

RKC Lab Two Roll Mill Machine 500G~1000G For Engineering Plastics Dispersing
Frequently Asked Questions
What About The Delivery Date?
Payment term

50% deposit, 50% before shipment

Delivery term

FOB or Ex-work

Delivery time

30-70 days after receipt of deposit, depending on machine specifications

What's The Warranty Statement?

Free warranty for normal use for one year. Spare parts are available at competitive prices.

What About CFine After-Sales Service?
  1. We arrange engineers to install machinery and train workers for international clients when required
  2. Professional team provides comprehensive after-sales problem solving
  3. We supply spare parts at competitive prices after warranty period
  4. We continuously update new technology for all customers
