Specifications
Brand Name :
Kyozir
Model Number :
KZ-A03
Certification :
ISO , CE , FDA
Place of Origin :
China
MOQ :
1
Price :
13,555-17,000 USD
Payment Terms :
T/T,L/C,etc.
Supply Ability :
1000pcs/day
Delivery Time :
7-10 working days
Packaging Details :
1box/pcs
Name :
Dry and Wet Milling Machine
Fields of Application :
Dry Machining
Number of Axes :
5 Axes
Total Power :
1.2 KW
Tool Quantity :
13 pcs
Millable Materials :
Zirconia Discs, PEEK / PMMA / WAX
Material Thickness :
10-30mm
Dimensions (W/D/H) :
530 × 650 × 810 mm
Net Weight :
195 KG
After-sale Service :
Online Technical Support
Description

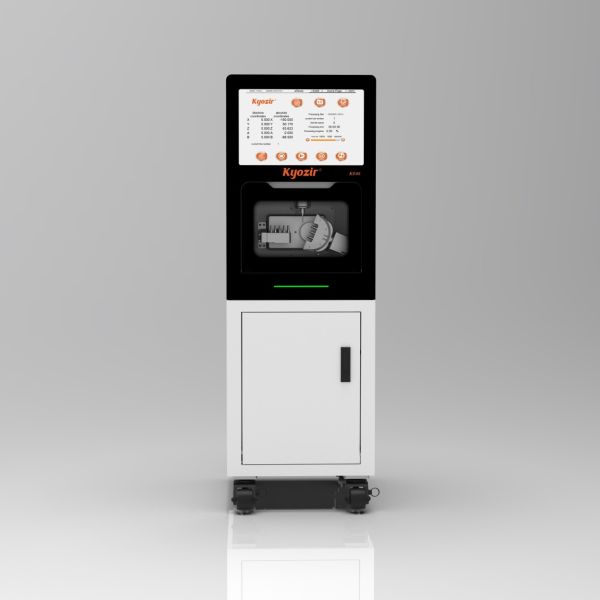

Kyozir All‑in‑one dry & wet dental milling machine for dental labs CAD CAM milling machine dental

Kyozir KZ‑A05 is a compact dental milling machine with integrated dry and wet modes. It is compatible with zirconia, lithium disilicate, and titanium discs. This product has been designed for use in both chairside restorations and high-efficiency lab workflows. It is able to deliver reliable performance and seamless CAD/CAM integration in a single unit.

Key Advantages of Kyozir 5‑Axis Dry Dental Milling Machine

  • All-in-one Dry and Wet Capabilities
  • Three Dedicated Fixtures for Material-specific Precision.
  • Fully-automatic Calibration System & Remote Monitoring.
  • High Speed Spindle for Maximum Efficiency.
  • Automatic Tool Changer with Smart Wear Prediction.
  • Versatile Performance Exceptional Value.

Technical Specifications

Dimensions (W/D/H) 650 × 530 × 1550 mm
Net Weight 285 kg
Processing Method Dry milling / Wet milling
Number of Axes 5‑axis
Travel Range X/Y/Z: 190 / 96 / 99 mm;
A: 360°; B: +30° to -90°
Machining Accuracy ±0.01 mm
Tool Magazine Capacity 21 Burs; Shank Diameter: 6 mm
Fixture Capacity Glass Ceramics (18 × 13 × 15): 6 blocks;
Disc Fixture: 1 unit;
Titanium Abutments Premills: 3 units
Structure Integrated Cast Iron Body
Spindle 2.5 kW; Speed: 60,000 rpm
Total Power 3.2 KW
Air Pressure 4.5–7.5 bar
Compressed Air Flow Approx. 50 L/min
Water Flow Rate 1500 L/h
Power Supply 220–230 V AC, 50/60 Hz

Application

Machinable Material Dry Processing: Zirconia, Wax;
Wet Processing: PMMA, PEEK, Glass Ceramics, Titanium Abutments, Titanium Discs, Acrylic, Cobalt‑Chrome
Material Dimension Zirconia, Wax, PMMA, PEEK, and Titanium discs — all processed as circular discs with a diameter of 98 mm and a thickness of 10–25 mm
Applications Dental Crowns, Bridges, Inlays, Onlays, Abutments, Veneers, Telescopic Crowns, Model Plates, Casting Models, Occlusal Splints, Dental Implants, Implant Bars/Attachments, Surgical Guides, Screw‑Retained Bridges, Mandibular Advancement Splints, Threaded Abutments (Internal and External Threads Supported), Angled Abutments, Frameworks, Removable Full Arch Bridges

Why choose Kyozir?

Shenzhen Kyozir New Materials Co., Ltd. is a comprehensive CAD/CAM solution provider integrating R&D. We have a well-established R&D team and have obtained many certificates, such as CE, FDA, ISO, etc., and our products have been sold to many countries all over the world. As a Reliable Partner for Dental Labs, we offer Stable machine quality, Professional CAD CAM solution, Fast global delivery, and Technical support availability!

Our zirconia blocks are manufactured through a precise and stable production process to ensure consistent quality and performance. This advanced process ensures high strength, stable density, and excellent milling performance for CAD/CAM systems. Our experience in international markets makes us a reliable zirconia block supplier for long-term cooperation!

Dry Wet Dental Milling Machine All in One Dental Lab Milling Machine

Dry Wet Dental Milling Machine All in One Dental Lab Milling MachineDry Wet Dental Milling Machine All in One Dental Lab Milling Machine

Dry Wet Dental Milling Machine All in One Dental Lab Milling Machine

FAQ

Q: What products does your factory produce?

A: Our main products include ceramic dental zirconia blocks, corresponding CAD/CAM dental equipment, and zirconia sintering furnaces. As a professional oral materials supplier, we provide a full range of digital dental materials and CAD/CAM dental solutions, helping dental labs and clinics achieve efficient and precise restorations.

Q: What about your standard delivery date?

A: Normally, the delivery time is 2–20 days, depending on stock availability and production schedule. For bulk orders or customized multilayer zirconia discs, we will confirm the exact lead time in advance to ensure a stable supply.

Q: What about your package?

A: We use standard export packaging with reinforced protection to ensure all goods arrive safely without damage.

Q: Do you have a guarantee on your products?

A: Yes, all our products comply with international standards such as ISO, CE, and FDA certifications.

Q: How will you treat quality complaints?

A: Kyozir has a strict quality control system, and all products undergo professional inspection before shipment, minimizing quality risks.

If any issue is confirmed to be caused by us, we will provide a free replacement or refund, ensuring reliable after-sales support for our dental laboratory customers and distributors.

Q: Is there a discount?

A: Yes, we offer different pricing based on order quantity.

For bulk purchases of zirconia blocks, wholesale or long-term cooperation, more competitive pricing is available.

Q: Can I have a sample?

A: Yes, samples are available. Sample cost and freight cost will be charged by the customers.

Q: Why choose Kyozir dental products?

A:1. High-quality dental zirconia blocks made in China, using premium raw materials.

2. Comprehensive CAD/CAM solution service, including equipment and materials.

3. Professional service covering product selection, packaging, shipment, customs clearance, and import support.

4. Our team has over 15 years of experience in the dental industry.

5. Reliable after-sales service with quality guarantee.

6. Competitive price with stable quality, ideal for global dental labs and clinics.

Looking for a reliable dental zirconia supplier? Contact us today for samples and pricing!
