Pneumatic Vacuum Angle Valve Flange ISO-K/ CF Leak Rate ≤1.3×10-10 Pa.M3/S
Pneumatic Vacuum Angle Valve Flange ISO-K/ CF Leak Rate ≤1.3×10-10 Pa.M3/S
Pneumatic Vacuum Angle Valve Flange ISO-K/ CF Leak Rate ≤1.3×10-10 Pa.M3/S
Pneumatic Vacuum Angle Valve Flange ISO-K/ CF Leak Rate ≤1.3×10-10 Pa.M3/S
Specifications
Brand Name :
KYKY
Model Number :

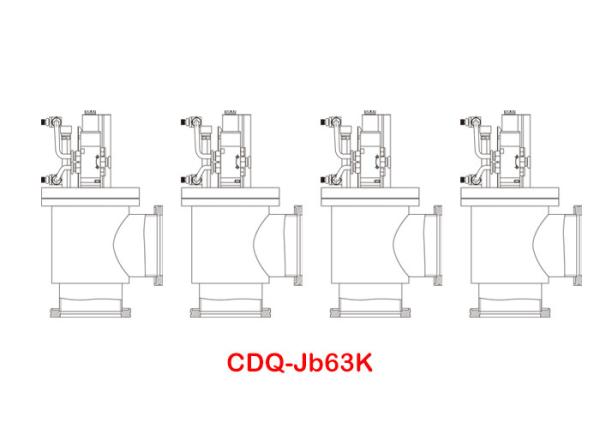

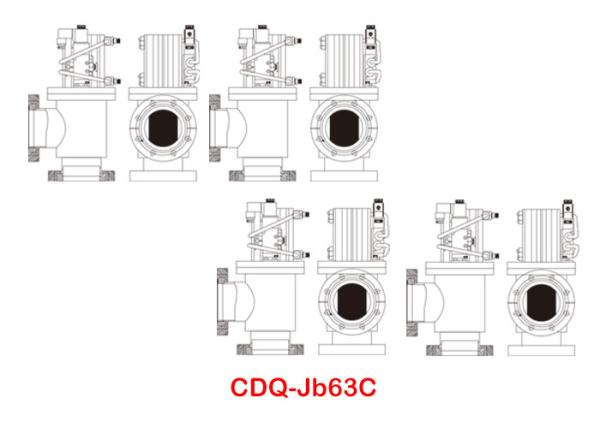

CDQ-Jb63
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Leak rate :
≤1.3×10-10 Pa.m3/s
Appliation :
1E+5 Pa ～ 1.3E-7 Pa
Materials :
Stainless Steel
Flange :
DN63 CK, ISO-K
Drive mode :
Pneumatic
Description

Angle Valve , Pneumatic , CDQ-Jb63 , Flange ISO-K/ CF , Leak rate:≤1.3×10-10 Pa.m3/s

Model CD-J ultrahigh vacuum angle valve is used to cut-in or cut off the gas flow in the system. Pneumatic valve is controlled by solenoid directional valve to change flow direction of cylinder movement to achieve the opening and closing of the valve.With the advantages: module design, compact structure, light weight, less mechanical wear, long service life, reliable seal (shaft seal of welded bellow), Small leakage ( internal welded Stainless steel Chamber),this model of valve is available for air or non-corrosive gases.

Features:

1. Module design

2. Compact structure

3. light weight

4. Small leakage (Internal welded stainless steel chamber)

5. Less mechanical wear, Long service life

6. Reliable seal (Shaft seal of welded bellow)

Main specifications:

  1. Application:1×105 Pa ～ 1.3×10-7 Pa;
  2. Leak rate:≤1.3×10-10 Pa.m3/s;
  3. Working media:Air, Vapor, Non-corrosive gases
  4. Baking temperature:
  • ( On):≤200℃；
  • (Off):≤150℃；
  1. Air compression:0.4 ～ 0.7MPa；
  1. Power supply:AC220V 50Hz,6W or or DC24V,3W(optional)；
  2. Mounting position:Any

Main Materials:

Valve body, valve rod Stainless Steel 304
Valve deck Aluminum alloy, Stainless steel 304
Seals Viton, welded bellows(316L)
