Specifications
Brand Name :
KEXINT
Model Number :
GYTA
Certification :
CE/ROHS/ISO9001
Place of Origin :
CHINA
MOQ :
10 KM
Price :
432.15+$+KM
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000+KM+week
Delivery Time :
10
Packaging Details :

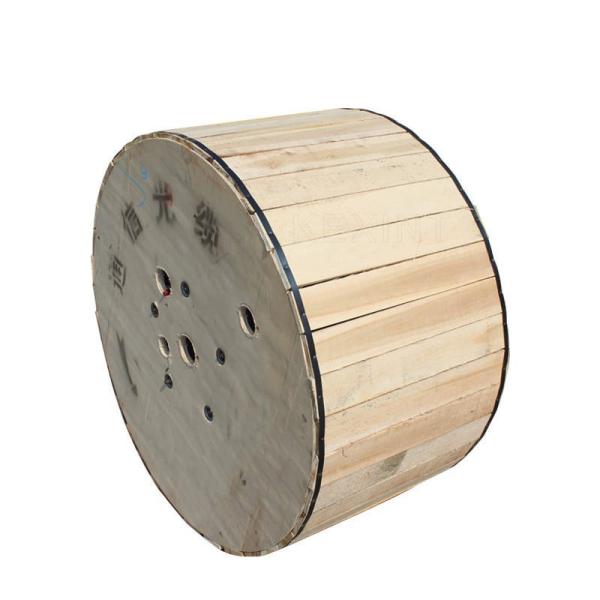

Wooden Drum Cartons
Fiber count :
2-96 cores
Fiber type :
G657A/G652D
strength member :
Steel wire/FRP
Allowable Tensile Strength :
3000N
Jacket Material :
PE PVC LSZH HDPE
Color :
Black
Package :
Wooden Drum Cartons
Temperature :
-40℃ -- +70℃
Description
Armored Loose Tube Double Jacket/Single Armor fiber optic cables are designed to provide high fiber counts with the flexibility and versatility required for today's most demanding installations, including direct buried. With fiber counts up to 288 and S-Z strand designs.

Characteristics:

· Good mechanical and temperature performance · High strength loose tube that is hydrolysis resistant · Special tube filling compound ensure a critical protection of fiber · Crush resistance and flexibility

· PE/LSZH sheath protects cable from ultraviolet radiation · 100% cable core filling · Double jacket single armored · (GYTA) for rodent pr.otection

Description:

1.250μm Coloured Fiber 2.PBT loose Tube 3.Tube Filling Compound(Gel) 4.Steel wire central strength menber
5.PE/LSZH outer Sheath
6.PSP corrugated steel tape armored
Technical Specifications :
Fiber Count
Nominal Diameter (mm)
Nominal Weight (kg/km)
Max Fibers per Tube
Max No. of (Tubes+fillers)
Allowable Tensile Load (N)
Allowable Crush
Resistance
(N/100mm)
Short Term
Long Term
Short Term
Long Term
2~30
13.2
162
6
5
3000
1000
3000
1000
32~48
13.8
175
8
6
3000
1000
3000
1000
50~72
14.6
205
12
6
3000
1000
3000
1000
74~96
16.0
230
12
8
3000
1000
3000
1000
98~144
17.6
285
12
12
3000
1000
3000
1000
>144
Available upon customer’s request
Note:
1. For flame retardant cable, outer sheath can be made of low-smoke halogen-free (LSZH) material
2.Upon customer’s request, cables with longitudinal color strip on outer sheath can be offered. More details, please refer to GYTA series.
3. Special cable structure can be designed and manufactured on customer’s request.
