KEXINT 12 Core OM5 Fiber Optic Patch Cord MTP Pro Female 2.0mm 5M Type B Multimode
KEXINT 12 Core OM5 Fiber Optic Patch Cord MTP Pro Female 2.0mm 5M Type B Multimode
KEXINT 12 Core OM5 Fiber Optic Patch Cord MTP Pro Female 2.0mm 5M Type B Multimode
KEXINT 12 Core OM5 Fiber Optic Patch Cord MTP Pro Female 2.0mm 5M Type B Multimode
KEXINT 12 Core OM5 Fiber Optic Patch Cord MTP Pro Female 2.0mm 5M Type B Multimode
KEXINT 12 Core OM5 Fiber Optic Patch Cord MTP Pro Female 2.0mm 5M Type B Multimode
KEXINT 12 Core OM5 Fiber Optic Patch Cord MTP Pro Female 2.0mm 5M Type B Multimode
KEXINT 12 Core OM5 Fiber Optic Patch Cord MTP Pro Female 2.0mm 5M Type B Multimode
KEXINT 12 Core OM5 Fiber Optic Patch Cord MTP Pro Female 2.0mm 5M Type B Multimode
KEXINT 12 Core OM5 Fiber Optic Patch Cord MTP Pro Female 2.0mm 5M Type B Multimode
KEXINT 12 Core OM5 Fiber Optic Patch Cord MTP Pro Female 2.0mm 5M Type B Multimode
KEXINT 12 Core OM5 Fiber Optic Patch Cord MTP Pro Female 2.0mm 5M Type B Multimode
Specifications
Brand Name :
KEXINT
Model Number :
OM5 12 core MTP/pro 5M type B
Certification :
CE Iso-9001 Ross UL
Place of Origin :
CHINA
MOQ :
10+pcs
Price :
6.73+$+piece
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram, MoneyGram
Supply Ability :
1000+PCS+Day
Delivery Time :
8
Packaging Details :
box
Fiber count :
12 Fibers
Fiber Type :
Multimode OM5
Polarity :
Type B
Jacket :
LSZH
Diameter :
2.0mm
Length :
5m or customized
Application :
Data Center
Operating temperature :
-40℃~85℃
Description

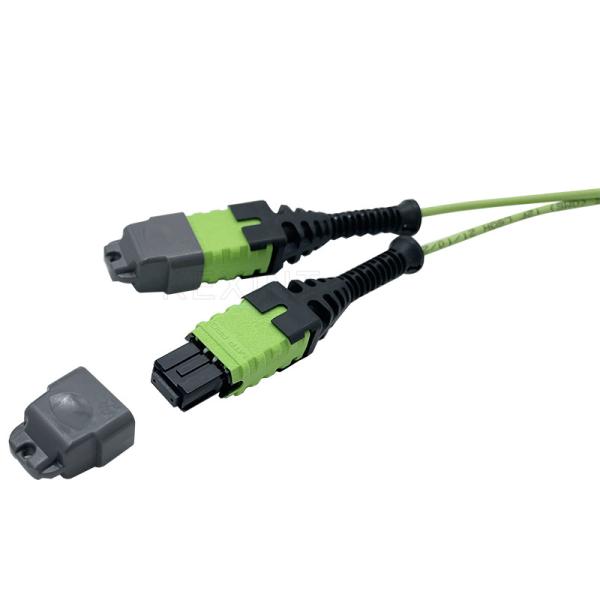

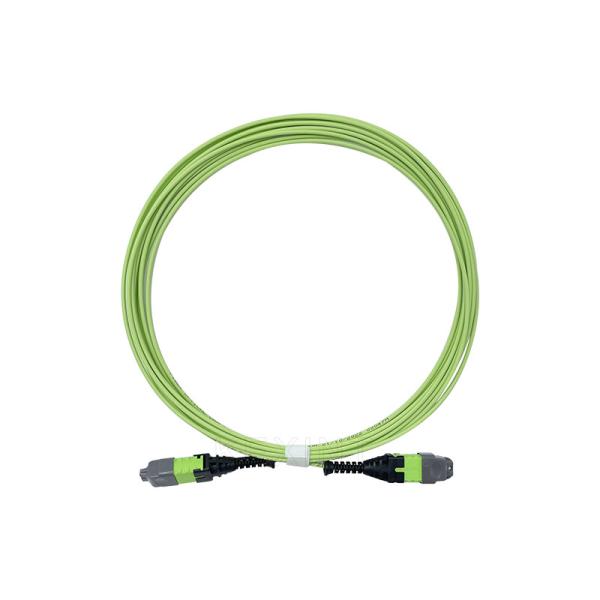

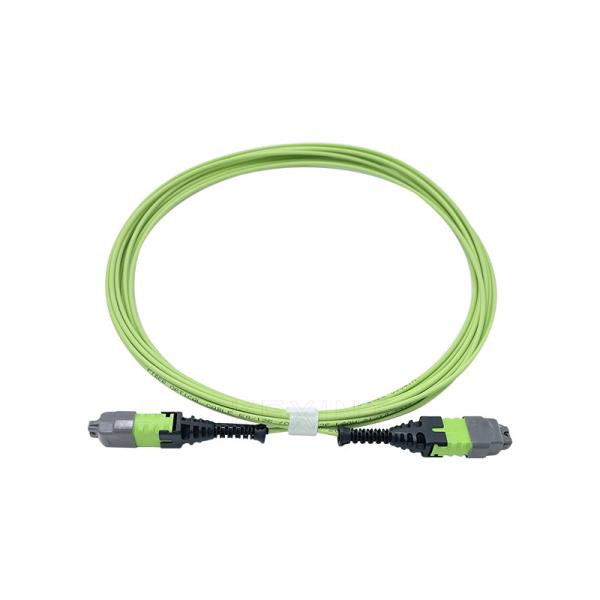

KEXINT 12 Core MTP/pro Female 2.0mm 5M Type B Multimode OM5 Fiber Optic Patch Cord

MPO/MTP Trun cable patch cord, a cost-effective alternative to time-consuming field termination, is designed for high-density fiber patching in data centers which need space saving and reduce cable management troubles. With US Conec MTP connectors and Corning SMF-28 ultra optical fiber, it is optimized for 40G QSFP+ PLR4 to 10G SFP+ LR, 400G OSFP/QSFP-DD DR4 to 100G QSFP DR and 400G OSFP/QSFP-DD XDR4 to 100G QSFP FR optics direct connection and high-density data center applications.
KEXINT provide complete solution for your data center interconnection solution, including MPO/MTP Trunk Cable ,MPO/MTP Harnesses Cables ,MPO/MTP Fan out 0.9mm Patch Cords ,IP-Series MPO/MTP Assembly ,High Density Patch Cords ,MPO/MTP Loopback ,MT Patch Cords,MPO/MTP Cassettes ,MPO/MTP Fiber Optic Patch Panel;
Features:

100% pre-terminated and tested in factory to ensure transfer performance
Rapid configuration and networking, reduce installation time
Supports 40G and 100G network applications
Jacket material: LSZH, OFNR, OFNP available
Supports up to 12F, 24F, 48F, 72F, 96F, 144F, customized products are available

Application:
Data communication network
Optical System Access network
Storage area networking fiber channel
High density architectures

Specification:

Performance Level
Standard
Elite
Connector
Mode
Endface
IL(max) (dB)
RL(min) (dB)
IL(max) (dB)
RL(min) (dB)
MPO/MTP
SM
12F/APC
≤0.70
≥60
≤0.35
≥60
24F/APC
≤0.75
≥60
≤0.35
≥60
48F/APC
≤0.75
≥60
MM
12F/PC
≤0.50
≥20
≤0.35
≥20
24F/PC
≤0.50
≥20
≤0.35
≥20
48F/PC
≤0.50
≥20
LC/SC/FC/ST
SM
APC
≤0.30
≥60
≤0.10
≥60
UPC
≤0.20
≥50
≤0.10
≥50
MM
PC
≤0.20
≥30
≤0.10
≥30
