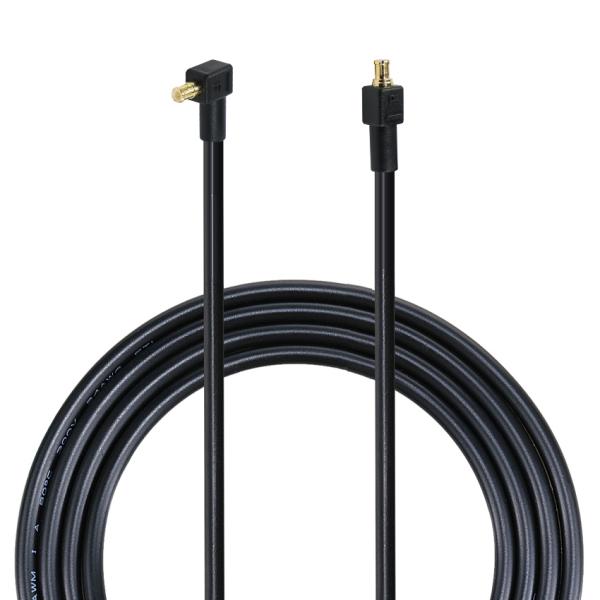

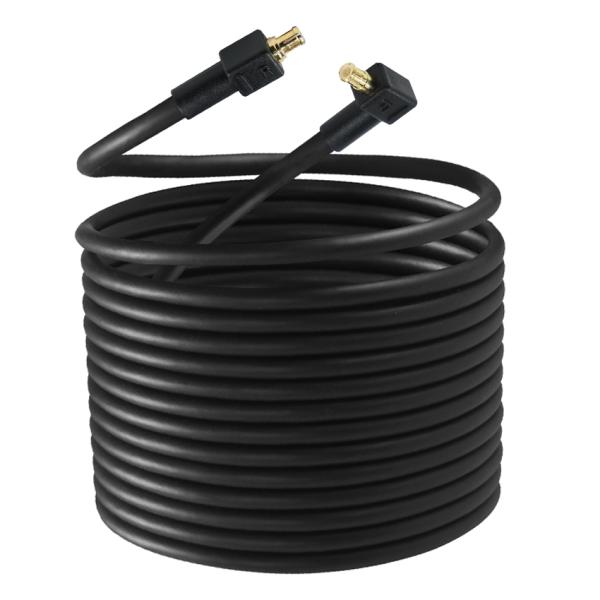

Precision MCX Male to MCX Male Right-Angle Coaxial Cable | 50 Ohm RG316 RF Pigtail for Test & Measurement

1. Detailed Technical Specifications

2. Product Introduction

Engineered for high-fidelity RF connectivity, our MCX Male to MCX Male Right-Angle Coaxial Cable is the definitive solution for space-constrained and high-performance applications. This 50 Ohm RF pigtail assembly combines the reliability of secure MCX connectors with the low-loss characteristics of flexible RG316 cable. The right-angle connector is expertly designed to reduce cable strain and allow for clean routing within compact enclosures, test benches, and embedded systems. Ensure reliable, stable, and repeatable signal transmission for your critical projects with a cable assembly built for precision.

3. Key Specs

• Connector Types: MCX Male (Straight) to MCX Male (Right-Angle)
• Impedance: 50 Ohm for standard RF systems
• Cable Type: High-Performance, Low-Loss RG316
• Frequency Performance: Optimized for DC to 6 GHz operation
• Primary Use: RF Test, GPS, SDR, Internal Module Interconnection

4. Color & Dimensions

Component Finish:

• Connector: Professional Nickel Finish
• Center Pin: Gold Finish for superior conductivity
• Cable Jacket: Light Brown / Tan (Standard FEP color)

Physical Dimensions:

• Cable Diameter: 2.50 mm (0.098 inches)
• Standard Lengths: Available in various lengths from 10cm to 50cm. We are a direct manufacturer and can produce custom lengths to meet your exact project requirements. Please contact us with your specifications.

5. Product Features

• Space-Saving Right-Angle Design The 90-degree MCX connector minimizes the cable's footprint, preventing strain and enabling tidy installation in tight enclosures, high-density racks, and portable devices.
• Superior Signal Integrity Precision 50 Ohm impedance matching, combined with the low-loss RG316 cable and gold-plated center contacts, minimizes signal degradation (VSWR and Insertion Loss), crucial for sensitive measurement and communication applications.
• Durable Construction for Reliability Features robust, nickel-plated brass connector bodies that withstand repeated mating cycles. The secure snap-on MCX interface ensures a stable physical and electrical connection, resisting vibration and shock.
• High-Quality Shielded Cabling The RG316 cable utilizes a silver-plated copper conductor and a dense braid shield, offering excellent protection against electromagnetic interference (EMI) and radio-frequency interference (RFI) for a clearer signal.

6. Compatible Devices & Applications

This versatile RF pigtail is a vital component for a wide range of equipment and industries. It is designed for any device requiring a 50 Ohm MCX interface. Applications include:

• RF Test and Measurement Equipment: Interconnecting Vector Network Analyzers (VNAs), Spectrum Analyzers, and Signal Generators.
• Software-Defined Radio (SDR): Connecting SDR platforms to antennas or external modules.
• GPS / GNSS Systems: Linking GPS receivers to antennas.
• Wireless Communication Hardware: Internal board-to-board or board-to-chassis RF links in routers, access points, and cellular modems.
• Embedded Systems & IoT Devices: Providing the RF connection for onboard radio modules.

Note: Please verify that your equipment utilizes MCX series connectors before ordering. This cable is not compatible with SMA, SMB, or other connector types.

7. Safety & Quality Assurance Information

Material Compliance & Manufacturing Standards

Our commitment to quality ensures a reliable and safe component for your business. We adhere to strict manufacturing protocols.

• RoHS Compliant: This product is manufactured using materials that comply with the Restriction of Hazardous Substances (RoHS) directive, making it suitable for global distribution, including the European market.
• Quality Control: Each cable assembly undergoes a multi-point quality inspection process, including 100% continuity testing and a visual inspection for construction integrity, to ensure it meets our high performance standards.

Proper Handling:

To ensure maximum performance and lifespan, avoid bending the cable tighter than its specified minimum bend radius (approx. 13mm / 0.5 in). Ensure connectors are properly aligned before applying mating force.
