Technical Specifications (Table Format)

Product Introduction

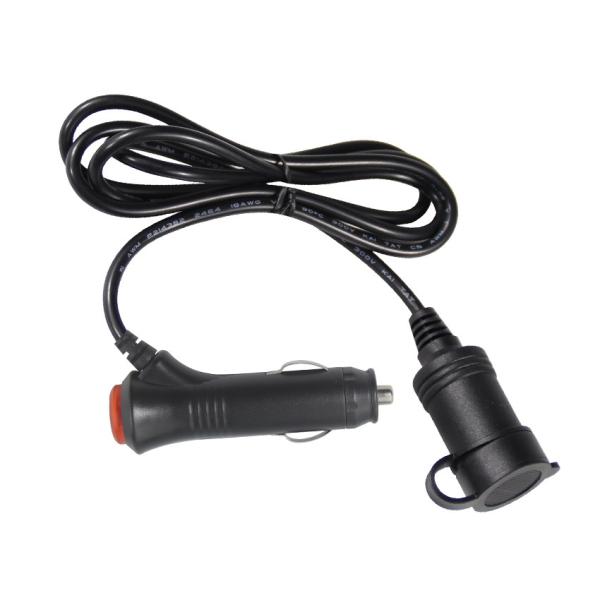

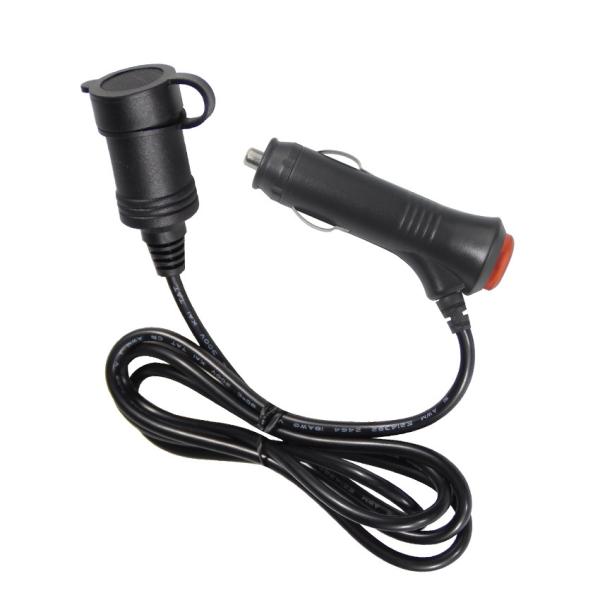

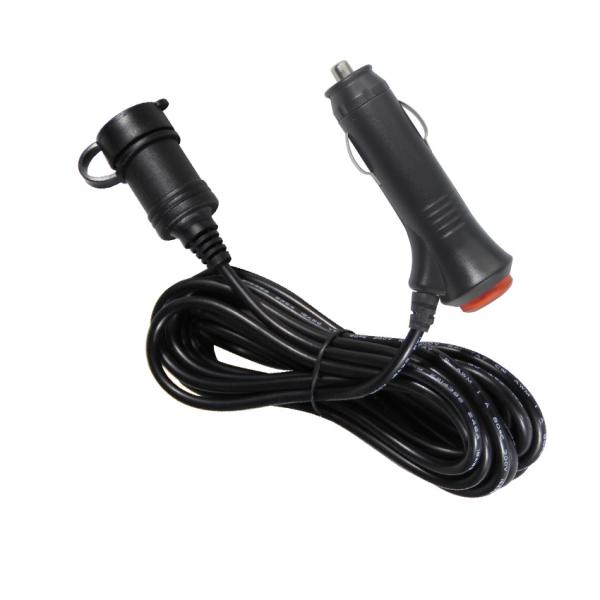

This DC cigarette lighter extension cable features a male plug to female socket design, ideal for extending power from your vehicle’s 12V/24V outlet to additional car accessories. Designed with durable connectors and heavy-duty wire, it ensures stable current flow and long-lasting performance for in-vehicle power distribution. A built-in fuse offers extra safety protection.

Key Specs

• Voltage: 12V / 24V DC

• Current: Up to 15 Amps

• Length Options: 1.5 meters / 3 meters / 5 meters

• Wire Gauge: 14AWG / 16AWG

• Plug Type: Standard Car Cigarette Lighter Plug

• Socket Type: Compatible Car Cigarette Lighter Por

Color & Dimensions
Available in:
Black + Red Accent (Standard)
Dimensions:
Plug Head: 35mm × 25mm × 20mm
Socket Body: 50mm diameter

Product Features
Dual Safety Mechanism
Thermal fuse + Automatic current cutoff

Universal Fit Design
Compatible with 99% vehicle models (1990-2024)

Weather Resistance
IP54-rated dust/water protection

Tangle-free Storage
Memory-free cable with Velcro strap

Compatible Devices

• Car air compressors

• Dash cameras

• Car vacuum cleaners

• Car refrigerators or coolers

• Phone chargers (with lighter plug)

• GPS navigation units

• Heated seat cushions

• Inverters (with lighter input)

Safety Guidelines
Certified with international electrical safety standards
Do not expose to direct sunlight >2 hours
Disconnect when not in use
Keep away from flammable materials

User Guide – How to Use

1. Inspect Before Use
   Check the cable, plug, and socket for any visible damage or deformities. Do not use if damaged.

2. Connect the Male Plug
   Insert the male cigarette lighter plug into your vehicle’s 12V or 24V power socket securely.

3. Attach Your Device
   Insert the accessory or device's plug into the female cigarette lighter socket on the extension cable.

4. Power On the Vehicle
   Turn on the vehicle or ignition system to supply power to the accessory via the extension cable.

5. Monitor Operation
   Ensure the connected device is operating normally. If the cable becomes hot or the device malfunctions, disconnect immediately.

6. Unplug After Use
   Always unplug the extension cable from the car socket after use to avoid draining the battery or potential overheating.

Safety Warnings

• Do Not Exceed Load Capacity
  The extension cable is rated for up to 10A or 15A depending on the model. Check your device’s power requirements before use.

• For DC Use Only
  This cable is designed for 12V or 24V DC systems. Do not connect to AC power sources.

• Avoid Moisture and Heat
  Do not expose the cable or connectors to water, snow, or excessive heat. Store in a dry location.

• Keep Away From Children
  This is not a toy. Keep out of reach of children and pets to avoid electric hazards.

• Fuse Protection
  If the fuse blows, replace it with one of the same rating. Never bypass or remove the fuse.

• Use Only With Compatible Devices
  Connect only to devices designed for cigarette lighter socket input. Improper use may damage both the cable and your equipment.

• Do Not Modify
  Do not cut, splice, or alter the cable or connectors. Modifications may void performance and safety.

If you have other needs,

Contact us!!
