Specifications
Brand Name :
KUNCAN
Model Number :
KC-SAE-DC
Place of Origin :
China
MOQ :
500 pieces
Price :
$3,31/pieces 500-999 pieces
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
1000PCS/Per Week
Delivery Time :
16Days
Packaging Details :
PE Bag + Carton
Description

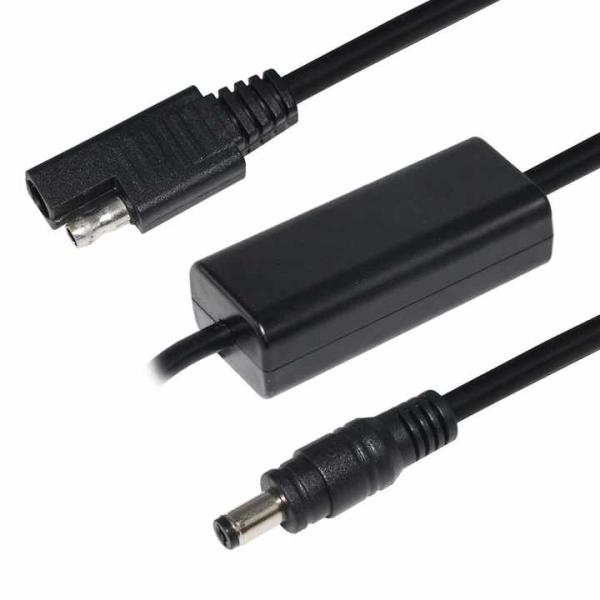

SAE to DC 5.5x2.1mm Step-Up Power Cable – 5V to 12V Converter Adapter for Solar Panel, Battery Pack, LED, Router Use

Product Description
Parameter Description
Product Name SAE to DC Step-Up Power Cable
Input Connector SAE 2-Pin Connector (Male or Female Optional)
Output Connector DC Plug (5.5x2.1mm or custom)
Input Voltage 5V DC (from battery or solar bank)
Output Voltage 12V (Fixed Boost)
Max Output Current 0.8A (Typical Output 9.6W)
Cable Length 3FT / 5FT /6FT (Customizable)
Wire Type 22AWG / Tinned Copper
Jacket Material Flexible PVC
Polarity SAE Red = V+, DC Inner = V+
Color Black (OEM available)
Use Scope Indoor / Outdoor (Dry Environment Recommended)

2. Product Introduction

This SAE to DC Step-Up Power Cable boosts a 5V power input from an SAE interface (e.g. solar panel, power station, lithium battery) up to a stable 12V output, suitable for routers, LED strips, mini pumps, or DC-powered boards.

It’s a compact, efficient solution for off-grid, mobile, or backup power projects where 12V devices need to be run from 5V sources.

3. Key Specs


  • Input: 5V (SAE Source)

  • Output: 12V via DC 5.5×2.1mm plug

  • Length: 30cm / 50cm / 100cm

  • Output Power: Max 9.6W

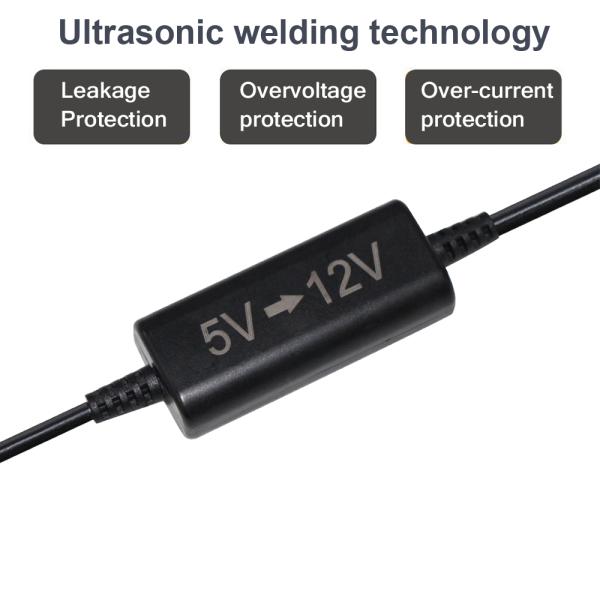

  • Built-in Boost Module: Regulated, safe step-up


4. Product Features

  • SAE quick-connect for solar panel or battery

  • Boosts 5V to stable 12V power

  • Compact, portable, and easy to install

  • Suitable for DC electronics & small devices

  • Overload protection and safe polarity design

5. Compatible Devices

    • Small 12V LED Strips

    • Mini Routers / Modems

    • Cooling Fans

    • Arduino / ESP / IoT Modules

    • Solar-powered test benches

    Note: Check that the connected device draws <0.8A @ 12V.
    This cable is power only – not for signal/data.

Safety Usage Notes


  • Ensure SAE polarity matches standard convention

  • Only connect to regulated 5V source ≥2A (USB or battery)

  • Not suitable for 12V devices over 10W

  • Do not expose to rain or submerge in water


OEM & Customization Options

Option Description
DC Plug Size 5.5x2.1mm / 5.5x2.5mm / 3.5x1.35mm / Custom
Cable Length 15cm / 30cm / 50cm / 1m / Custom
SAE Head Type Male / Female / SAE Splitter Optional
Branding Support Printed label / Molded logo / Cable tag
Packaging PE Bag / Zip Bag / Custom Retail Box
