DB44 Male to Dual DB25 Male Splitter Cable for CNC Controllers
DB44 Male to Dual DB25 Male Splitter Cable for CNC Controllers
DB44 Male to Dual DB25 Male Splitter Cable for CNC Controllers
DB44 Male to Dual DB25 Male Splitter Cable for CNC Controllers
DB44 Male to Dual DB25 Male Splitter Cable for CNC Controllers
DB44 Male to Dual DB25 Male Splitter Cable for CNC Controllers
DB44 Male to Dual DB25 Male Splitter Cable for CNC Controllers
DB44 Male to Dual DB25 Male Splitter Cable for CNC Controllers
DB44 Male to Dual DB25 Male Splitter Cable for CNC Controllers
DB44 Male to Dual DB25 Male Splitter Cable for CNC Controllers
Specifications
Brand Name :
KUNCAN
Model Number :
KC-DB44-DB25
Place of Origin :
China
MOQ :
500 pieces
Price :
$2.86/pieces 500-999 pieces
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
1000PCS/Per Week
Delivery Time :
16Days
Packaging Details :
PE Bag + Carton
Description

DB44 Male to Dual DB25 Male Adapter Splitter Cable for CNC Motion Controller or Industrial I/O Expansion

Product Description

Technical Specifications

Parameter Description
Product Type DB44 to Dual DB25 RS-232 Adapter/Splitter Cable
Input Connector DB44 Male (44-pin D-sub)
Output Connectors 2 × DB25 male (25-pin D-sub)
Wiring Configuration Signal Split, 1:1 Parallel or Custom Mapping
Cable Length 3FT/4FT/Custom Available
Jacket Material PVC
Conductor Material Tinned Copper
Shielding Aluminum Foil + Braid Shielded
Operating Voltage ≤ 30V DC
Temperature Range -20°C ~ +60°C
Color Black / Beige / Custom
Connector Type Molded with Strain Relief + Thumbscrews

Product Introduction

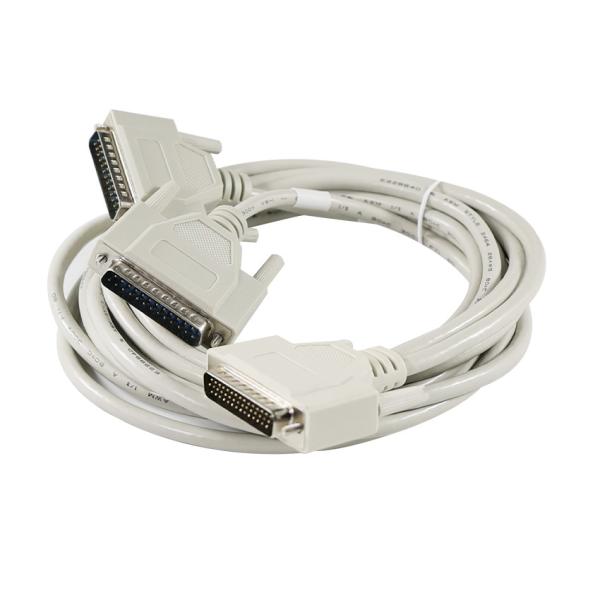

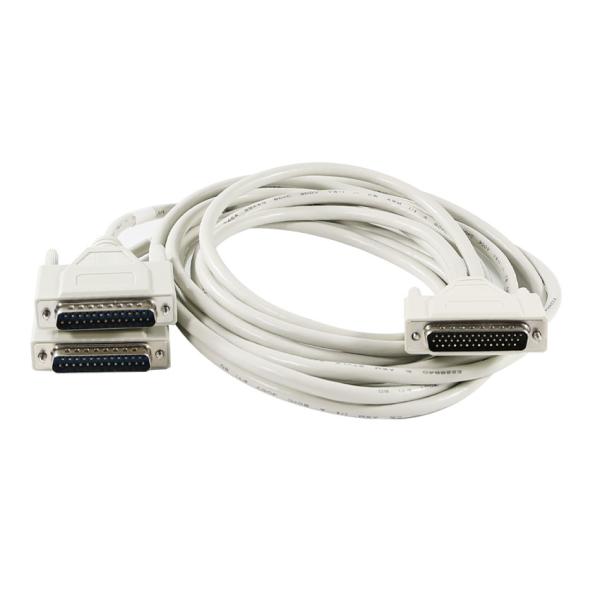

This DB44 to Dual DB25 Male Splitter Cable is designed to split high-density DB44 signal outputs into two standard DB25 connectors. It is widely used in CNC motion control systems, industrial I/O interfaces, and multi-axis breakout boards. The cable offers stable and secure signal routing for simultaneous device connections.

Key Specs

  • DB44 Male to 2 × DB25 Male – Enables dual-device connection from one port

  • Parallel or Custom Pinout Wiring – Suitable for CNC, I/O breakout, and automation

  • Rugged Molded Connectors – With strain relief and thumbscrews for firm installation

  • Flexible Lengths – Ready for control cabinets, desktop setups, or panel routing

  • Shielded Cable – Ensures signal integrity and EMI protection

Color & Size Options

  • Color Options: Black / Beige / OEM Custom

  • Cable Lengths: 1m / 1.5m / 3m / 5m / Others on request

  • Connector Housing: DB44 Male to Dual DB25 Female

  • Packaging: PE bag / Ziplock / Retail box (customizable)

Product Features

  • Dual Output from One DB44 Source

  • Plug-and-play with CNC motion cards, printer ports, or signal breakout modules

  • Thumbscrews for tool-free secure connection

  • Low-signal-loss transmission for industrial environments

  • Heavy-duty molded build suitable for embedded applications

Compatible Devices

  • CNC Controller Boards (e.g. Motion Axis Controllers)

  • Industrial Breakout Boxes

  • Custom RS232/TTL Interfaces

  • Stepper Motor Drivers (DB25 Interface)

  • I/O Expansion Modules with Parallel Control Ports

Ensure your DB44 and DB25 ports follow standard signal mapping or request custom pinout if needed.

Safety Information


  • For signal use only; not rated for power transmission

  • Do not plug into non-standard ports without confirming wiring

  • Avoid cable stress or twisting during installation

  • Store in dry, anti-static environment

  • Contact us for custom length or pinout service if needed
