Technical Specifications

Product Introduction

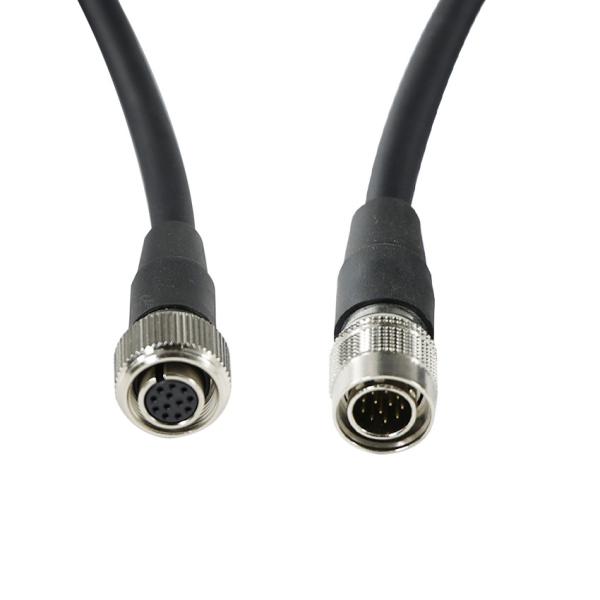

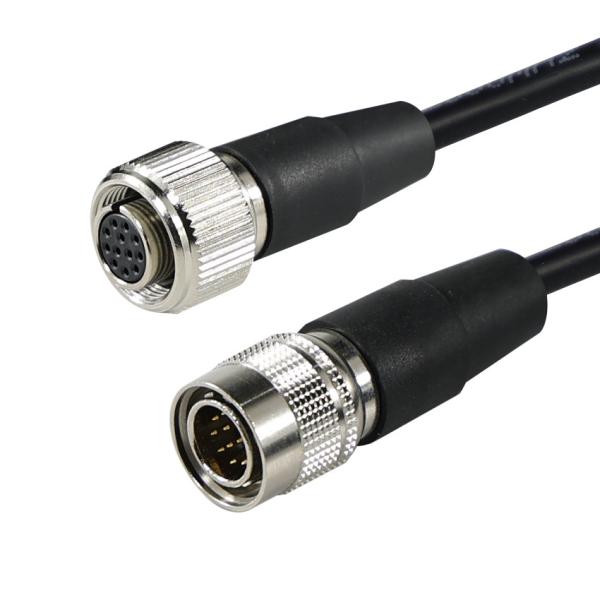

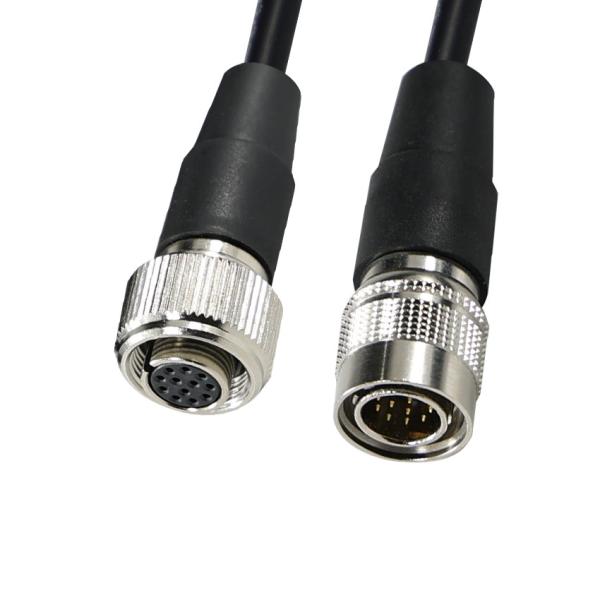

This 12-Pin Male to Female Circular Aviation Plug Cable is a rugged signal extension solution ideal for industrial automation systems, sensor integration, and multi-wire control interfaces. Its circular structure ensures secure mating, while optional shielding protects against EMI for consistent signal transmission in harsh environments.

Key Specs

• 12-Pin Circular Aviation Interface – Strong locking connection for vibration resistance

• Male to Female Configuration – Used for signal extension or device-to-controller interface

• Shielded Cable Options – Helps maintain signal clarity in electrical noise environments

• Durable PVC or PU Jacket – Flame-retardant and flexible

• Secure Threaded Locking – Prevents accidental disconnection

Color & Size Options

• Cable Colors: Black / Gray / Custom

• Connector Options: Straight / Right-Angle / Metal Shell / Plastic Shell

• Cable Lengths: 0.5m / 1m / 2m / 3m / OEM

• Pin Layout: 2 / 4 / 5 / 6 / 8 / 9 / 12 / 16 / 24 Pins Customizable

Product Features

• High-density pin layout for multi-signal routing

• Resistant to oil, vibration, and abrasion

• Widely used in CNC machines, automation controllers, LED displays

• Custom wiring options for specific signal mapping

• Supports solder, crimp, or PCB-mount contacts on demand

Compatible Applications

• Industrial Control Panels

• CNC Equipment / Servo Motor Feedback

• LED Display Systems

• Robotics and Motion Control

• Security Systems

• Aviation / Railway Equipment Wiring

Not for high-voltage power applications. Designed for signal and low-voltage control lines.

Safety & Handling Instructions

• Ensure secure locking before powering on connected devices

• Match pin layout exactly to avoid miswiring

• Do not force connectors into mismatched sockets

• Avoid prolonged exposure to corrosive environments

• Store coiled in a dry place to extend service life
