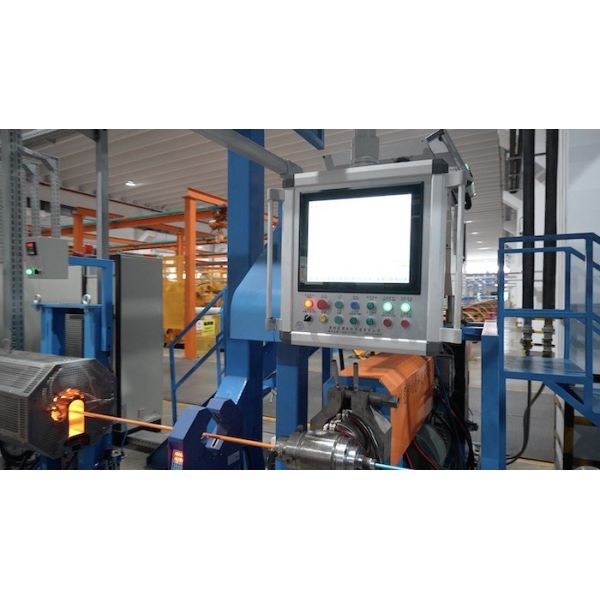

5-15mm Inlet Specification 6-18mm Finished Outer Diameter Silicone Wire Insulation Extrusion Line with Max100m/min Line Speed
5-15mm Inlet Specification 6-18mm Finished Outer Diameter Silicone Wire Insulation Extrusion Line with Max100m/min Line Speed
Specifications
Inlet specification :
Φ0.6-Φ6mm Φ5-Φ15mm Φ8-Φ26mm
Drive power (kWAC) :
15 18.5 30
Finished outer diameter :
Φ1.3-Φ8mm Φ6-Φ18mm φ9-φ28mm
Insulation material :
Silicone Rubber
Conductor specification :
0.35-10mm2 16-120mm2 35-400mm2
Screw speed (rpm) :
50 40 40
Line speed :
Max100m/min
Aspect ratio (L/D) :
12:1
Extrusion volume :
100kg/h 280kg/h 400kg/h
Model Number :
EXT65 EXT90 EXT120
Name :
Silicone Wire Insulation/Sheath Extrusion Line
Keyword :
Wire Insulation Line
Place of Origin :
China
Brand Name :
Kunbo
MOQ :
1
Packaging Details :
Different packaging methods are adopted according to different modes of transport.
Payment Terms :
L/C,T/T,D/P,D/A
Application :
extrusion of silicone wires and cables
Description
5-15mm Inlet Specification Wire And Cable Extrusion 6-18mm Finished Outer Diameter
Silicone Wire Insulation/Sheath Extrusion Line 80m/min

This comprehensive guide explains cable extrusion technology for both industry professionals and newcomers. We cover the fundamentals of how cable extrusion works, the materials used in the process, and key considerations when selecting an appropriate extrusion line.

Silicone rubber cables feature excellent high temperature resistance, cold resistance, acid and alkali resistance, corrosion resistance, and waterproof properties. The cable structure is flexible for easy installation, with stable electrical performance in extreme temperatures (-60℃ to 180℃). These cables offer outstanding anti-aging performance and long service life, making them ideal for metallurgy, power generation, petrochemical, electronics, and automotive manufacturing industries.

Application

Primarily used for extrusion production of various high-temperature silicone wires, cables, and silicone pipes.

Features
  • KB 2.0 intelligent control system, 19-inch industrial control screen, and S7-1200PLC
  • Complete set of online detection instruments for automatic process control
  • Conductor preheating, head vacuuming, three-stage infrared heating for rapid shaping
  • Uniform post-air heating and automatic vulcanization furnace lifting
  • Prevents air pockets in silicone rubber cable extrusion and sulfur deficiency during startup/shutdown
  • Comprehensive process formula management ensures product consistency and standardized production
  • Minimizes dependence on manual operation
Specifications
Parameter EXT65 EXT90 EXT120
Conductor Specification 0.35-10mm² 16-120mm² 35-400mm²
Inlet Specification Φ0.6-Φ6mm Φ5-Φ15mm Φ8-Φ26mm
Finished Outer Diameter Φ1.3-Φ8mm Φ6-Φ18mm φ9-φ28mm
Screw Speed (rpm) 50 40 40
Aspect Ratio (L/D) 12:1
Drive Power (kW AC) 15 18.5 30
Insulation Material Silicone Rubber
Extrusion Volume 100kg/h 280kg/h 400kg/h
Line Speed Max 100m/min Max 100m/min Max 100m/min
