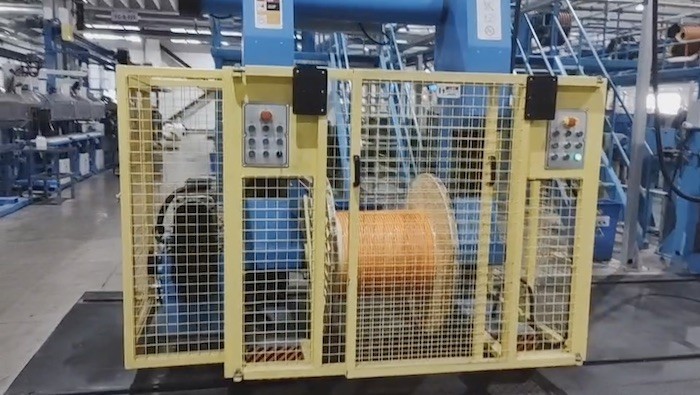

High-Speed 110m/min Cable Extrusion Line for φ2.5mm-φ25mm PVC TPE TPU XLPE Wires
High-Speed 110m/min Cable Extrusion Line for φ2.5mm-φ25mm PVC TPE TPU XLPE Wires
Specifications
Application :
PVC, TPE, TPU, XLPO
Keyword :
Cable Extrusion Line
Maximum line speed :
Max 110m/min
Main machine specifications :
φ80mm, φ90mm, φ120mm;
Design speed :
80m/min
Finished outer diameter :
φ2.5mm-φ25mm
Applicable conductor core wire diameter :
φ1.5mm-φ20mm
Place of Origin :
China
Brand Name :
Kunbo
MOQ :
1
Packaging Details :
Different packaging methods are adopted according to different modes of transport.
Payment Terms :
L/C,T/T,D/P,D/A
screw L/D :
25/26:1
Name :
High-Speed 110m/min Cable Extrusion Line for φ2.5mm-φ25mm PVC TPE TPU XLPE Wires
Description
High-Speed 110m/min Cable Extrusion Line for φ2.5mm-φ25mm PVC TPE TPU XLPE Wires
Photovoltaic Wire String Extrusion One-Step Extrusion Production Line 200m/min
Industrial Wire Products
We are committed to providing the highest quality industrial products at the most competitive prices possible. This drives us to support our customers and the wire industry with unsurpassed standards of service and reliability.
EV Cable Applications
EV cables (electric vehicle high-voltage cables) are the core "blood vessels" of electric vehicle energy transmission, responsible for safely and efficiently transmitting high-current electrical energy between high-voltage batteries, drive motors, power electronic equipment (such as inverters, DC-DC converters) and charging interfaces. Their design is fundamentally different from ordinary automotive low-voltage cables and must meet stringent electrical, mechanical and environmental requirements.
Applications
  • Suitable for extrusion of insulation/sheath of PVC, TPE, TPU, XLPE, etc.
Main Process Parameters
  • Extrusion materials: PVC, TPE, TPU, XLPE
  • Main machine specifications: φ80mm, φ90mm, φ120mm
  • Applicable conductor core wire diameter: φ1.5mm-φ20mm
  • Finished outer diameter: φ2.5mm-φ25mm
  • Maximum line speed: Max 110m/min
  • Aspect ratio (L/D): 25/26:1
  • Barrel temperature control area: 5, 5, 6 (depending on model)
Adaptation Parameters by Model
Screw Specification (mm) φ80 φ90 φ120
Maximum Screw Speed (rpm) 90 90 80
PVC Output (kg/h) 280 360 500
XLPE Output (kg/h) 150 180 250
Drive Power (kW AC) 75 90 160
