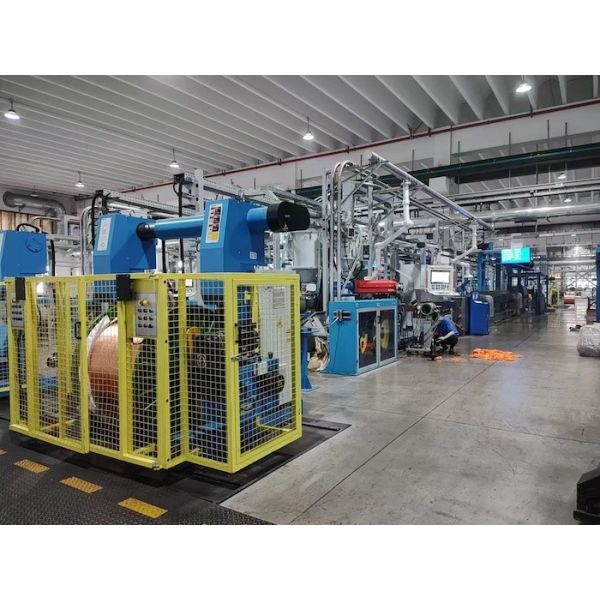

High-Speed Cable Extrusion Line with φ1.5mm-φ20mm Core Wire Diameter and Max 110m/min Speed for PVC, TPE, TPU, XLPE
High-Speed Cable Extrusion Line with φ1.5mm-φ20mm Core Wire Diameter and Max 110m/min Speed for PVC, TPE, TPU, XLPE
Specifications
Maximum line speed :
Max 110m/min
Design speed :
80m/min
Keyword :
Cable Extrusion Line
Applicable conductor core wire diameter :
φ1.5mm-φ20mm
screw L/D :
25/26:1
Finished outer diameter :
φ2.5mm-φ25mm
Name :
High-Speed Cable Extrusion Line with φ1.5mm-φ20mm Core Wire Diameter and Max 110m/min Speed for PVC, TPE, TPU, XLPE
Application :
PVC, TPE, TPU, XLPE
Place of Origin :
China
Brand Name :
Kunbo
MOQ :
1
Packaging Details :
Different packaging methods are adopted according to different modes of transport.
Payment Terms :
L/C,T/T,D/P,D/A
Main machine specifications :
φ80mm, φ90mm, φ120mm;
Description
High-Speed Cable Extrusion Line with φ1.5mm-φ20mm Core Wire Diameter and Max 110m/min Speed for PVC, TPE, TPU, XLPE
Photovoltaic Wire String Extrusion One-Step Extrusion Production Line 200m/min
Applications

This production line is primarily used for manufacturing PVC, PP, PE, SR-PVC and other plastic materials for various wire and cable applications including:

  • Automobile wire insulation and jacketing
  • Electrical wire and power cable insulation
  • Insulated sheathing for various cable types
  • PU and NYLON jacket applications
  • Low smoking non-halogen flame-resistant environmental building lines
Suitable for extrusion of insulation/sheath materials including PVC, TPE, TPU, XLPE, and other specialized compounds.

EV cables (electric vehicle high-voltage cables) serve as the core "blood vessels" of electric vehicle energy transmission, responsible for safely and efficiently transmitting high-current electrical energy between high-voltage batteries, drive motors, power electronic equipment (such as inverters, DC-DC converters) and charging interfaces. Their design is fundamentally different from ordinary automotive low-voltage cables and must meet stringent electrical, mechanical and environmental requirements.

Main Process Parameters
Extrusion materials: PVC, TPE, TPU, XLPE
Main machine specifications: φ80mm, φ90mm, φ120mm
Applicable conductor core wire diameter: φ1.5mm-φ20mm
Finished outer diameter: φ2.5mm-φ25mm
Maximum line speed: Max 110m/min
Model Adaptation Parameters
Screw specification (mm) φ80 φ90 φ120
Maximum screw speed (rpm) 90 90 80
PVC glue output (kg/h) 280 360 500
XLPE glue output (kg/h) 150 180 250
Aspect ratio (L/D) 25/26:1
Drive power (kWAC) 75 90 160
Barrel temperature control area 5 5 6
