High Temperature PTFE Extrusion Machine with Max 200m/min Speed and φ0.05mm-φ12mm Range
High Temperature PTFE Extrusion Machine with Max 200m/min Speed and φ0.05mm-φ12mm Range
Specifications
Finished outer diameter :
φ0.05mm-φ12mm
Keyword :
PTFE Extrusion Machine
Application :
extrusion of fluoroplastic mater ials such as FEP,FPA,ETFE,etc
Extrusion material :
PTFE (polytetrafluoroethylene), FEP (fluorinated ethylene propylene), PFA (perfluoroalkoxy resin)
Maximum line speed :
Max 200m/min
Applicable conductor core wire diameter :
φ0.03mm-φ10.0mm
Main machine specifications :
φ20mm, φ35mm, 50mm
Name :
High Temperature PTFE Extrusion Machine with Max 200m/min Speed and φ0.05mm-φ12mm Range
Place of Origin :
China
Brand Name :
Kunbo
MOQ :
1
Packaging Details :
Different packaging methods are adopted according to different modes of transport.
Payment Terms :
L/C,T/T,D/P,D/A
Design speed :
customized
Description
High Temperature PTFE Extrusion Machine with Max 200m/min Speed and φ0.05mm-φ12mm Range
Product Overview

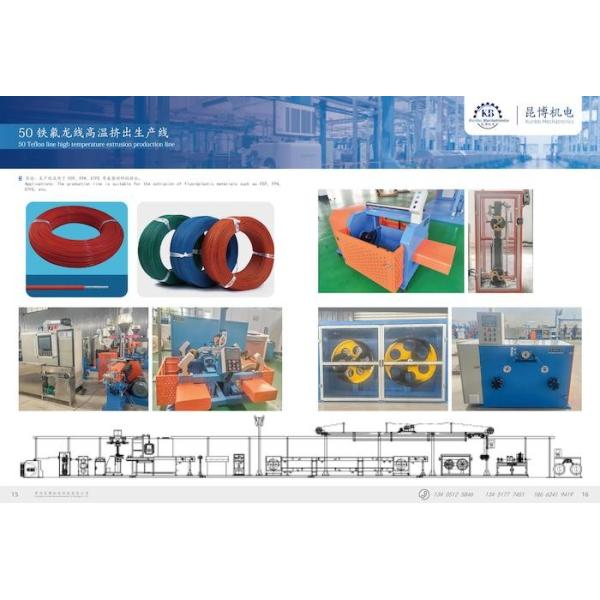

Teflon Line High Temperature Extrusion Production Line designed for fluoroplastic insulation and sheath applications.

Teflon cables are widely used in aerospace, national defense, biomedicine, energy and heavy industry, semiconductors, new energy vehicles, industrial robots and other fields. Teflon cables are the ultimate solution for extreme working conditions. They are wear-resistant, radiation-resistant, corrosion-resistant, and crack-resistant.
Applications

Suitable for extrusion of fluoroplastic insulation/sheath.

Technical Specifications
  • Extrusion material: PTFE (polytetrafluoroethylene), FEP (fluorinated ethylene propylene), PFA (perfluoroalkoxy resin)
  • Main machine specifications: φ20mm, φ35mm, 50mm
  • Applicable conductor core wire diameter: φ0.03mm-φ10.0mm
  • Finished outer diameter: φ0.05mm-φ12mm
  • Maximum line speed: Max 200m/min
Model Specifications
Model Adaptable Conductor Finished Outer Diameter (mm) Extrusion Volume (kg/h) Line Speed (m/min)
EXF20 AVG42-28 0.18-0.7 8 200
EXF35 AVG36-16 0.3-1.5 15 200
EXF50 AVG26-10 1.0-5.0 25 200
