Belt Type Tension Haul-off Machine with Dual Belt Traction, Pneumatic Clamping, and Magnetic Powder Tension Regulation for Wire Extrusion
Belt Type Tension Haul-off Machine with Dual Belt Traction, Pneumatic Clamping, and Magnetic Powder Tension Regulation for Wire Extrusion
Belt Type Tension Haul-off Machine with Dual Belt Traction, Pneumatic Clamping, and Magnetic Powder Tension Regulation for Wire Extrusion
Belt Type Tension Haul-off Machine with Dual Belt Traction, Pneumatic Clamping, and Magnetic Powder Tension Regulation for Wire Extrusion
Belt Type Tension Haul-off Machine with Dual Belt Traction, Pneumatic Clamping, and Magnetic Powder Tension Regulation for Wire Extrusion
Belt Type Tension Haul-off Machine with Dual Belt Traction, Pneumatic Clamping, and Magnetic Powder Tension Regulation for Wire Extrusion
Belt Type Tension Haul-off Machine with Dual Belt Traction, Pneumatic Clamping, and Magnetic Powder Tension Regulation for Wire Extrusion
Belt Type Tension Haul-off Machine with Dual Belt Traction, Pneumatic Clamping, and Magnetic Powder Tension Regulation for Wire Extrusion
Specifications
Belt Contact Length :
900 mm/1200 mm/1500 mm/1800 mm/2100 mm
Packaging Details :
Different packaging methods are adopted according to different modes of transport.
Belt Width :
90 mm/120 mm/130 mm
Keyword :
Haul Off Machine
Place of Origin :
China
Name :
Belt Type Tension Haul-off Machine
Brand Name :
Kunbo
Traction Force :
500 kg/800 kg/1250 kg/1600 kg/2000 kg
MOQ :
1
Applicable Cable Diameter :
Max. 30 mm/Max. 70 mm/Max. 100 mm
Payment Terms :
L/C,D/A,D/P,T/T
Description

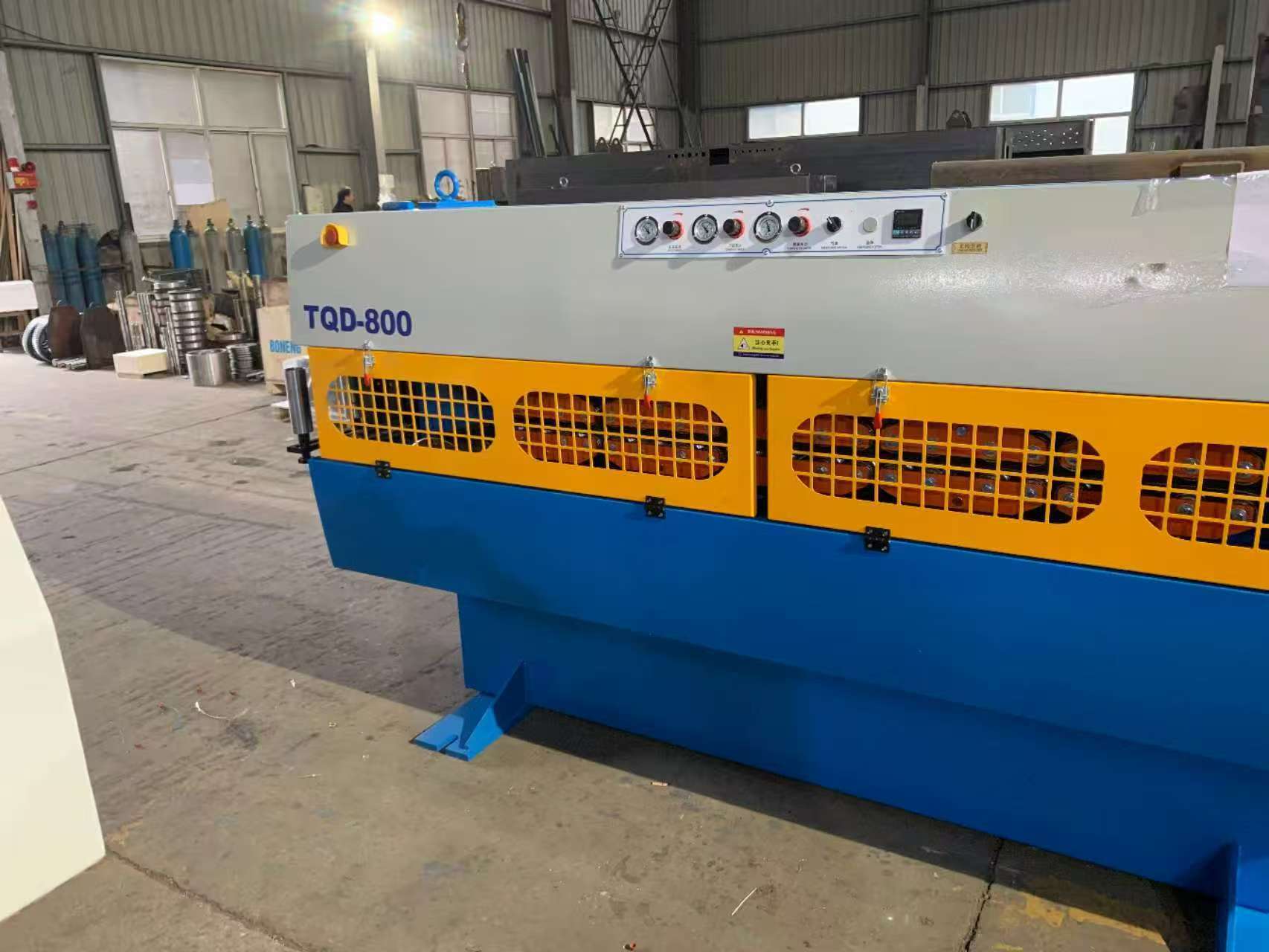

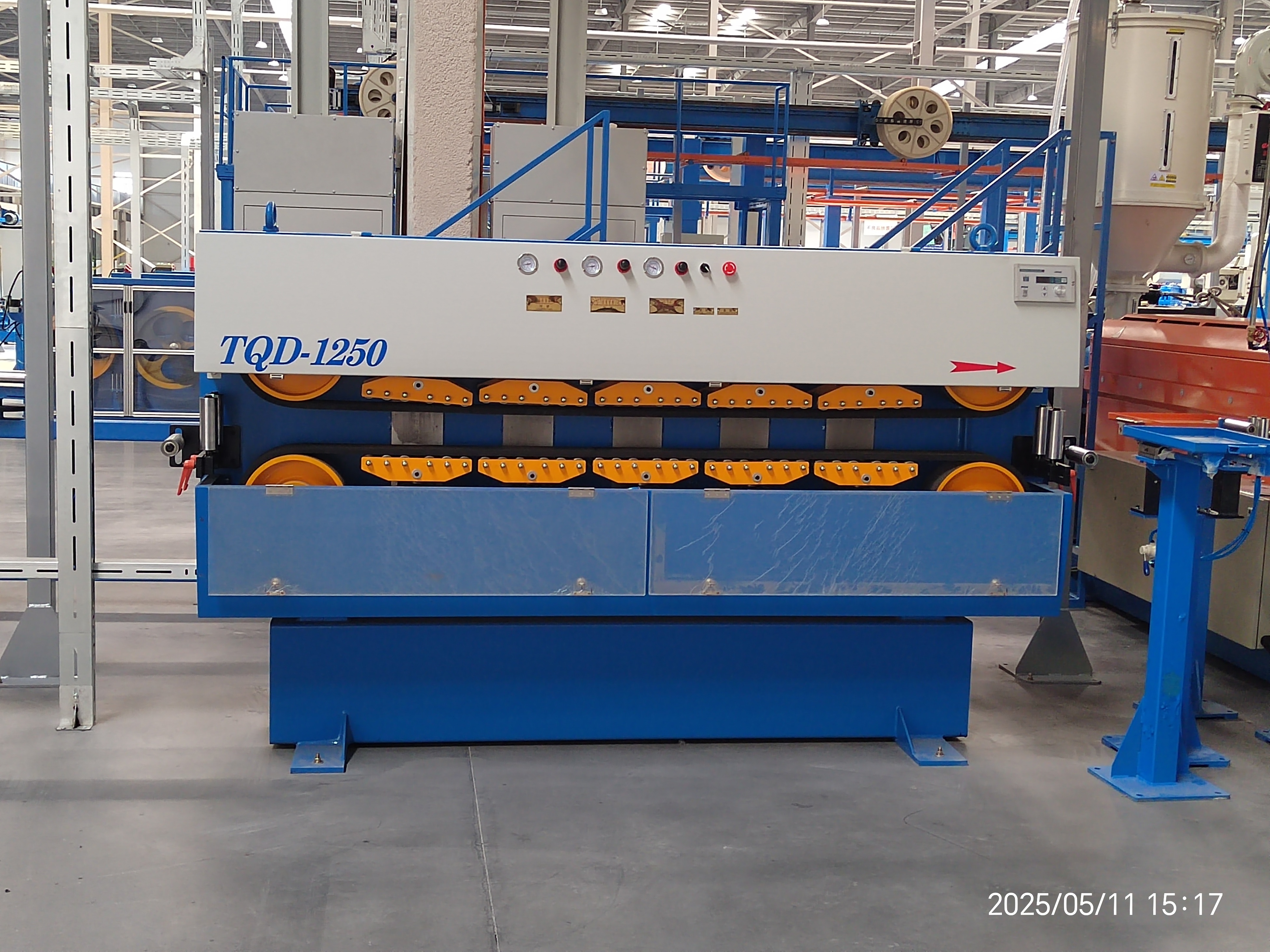

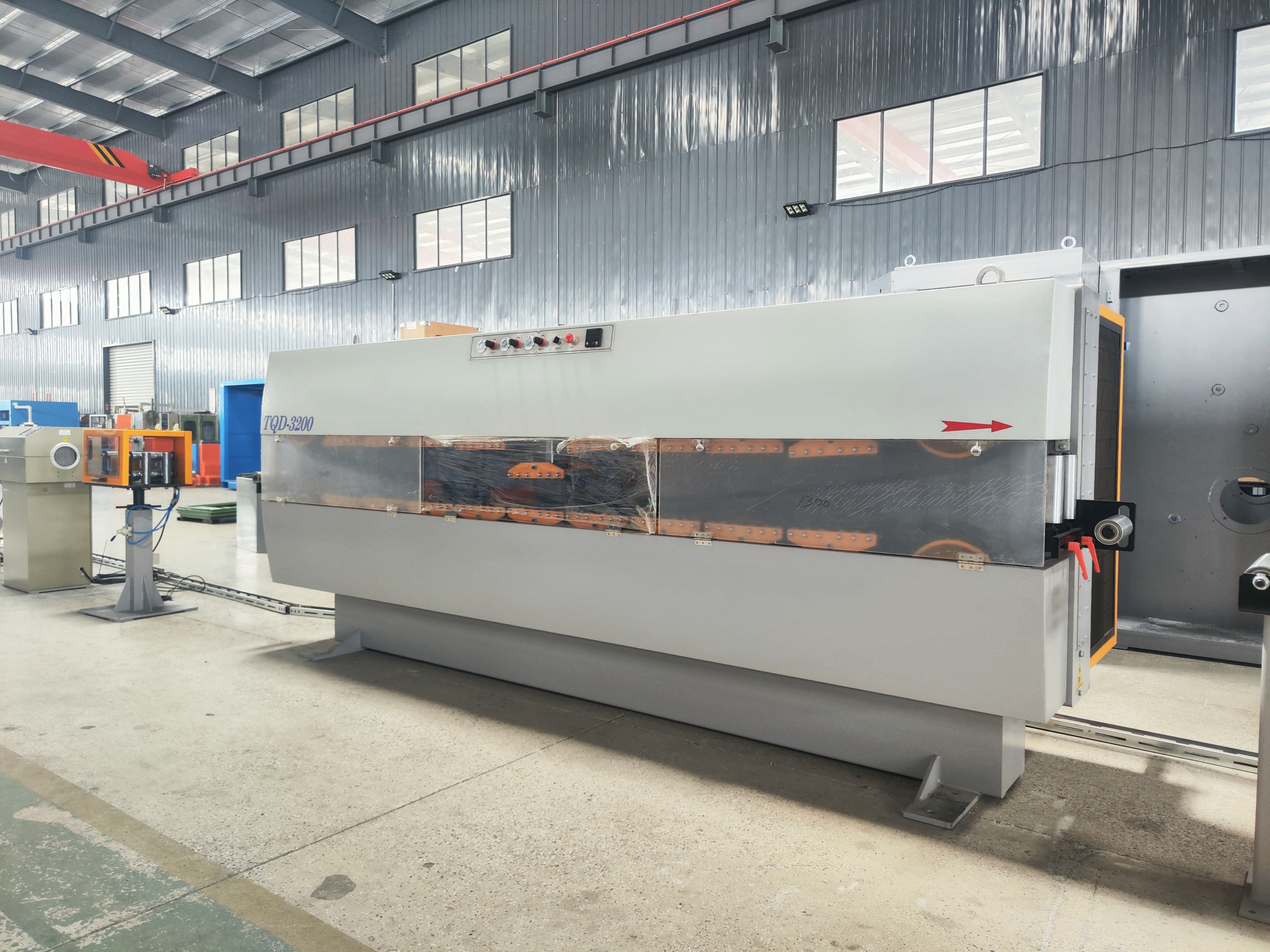

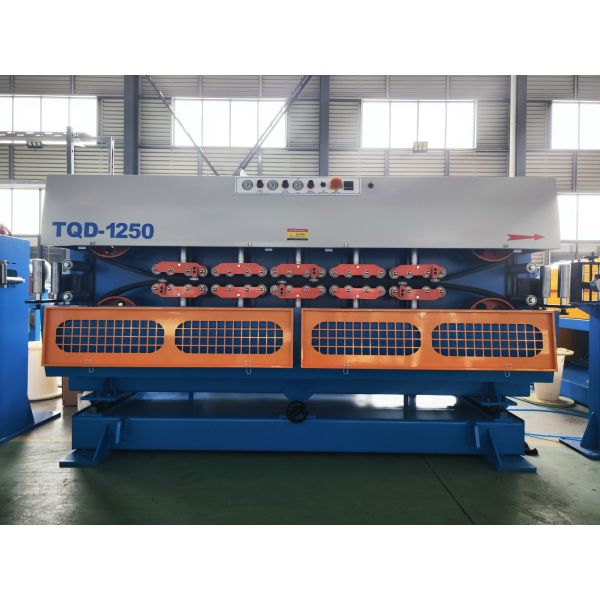

Belt Type Tension Haul-off Machine

The Belt Type Tension Haul-off Machine is engineered for wire and cable extrusion lines to deliver stable traction force and precise tension control during cable conveying. Featuring a dual belt traction structure with pneumatic clamping and magnetic powder tension regulation, this machine ensures smooth cable movement, uniform pulling force, and reliable production performance for medium and large diameter cable extrusion applications.

Technical Specifications
Model 500 Belt Type Tension Haul-off Machine 800 Belt Type Tension Haul-off Machine 1250 Belt Type Tension Haul-off Machine 1600 Belt Type Tension Haul-off Machine 2000 Belt Type Tension Haul-off Machine
Traction Force 500 kg 800 kg 1250 kg 1600 kg 2000 kg
Applicable Cable Diameter Max. 30 mm Max. 70 mm Max. 100 mm Max. 100 mm Max. 100 mm
Belt Contact Length 900 mm 1200 mm 1500 mm 1800 mm 2100 mm
Belt Width 90 mm 90 mm 120 mm 120 mm 130 mm
Pneumatic Clamping Cylinders 3 pairs 4 pairs 5 pairs 6 pairs 7 pairs
Magnetic Powder Brake Capacity 10 kg 10 kg 20 kg 20 kg 20 kg
Approx. Dimensions (L × W × H) 1860×750×1580 mm 2400×900×1580 mm 2860×980×1680 mm 3260×980×1680 mm 3400×980×1680 mm
