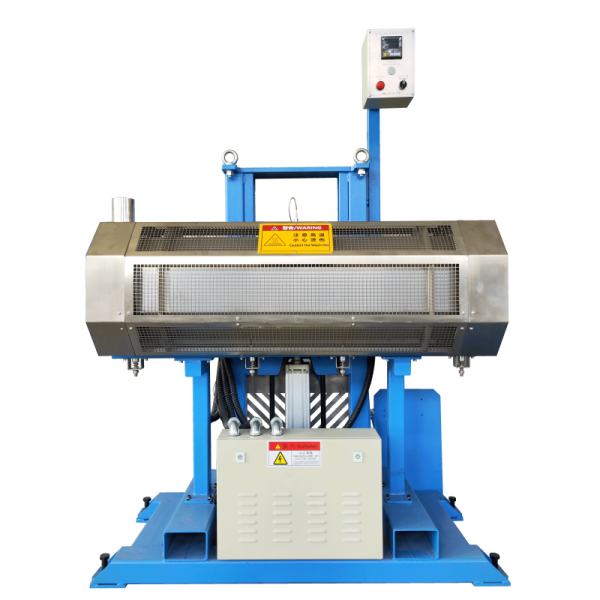

1-Meter Infrared Vulcanizing Oven with Pneumatically Liftable Heating Chamber for Efficient Cable Curing
1-Meter Infrared Vulcanizing Oven with Pneumatically Liftable Heating Chamber for Efficient Cable Curing
1-Meter Infrared Vulcanizing Oven with Pneumatically Liftable Heating Chamber for Efficient Cable Curing
1-Meter Infrared Vulcanizing Oven with Pneumatically Liftable Heating Chamber for Efficient Cable Curing
Specifications
Heating Element :
U-shaped infrared heating tubes
Maximum Chamber Temperature :
800°C
Ketword :
Vulcanizing Oven
Place of Origin :
China
Heating Chamber Length :
1,000 mm
MOQ :
1
Temperature Control :
1 zone
Packaging Details :
Different packaging methods are adopted according to different modes of transport.
Name :
1-Meter Infrared Vulcanizing Oven
Brand Name :
Kunbo
Description
1-Meter Infrared Vulcanizing Oven
Product Overview

The 1-Meter Infrared Vulcanizing Oven is engineered for non-contact infrared heating and continuous vulcanization/curing of insulated wires and cables in extrusion production lines. Featuring a pneumatically liftable heating chamber and U-shaped infrared heating tubes with four-sided radiant heating arrangement, this oven ensures uniform and efficient heating performance.

The chamber can be conveniently raised for easy wire threading and lowered to the sealed position during operation, providing stable temperature control, efficient heat transfer, and reliable continuous production capabilities.

Technical Specifications
Specification Details
Equipment Type 1-Meter Infrared Vulcanizing Oven
Heating Method Non-contact infrared heating
Chamber Structure Liftable heating chamber
Heating Layout Four-sided surrounding radiant heating; 6 heating tubes arranged in diamond configuration
Heating Chamber Length 1,000 mm
Temperature Control 1 zone
Heating Element U-shaped infrared heating tubes
Maximum Chamber Temperature 800°C
Chamber Inner Surface High-temperature stainless steel
Total Heating Power 24 kW
Design Temperature Max. 850°C
Temperature Sensor Armored thermocouple, mounted on top of equipment
Insulation Material Ceramic fiber insulation
Center Height 1,000 mm
Heating Chamber Lifting Pneumatic lifting with sealing plate at bottom
Wire Threading Press lifting button to raise heating chamber; thread wire, then lower chamber to sealed position for heating
Overall Dimensions (L * W * H) Approx. 1,400 * 1,050 * 1,950 mm
Equipment Weight Approx. 800 kg
Key Features
  • Non-contact infrared heating technology
  • Pneumatically liftable heating chamber for easy operation
  • Four-sided radiant heating arrangement for uniform temperature distribution
  • U-shaped infrared heating tubes for efficient heat transfer
  • High-temperature stainless steel inner surface
  • Ceramic fiber insulation for optimal thermal efficiency
  • Stable temperature control with armored thermocouple
  • Designed for continuous vulcanization/curing processes
